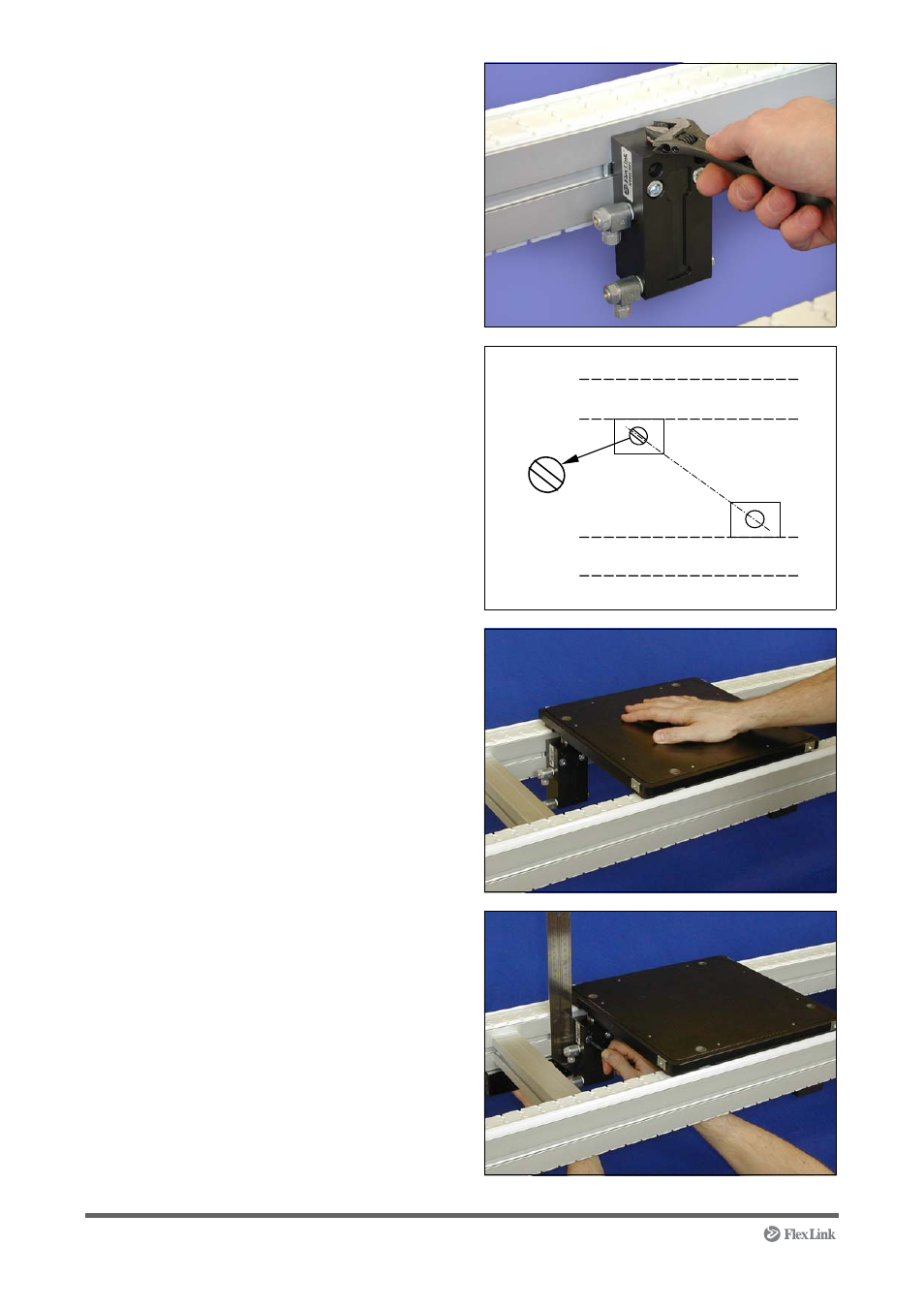

7 Use a adjustable wrench to turn the non-cylindri-
cal locating pin to a position according to step 8.
8 Locating pin position.
9 Place a pallet on top of the locating pins and
press the pallet down to the conveyor surface.
10 Tighten the two locating units to the conveyor
beams. Use a set-square to get the pistons in
line with the pallet bushings. Use the conveyor
beam as a reference.
