Mounting support module
Introduction
NOTE! Always place a support module near the
motor, where the weight is high.
CAUTION! A short conveyor, which has the point of
gravity near the motor, can easily cause the conveyor
to tilt.
If nothing else is specified the instruction steps are
valid for all support modules.
Tools
Instruction
Allen key 5 mm
Allen key 6 mm
Box wrench 13 mm
Box wrench 19 mm
Drilling-machine

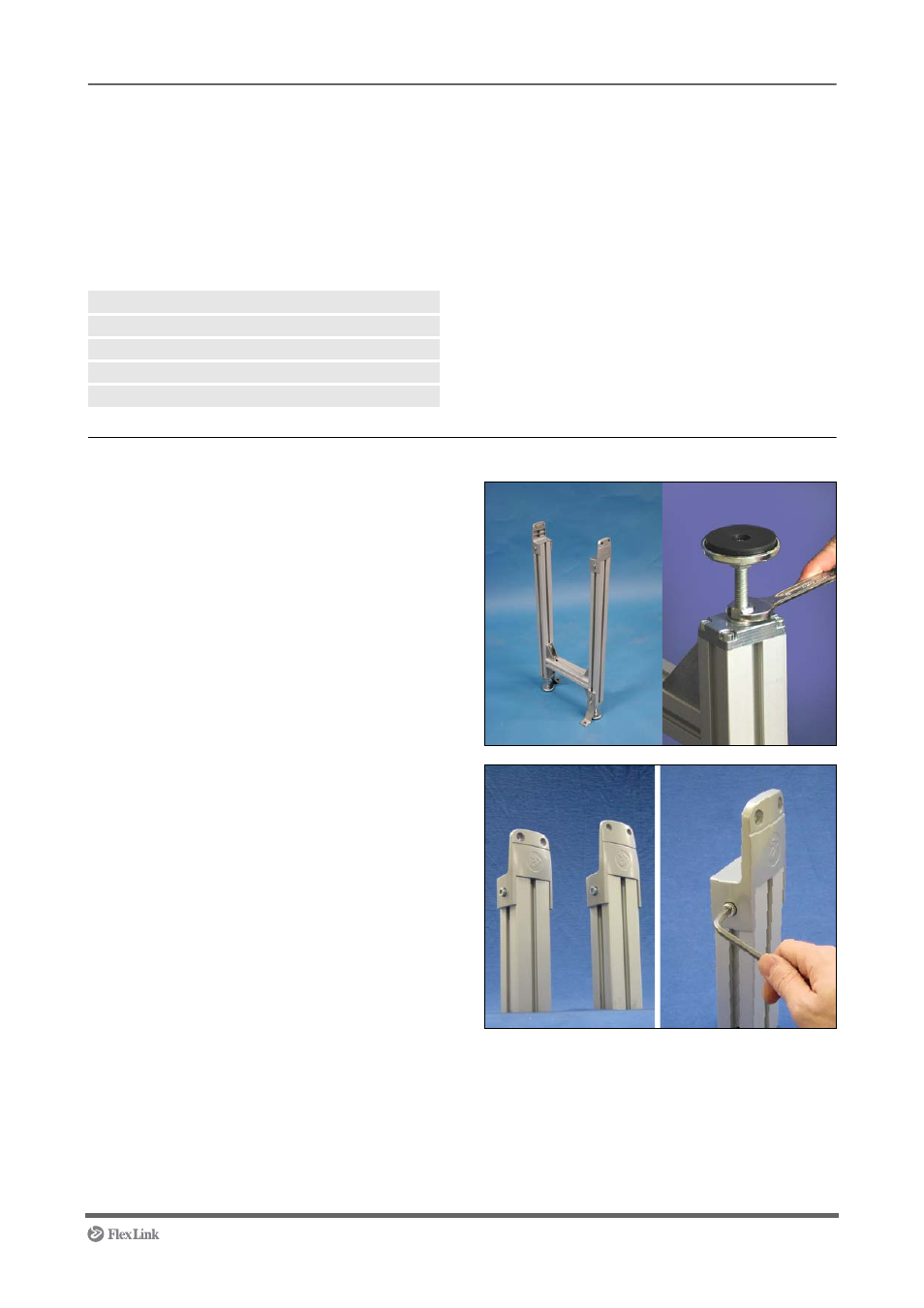

1 Place the support modules beside each other.
Make sure that the support modules has the
same height. If needed, adjust the feet. Use the
19 mm box wrench.
2 XTUF S01A/S02A/S03A
There are different brackets for fitting the support
module on to an XT or XT Compact conveyor.
The XT bracket is a little bit lower than the XT
Compact bracket and uses M8 screws instead of
M5.
Loosen the screws (2xM8) on one of the
brackets of the support module using a 6 mm
Allen key.
NOTE! If the support is made for more than one
conveyor loosen one bracket in a pair for each
conveyor.
XT
XT
Compact
