FlexLink XT (макс. 30 кг) Монтаж - Manual (Page 14)

14 5113235
Work station module T11 A

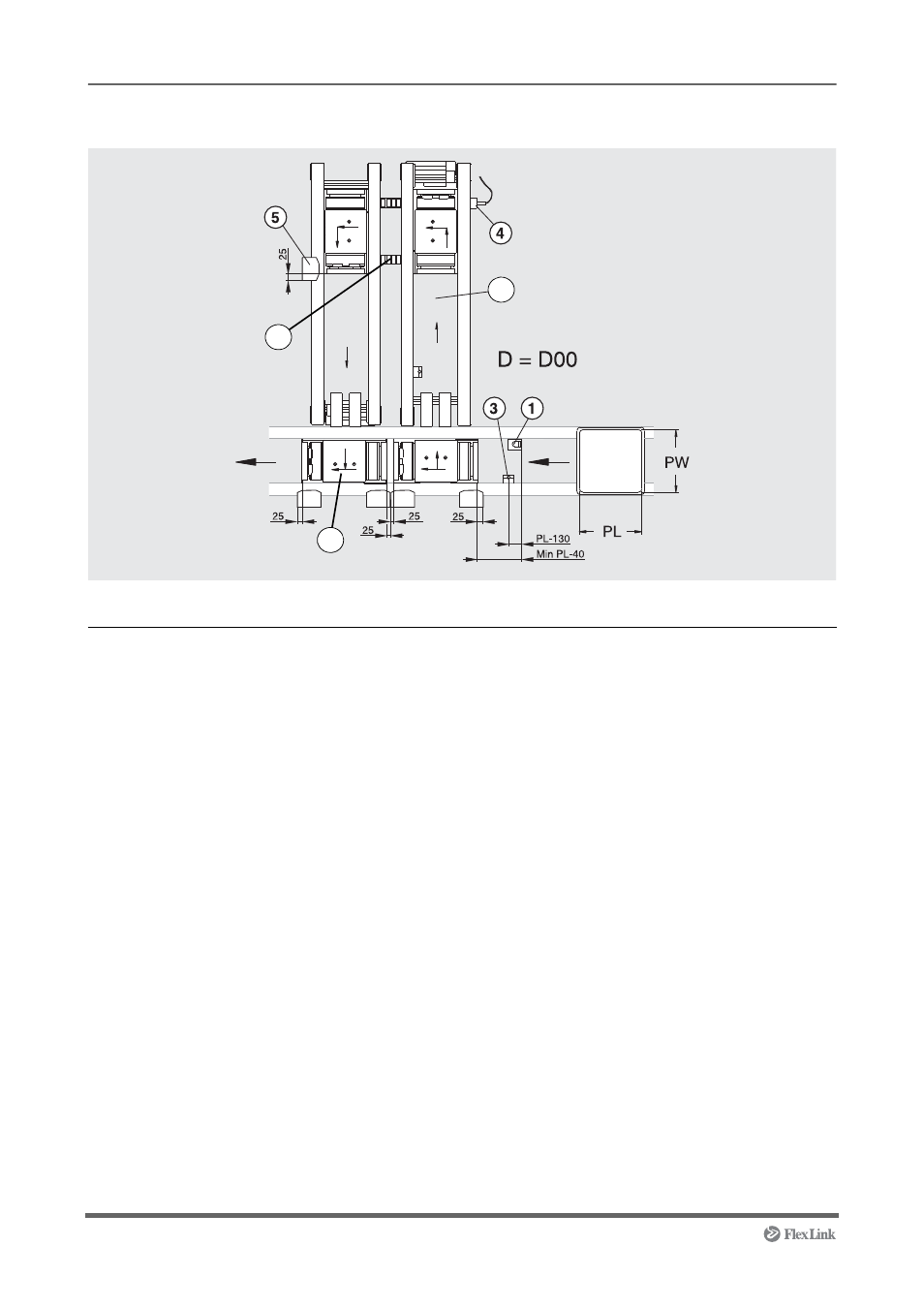

Overview
Pos Name Designation Instruction
1 Pallet stop device XTPD U200 See page 38
2 Sensor bracket (not in picture) XTPB V001 See page 43 (only for option Q01,
S01 & L01).
3 Sensor bracket XTPB V002 See page 45
4 Sensor bracket XTPB H001 See page 48
5 Position sensor XTPB V003 See page 46
6 Roller kit 5049865,
5050117 See page 50
7 Mounting connecting kit 5050034 See page 51
8 Mounting transfer unit XTPT See page 57
6
8
7
