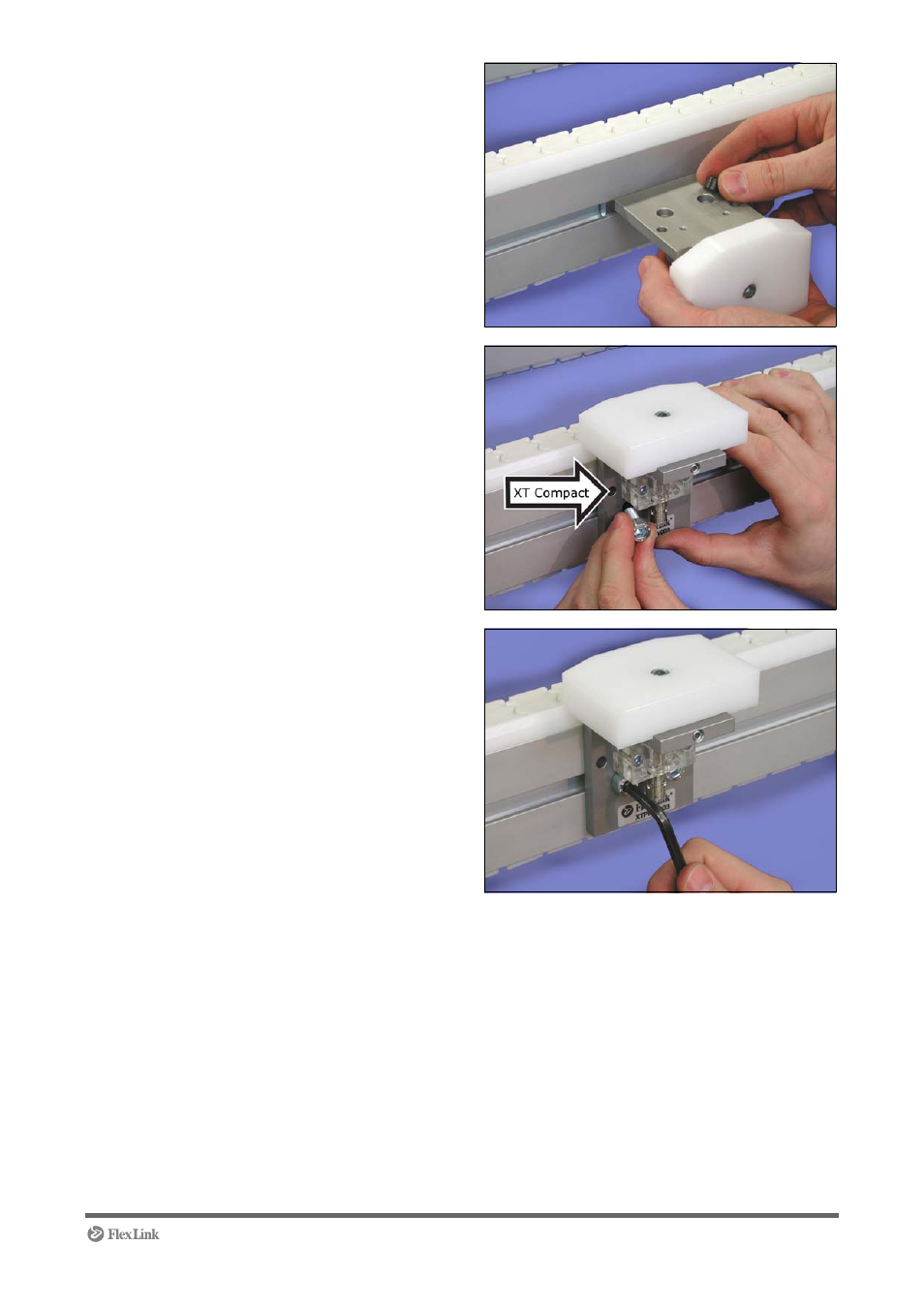

3 XT conveyor:
Insert the slot nuts (2 x M8) in the conveyor T-
slot. Mount the bushings to the sensor bracket.
XT Compact conveyor:
Insert the slot nuts (2 x M6) in the conveyor T-
slot.
4 XT conveyor:
Fit the screws (2 x M8).
XT Compact conveyor:
Fit the screws (2 x M6). The arrow shows the
upper holes for fitting on XT Compact conveyor.
5 XT conveyor:
Use the 6 mm Allen key to tighten the screws.
XT Compact conveyor:
Use the 5 mm Allen key to tighten the screws.
