Mounting damper CM 35
Introduction
Mount the damper outside of conveyor XT or XT
Compact.
Tools
Instruction
Box wrench 10 mm
Screwdriver

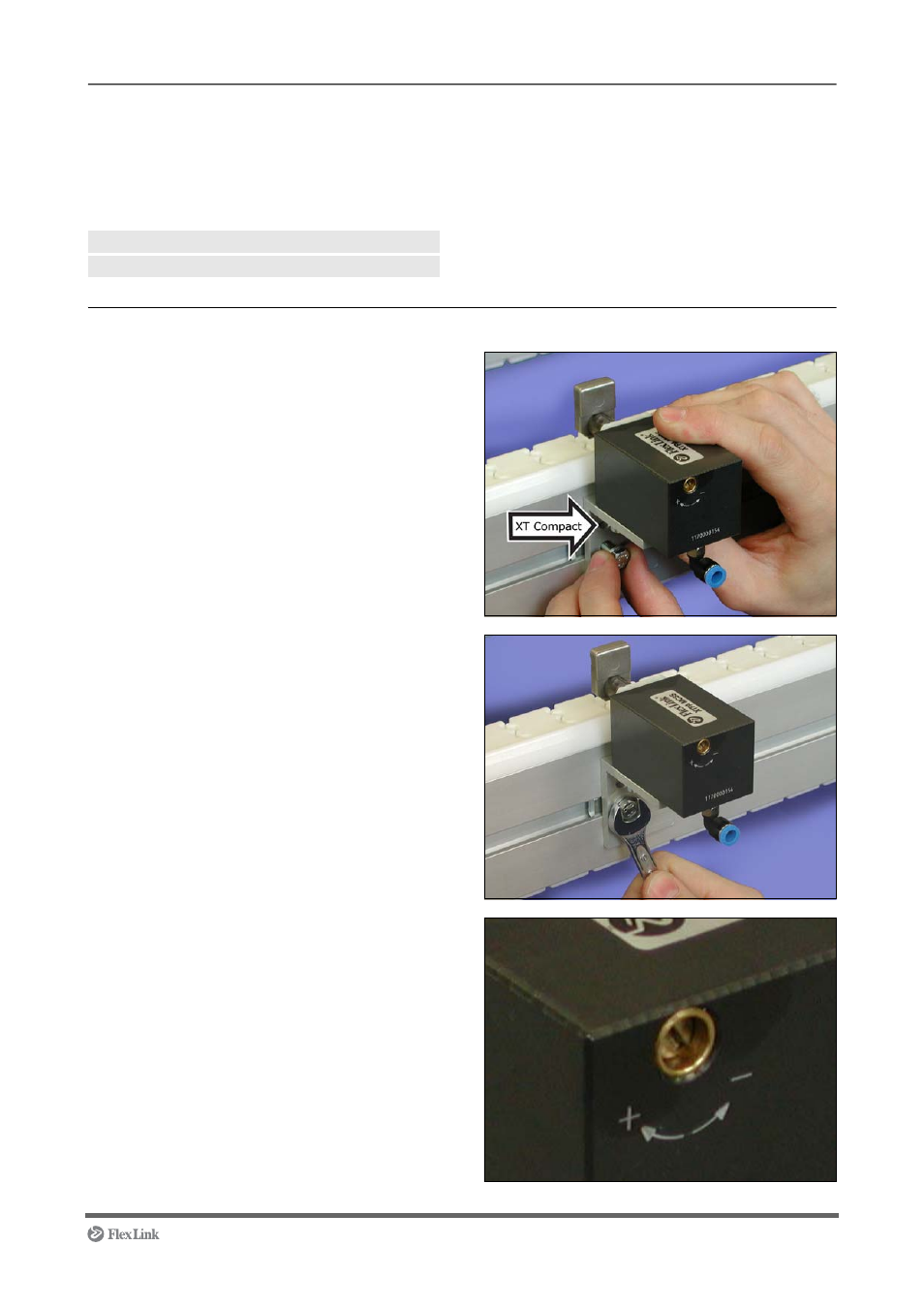

1 Insert the slot nuts (2 x M6) in the conveyor T-
slot. Fit the screws (2 x M6).
The arrow shows the upper holes for fitting on XT
Compact conveyor.
2 Tighten the screws. Use the 10 mm box wrench.
3 Pre adjust the damping screw according to the
following:
a) Turn the screw clockwise towards the “+” sign
until it reaches the end position. When you have
reached the end position turn it counter
clockwise 360° towards the “-” sign.
b) Fine adjust the damping when the system is
running. Turn the screw to the “+” sign to
increase the damping and to the “-” sign to
decrease the damping.
CAUTION! Heavy pallets in combination with an
over damped stop can damage the stop.
