FlexLink XT (макс. 30 кг) Монтаж - Manual (Page 7)

5113235 7
Stop function module P11

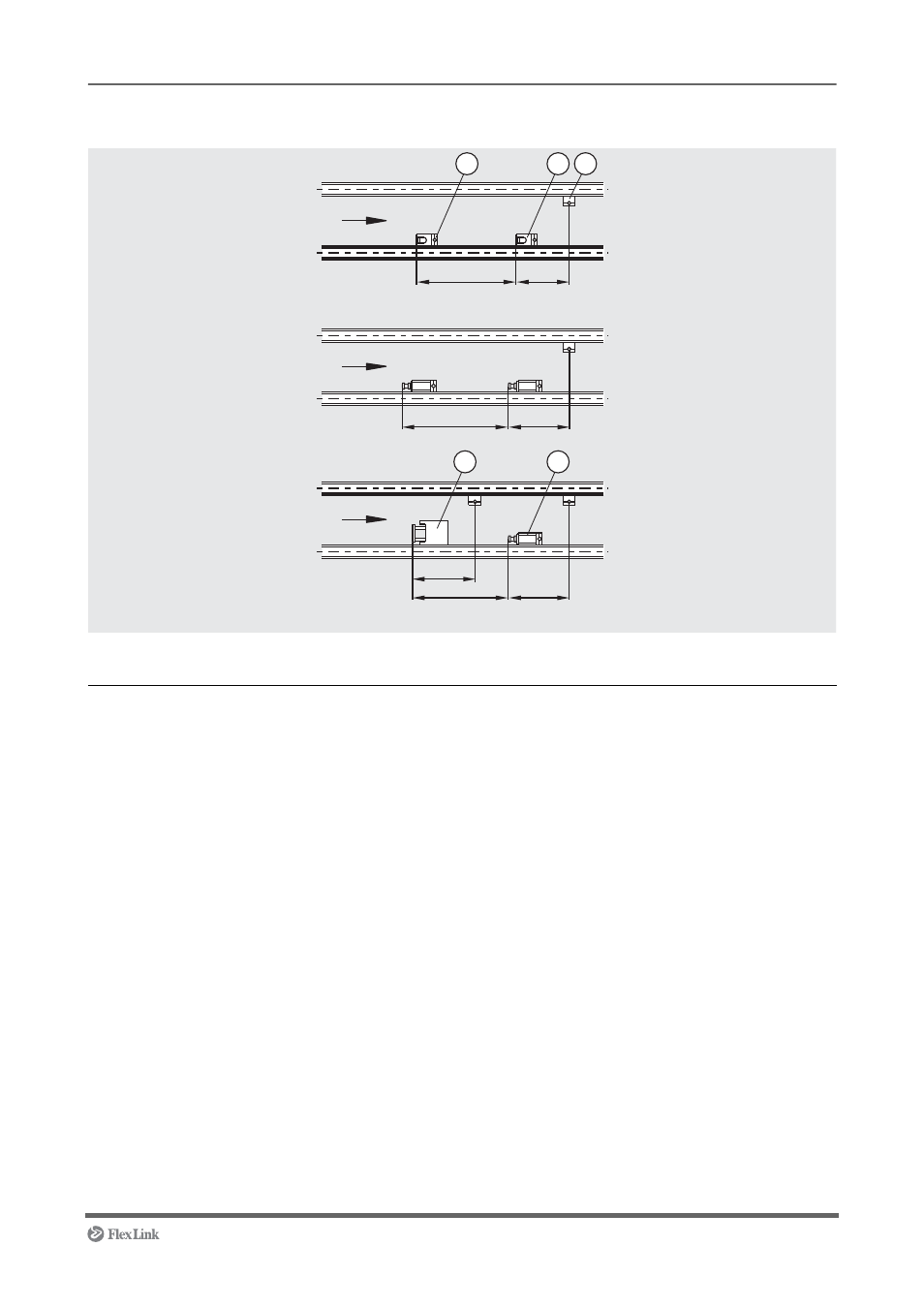

Overview
* With stop heel compressed
Pos Name Designation Instruction
1 Pallet stop device XTPD U200 See page 38
2 Pallet stop device damped XTPD D35 See page 40
3 Pallet stop device damped XTPD D100 See page 42
4 Sensor bracket XTPB V001 See page 43
5 Sensor bracket XTPB V002 See page 45
D = D00
D = D01
D = D02
PL-54
PL-54*
PL-54*
PL-54*
min PL+20
min PL+20*
min PL+20*
1 4
2 3
5
XTUS P11
