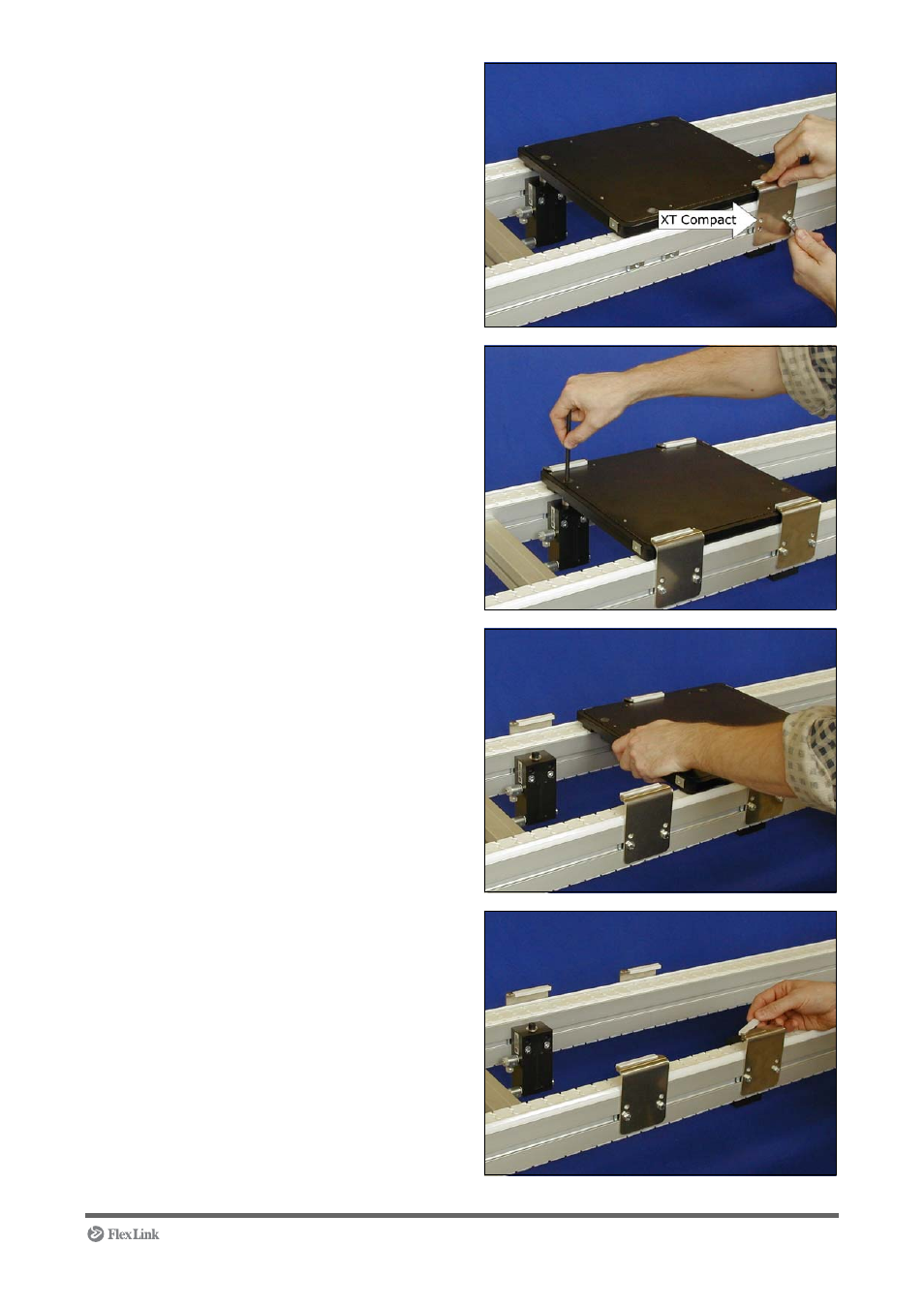

11 Mount the four brackets. To get the correct verti-
cal space between pallet and bracket use a piece
of slide rail (thickness approx. 2 mm) as a tempo-
rary distance piece at each bracket.
Press each bracket down towards the pallet
before tightening the screws. Use the 10 mm box
wrench.
The arrow shows the upper holes for fitting on XT
Compact conveyor.
12 When all brackets are mounted use the 6 mm
Allen key to gently press the two pistons down.
13 Remove the pallet.
14 Dismount the temporary distance pieces (slide
rails) from the brackets.
