68 5113235
Mounting lift and rotate unit XTUR P11
Introduction
If nothing else is specified the instruction steps are
valid for both XT and XT Compact conveyors. CAUTION! Running this module without enclosure
can cause personal injury.
Tools
Instruction
Allen key 4 mm
Allen key 5 mm
Allen key 6 mm
Box wrench 10 mm
Box wrench 19 mm
Box wrench 24 mm

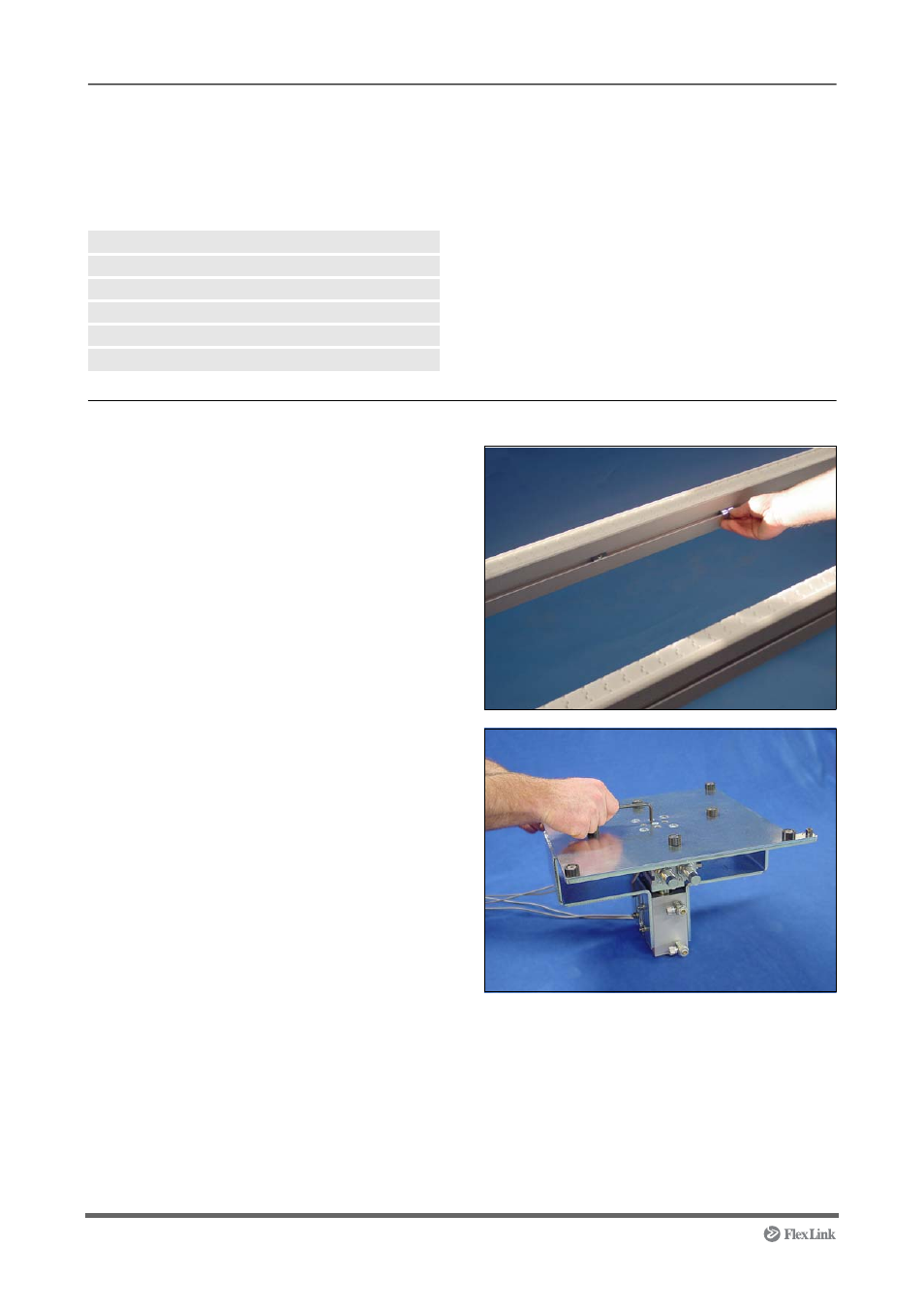

1 Insert the four M6 slot nuts into the conveyor T-
slot.
2 Loosen the four M6 screws holding the top plate
using the 5 mm Allen key. Remove the top plate.
