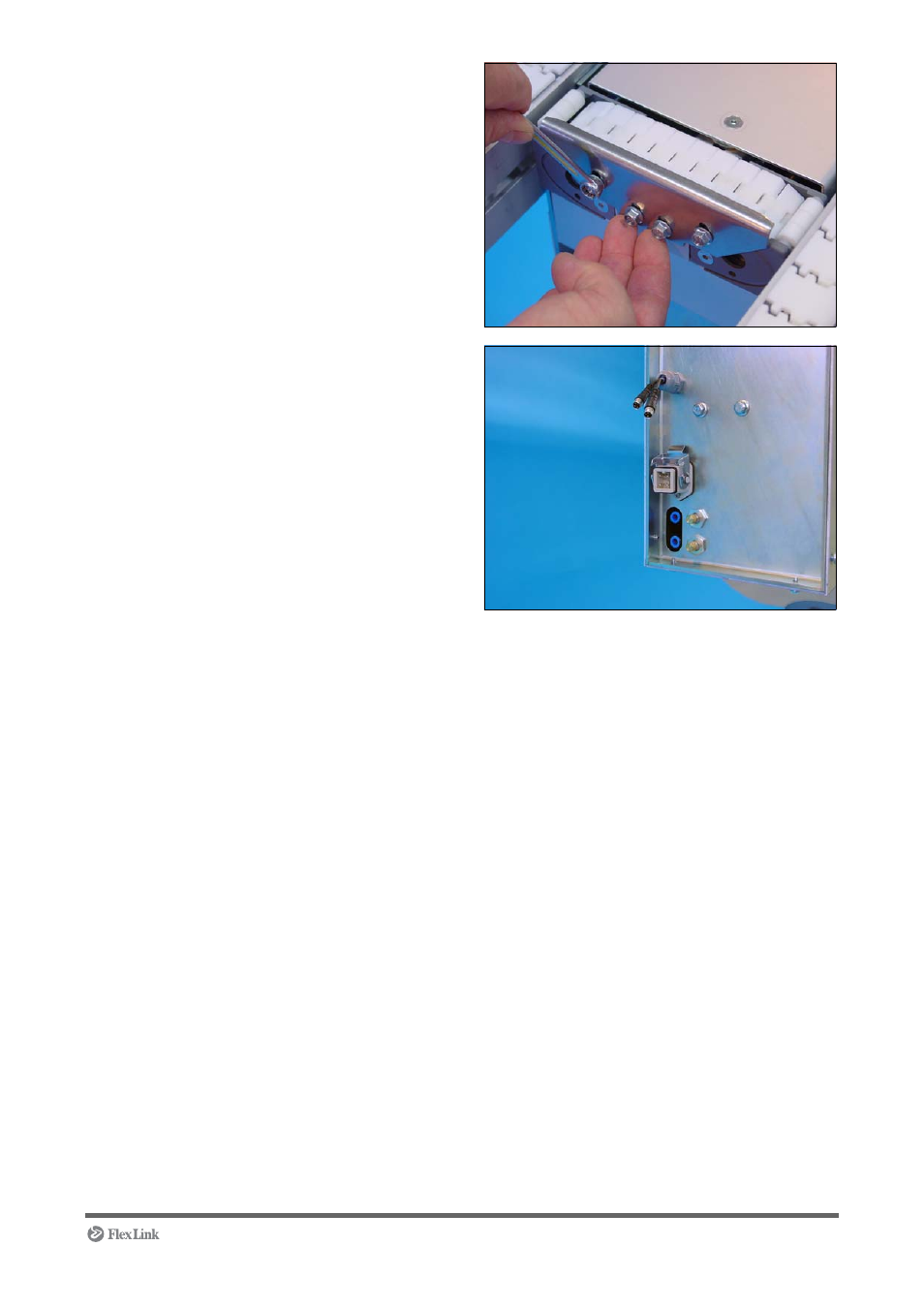

7 Check the pallet direction of travel. Loosen the
four screws (4 x M5) that hold the guide plate that
will act as a stop plate, lift the plate to its top posi-
tion and tighten the screws. Use the 8 mm box
wrench. If damped option, please see “Mounting
damper MC 35 PW A” on page 67.
8 Attach the motor cable, the pneumatic tubes and
the connections for the sensor cables.
