Docking XT conveyor sections
Introduction
This instruction is only valid for conveyor XT. NOTE! A short or narrow conveyor can easily fall over.
Always anchor the conveyor to the floor!
Tools
Instruction
Allen key 4 mm

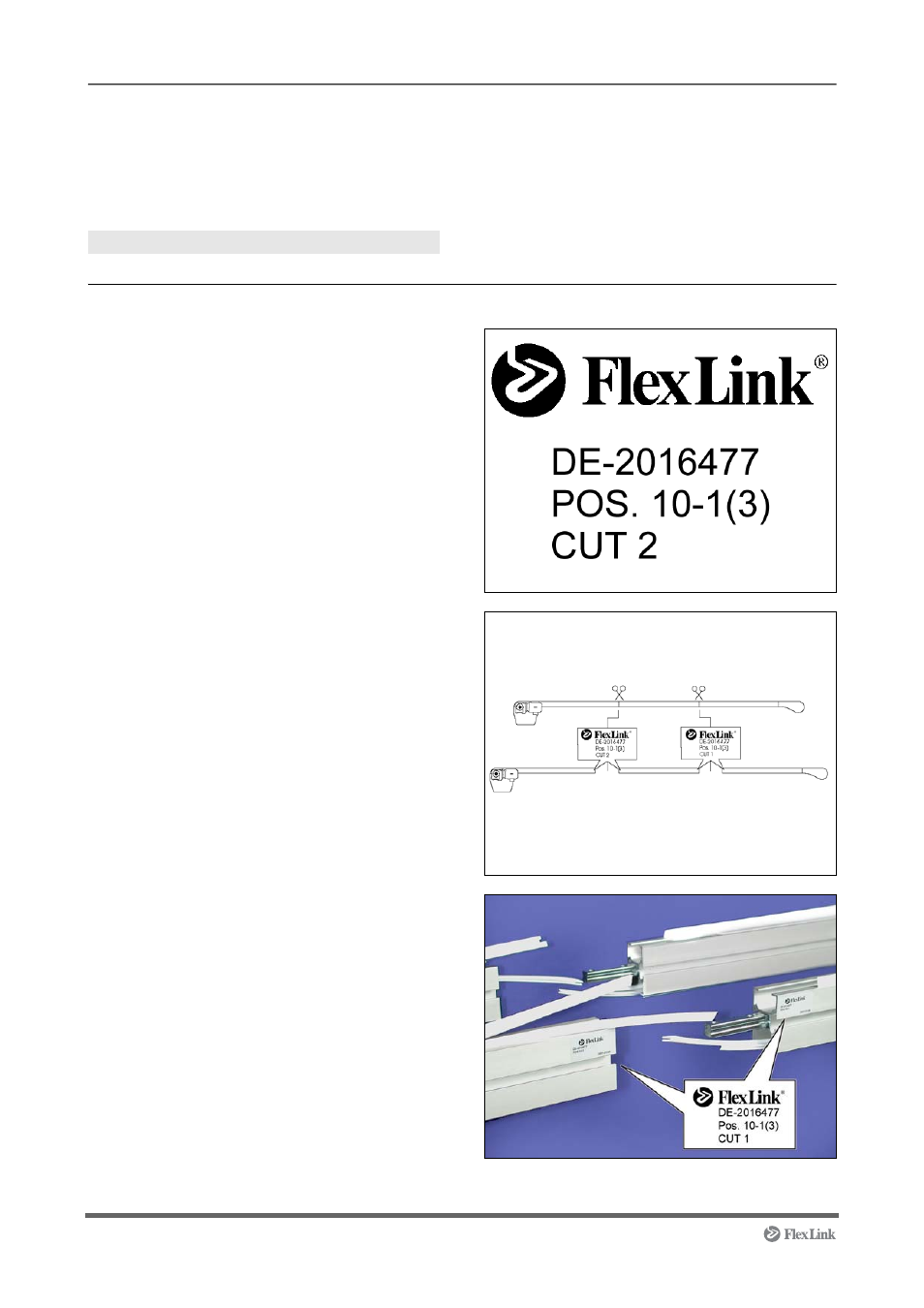

1 The section labels indicate following:
First row is the order number.
Second row indicates the item position on the
order and which individual among a quantity, e.g.
Pos. 10 first conveyor of three.
The third row indicates which cut it is.
Two sections with identical labels should be
connected to each other.
2 Unpack the conveyor sections and arrange them
so that beam ends with identical labels are facing
each other. Place the conveyor sections on the
same level and in line with each other.
3 Dock the conveyor sections to each other.
