5113235 63

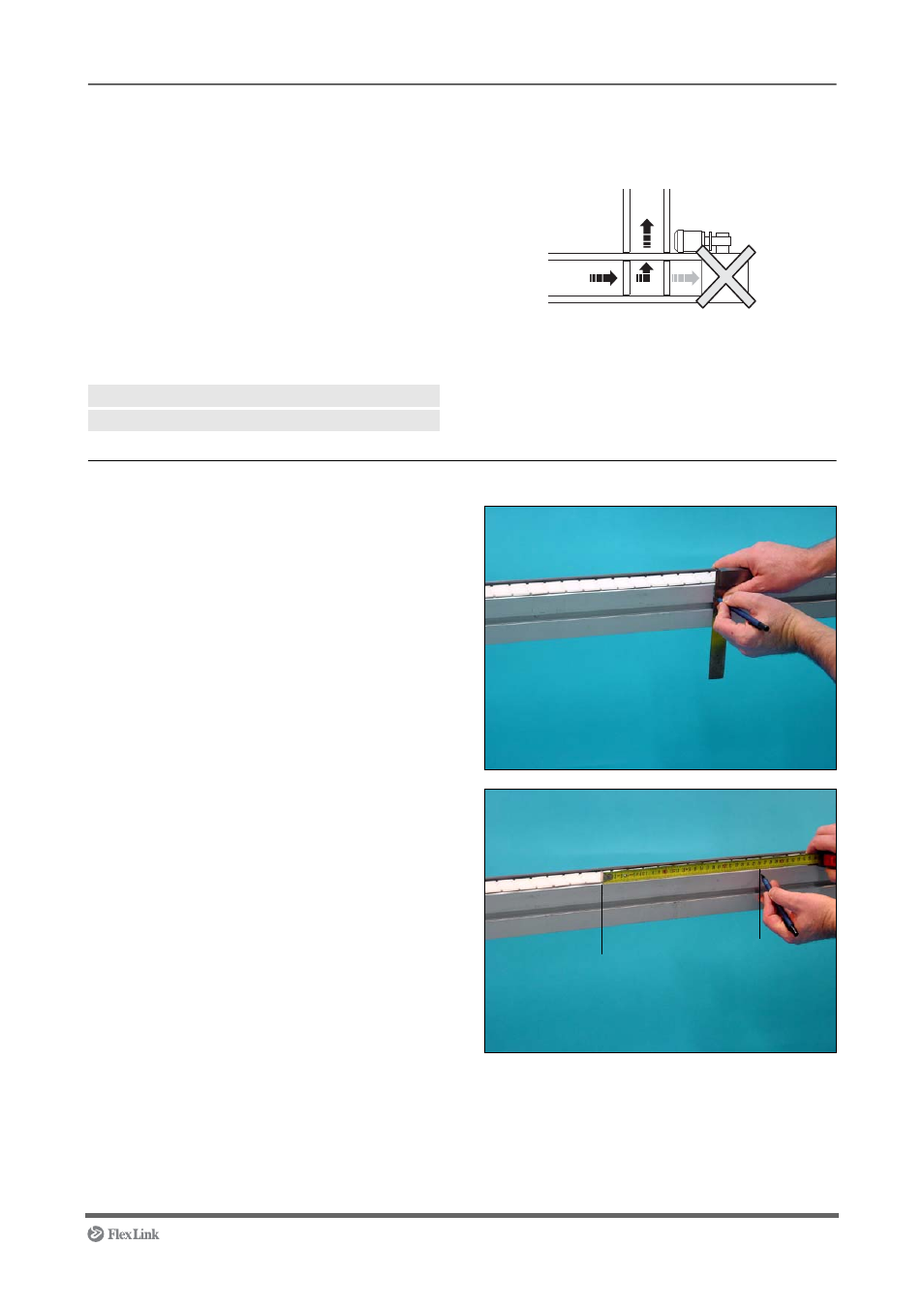

Mounting transfer unit XTPT L
Introduction
Mount the transfer unit on the inside of conveyor XT or
XT Compact. CAUTION! Ensure that a pallet can not fall off the
conveyor if it should pass the transfer unit by mistake.
Tools
Instruction
Allen key 5 mm
Box wrench 10 mm
1 Find the mid position of the transfer unit's
position on the conveyor beam.
2 Measure (PW - 90)/2 to the left and to the right of
the centre position.
mid position
right position
