10 5113235

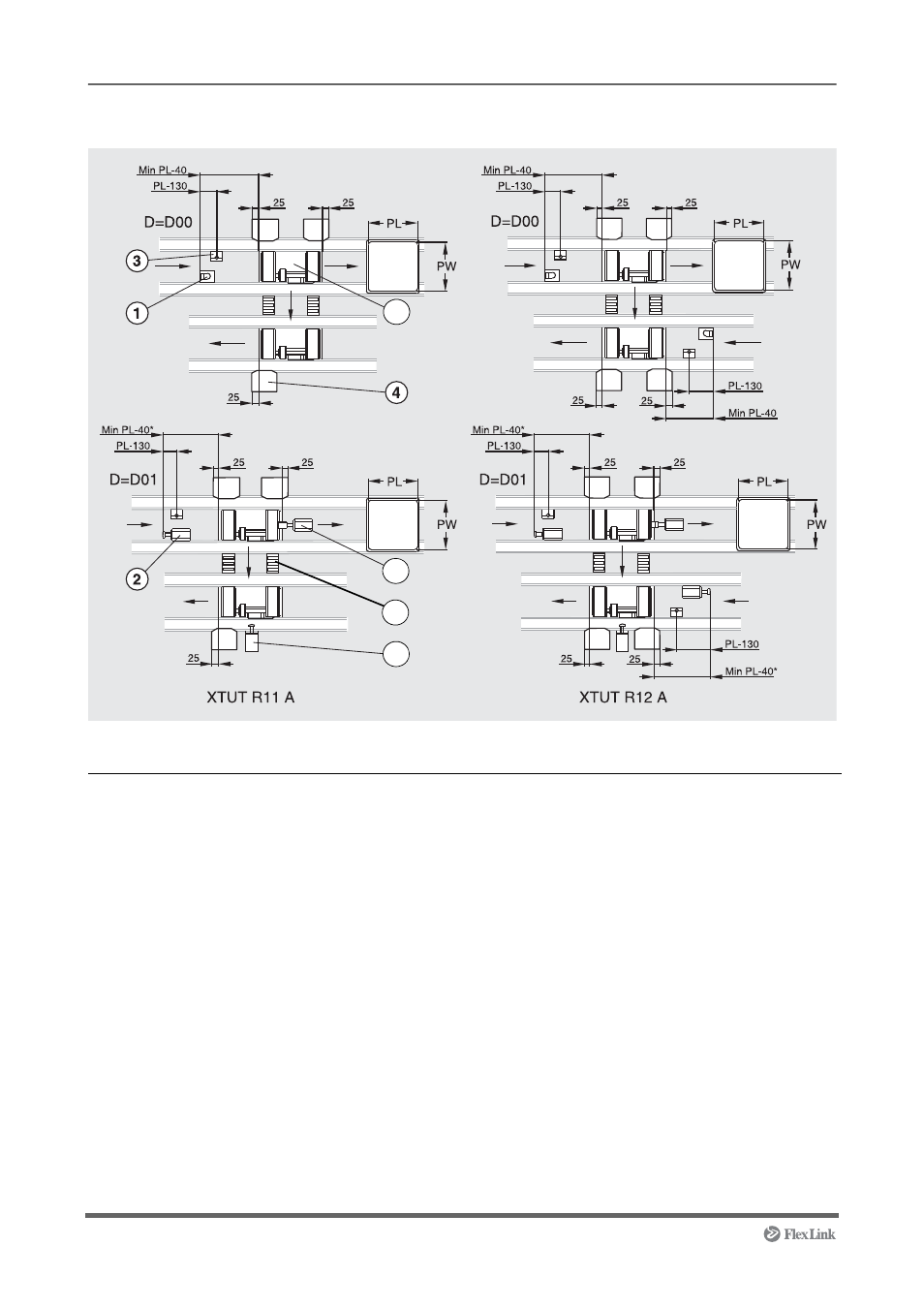

Transfer module R11 A/R12 A
Overview
* With stop heel compressed
Pos Name Designation Instruction
1 Pallet stop device XTPD U200 See page 38
2 Pallet stop device damped XTPD D35 See page 40
3 Sensor bracket XTPB V002 See page 45
4 Position sensor XTPB V003 See page 46
5 Damper XTPA CM35 See page 49
6 Roller kit 5049865, 5050117 See page 50
7 Damper XTPA MC35 PW A See page 57
8 Mounting transfer unit XTPT See page 57
8
5
7
6
