Mounting pallet stop device XTPD D100
Introduction
Mount the stop inside of the XT conveyor beam.
Tools
Instruction
Allen key 6 mm

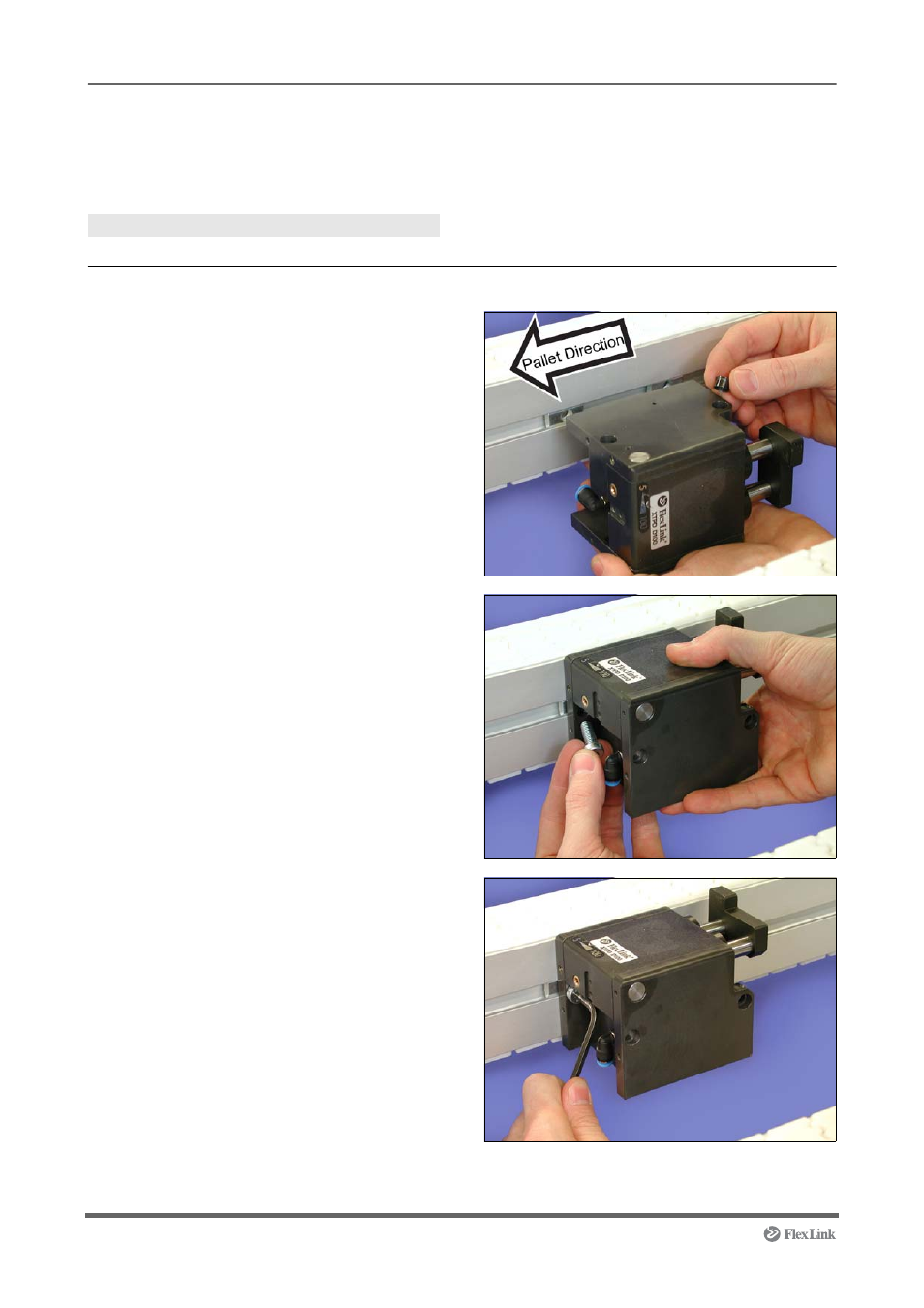

1 Insert the slot nuts (2xM8) in the conveyor T-slot.
Insert the bushings to the stop unit.
2 Fit the screws (2 x M8).
NOTE! The stop flange shall face against the
pallet direction of travel.
3 Tighten the screws with the 6 mm Allen key.
Torque value for tightening: 25 Nm.
