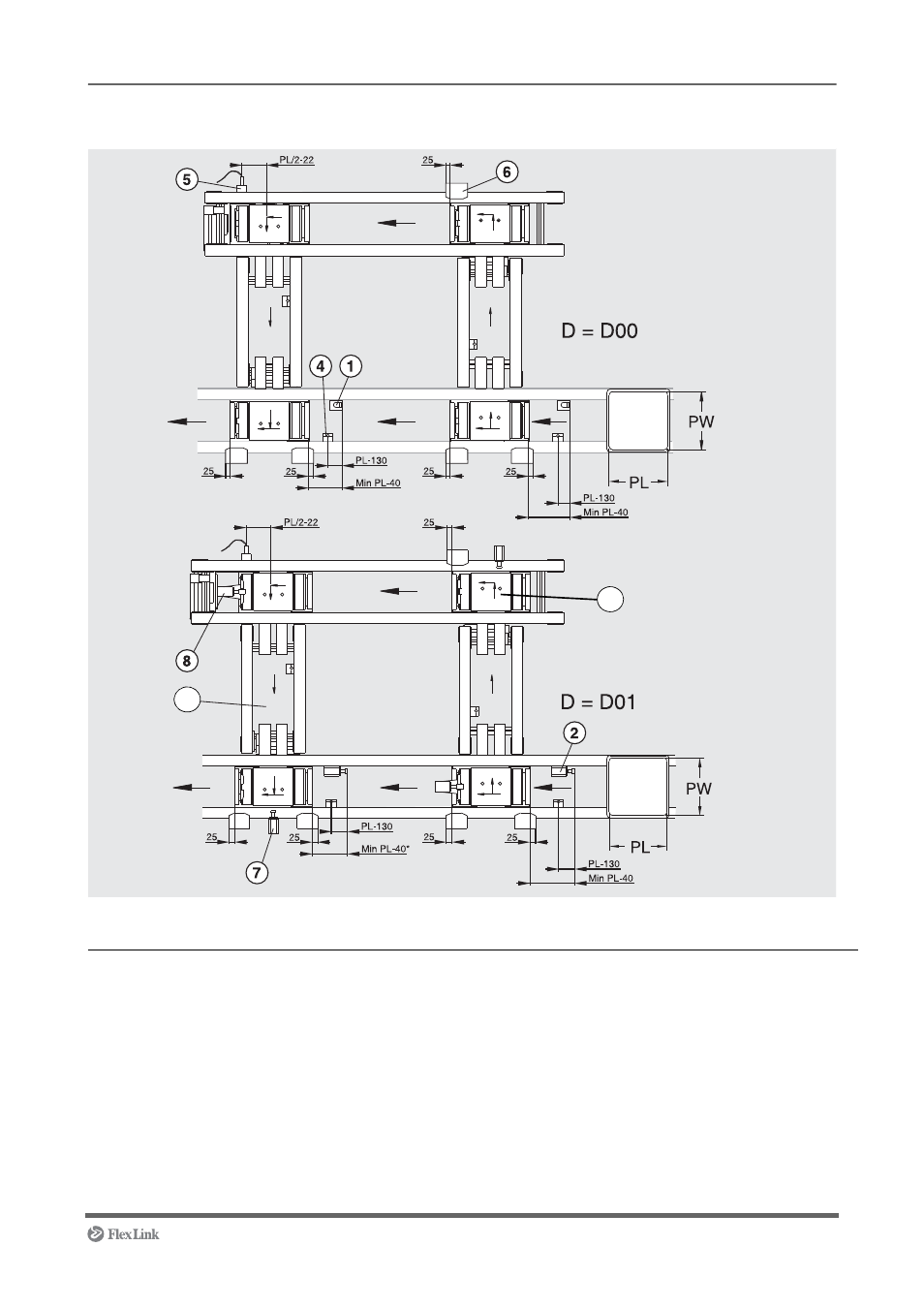

Work station module M11 A
Overview
* With stop heel compressed
Pos Name Designation Instruction
1 Pallet stop device XTPD U200 See page 38
2 Pallet stop device damped XTPD D35 See page 40
3 Sensor bracket (not in picture) XTPB V001 See page 43 (only for option Q01,
S01 & L01).
4 Sensor bracket XTPB V002 See page 45
5 Sensor bracket XTPB H001 See page 48
6 Position sensor XTPB V003 See page 46
7 Damper XTPA CM35 See page 49
8 Damper XTPA MC35 PW A See page 57
9 Mounting transfer unit XTPT See page 57
10 Mounting connecting kit 5050034 See page 51
9
