Mounting pallet stop device XTPD U200
Introduction
The stop can be placed on the inside of the conveyor
at either the left (stop at pallet front) or right side (stop
at pallet back). If nothing else is specified the
instruction steps are valid for both XT and XT
Compact conveyors.
Tools
Instruction
Allen key 6 mm
Allen key 5 mm

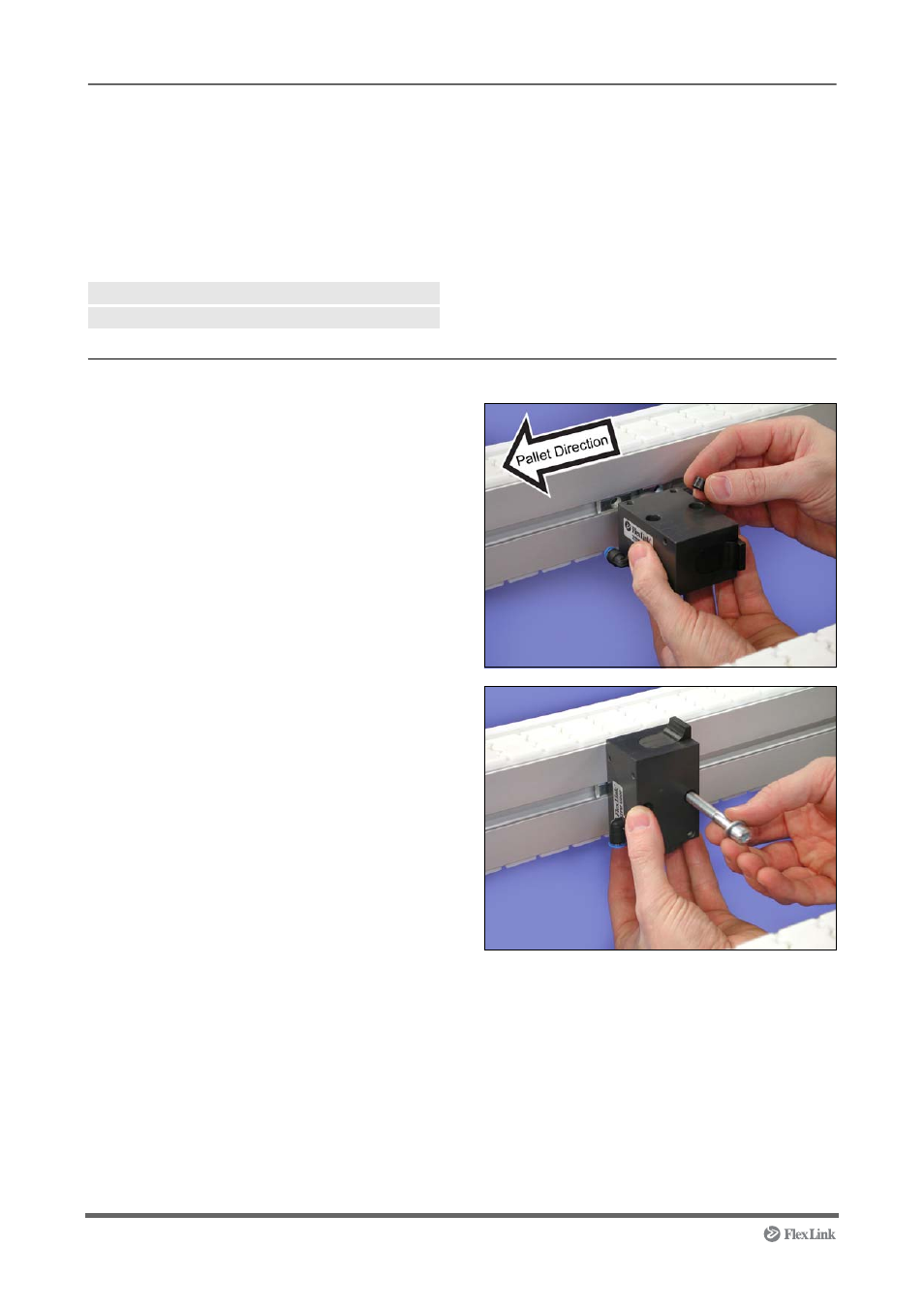

1 XT conveyor:
Insert the slot nuts (2 x M8) in the conveyor T-
slot. Insert the bushings to the stop unit.
2 XT conveyor:
Fit the screws (2 x M8).
NOTE! The stop flange shall face against the
pallet direction of travel.
