3 XTUF S01A/S02A/S03A

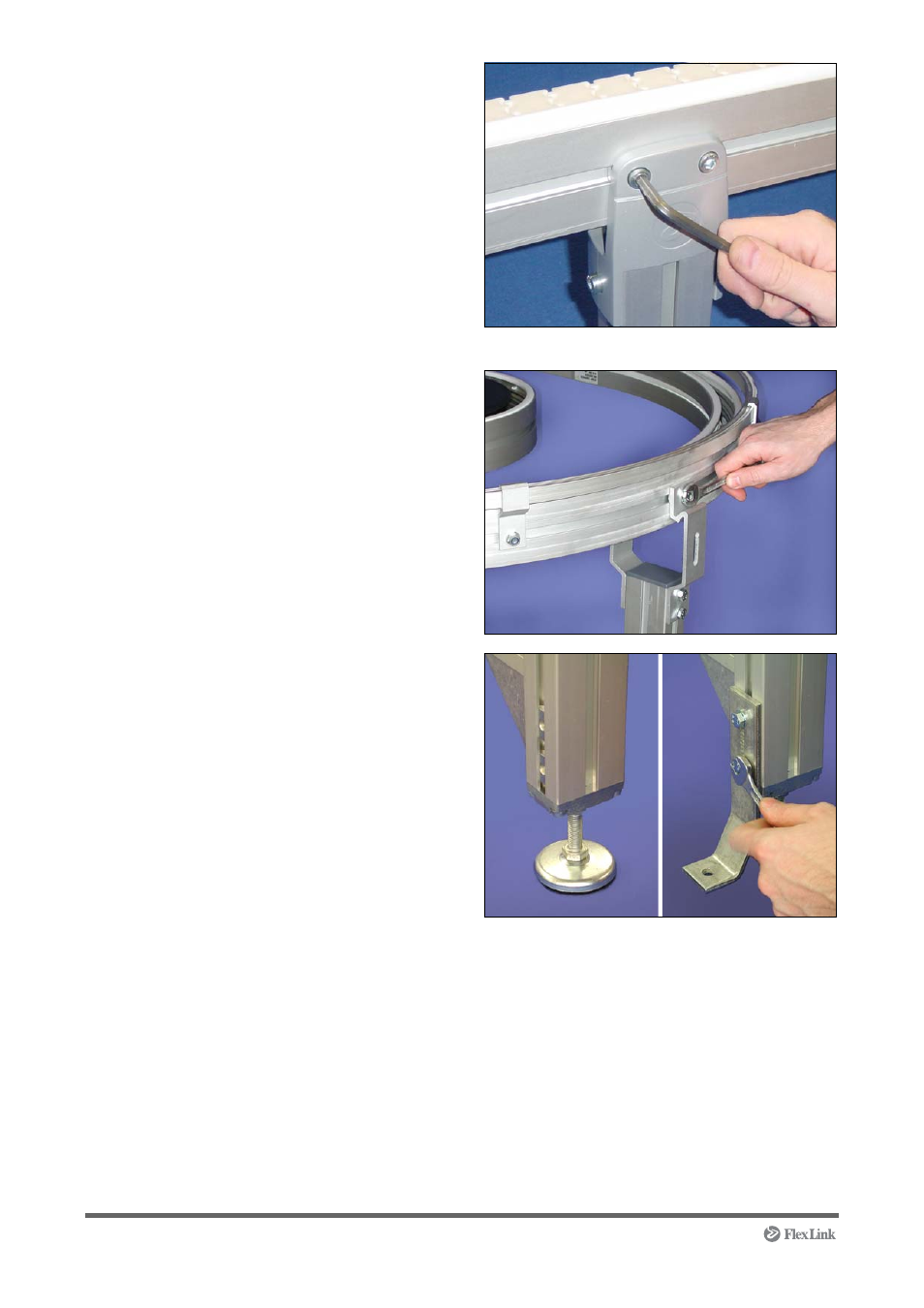

XT Conveyor:
Insert the slot nuts (4 x M8) in the conveyor T-
slot. Place the support module in the correct
position by tilting aside the loose bracket. Fit the
screws (4 x M8) and tighten with the 6 mm Allen
key. Tighten the screws (2 x M8) on the loose
bracket using the 6 mm Allen key.
XT Compact Conveyor:
Insert the slot nuts (4 x M5) in the conveyor T-
slot. Place the support module in the correct
position by tilting aside the loose bracket. Fit the
screws (4 x M5) and tighten with the 5 mm Allen
key. Tighten the screws (2 x M8) on the loose
bracket using the 6 mm Allen key.
4 XTUF S04
Insert the slot nuts (2 x M8) in the conveyor T-slot
at the centre of the bend.
Place the support module in correct position. Fit
and tighten the screws (2 x M6). Use the 13 mm
box wrench.
5 Fit the slot nuts (2 x M8) to the support beam T-
slot.
Fit the foot and tighten the screws (2 x M8). Use
the 13 mm box wrench.
