5113235 45
Mounting sensor bracket XTPB V002
Introduction
The sensor is not included in sensor bracket XTPB
V002.
Tools
Instruction
Allen key 5 mm
Allen key 3 mm

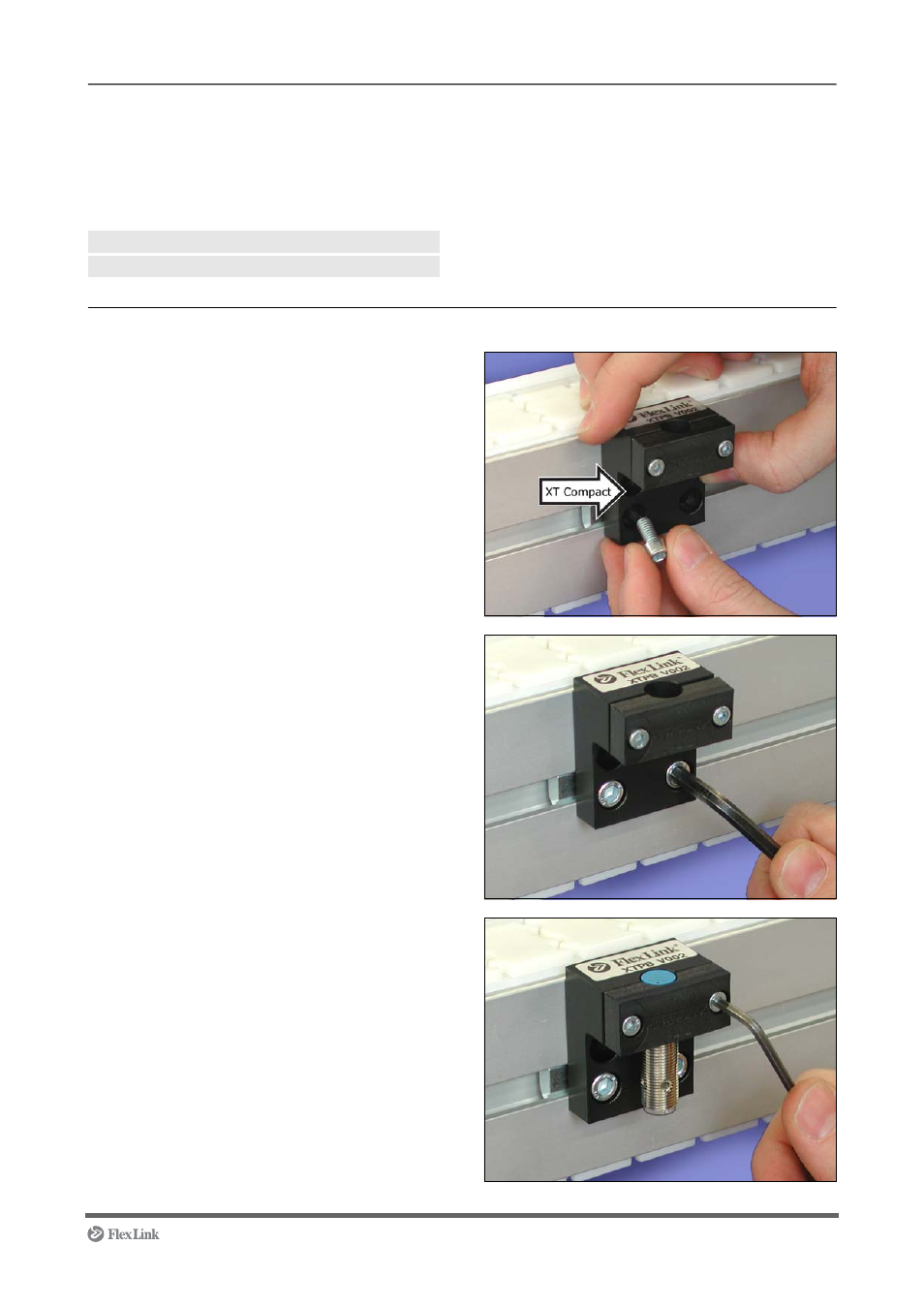

1 Insert the slot nuts (2 x M6) in the conveyor T-
slot. Fit the screws (2 x M6). The arrow shows
the upper holes for fitting on XT Compact
conveyor.
2 Use the 5 mm Allen key to tighten the screws.
3 Fit the sensor to the sensor bracket. Tighten the
screws. Use the 3 mm Allen key.
