OptiOns
y Code verification package
y Fiducial recognition package
y servo controlled X-Y axis for reader
or vision camera
y External fume extractor with activated carbon
y software integration into customer’s database server
tEChniCal CharaCtEristiCs
Machine dimensions (l×W×h) 860 x 1106 x 1507 mm
Machine weight 250kg (550 lbs)
Board size 50 mm x 75 mm (2” x 3”) up to
500 mm x 450 mm (20” x 18”)
Marking area 500 mm x 450 mm (20” x 18”)
laser marking position -
repeatability ±0.1 mm
average board -
changeover time < 5s
installatiOn rEquirEMEnts
power 100V 60hz 1ph or 230V 50hz 1ph,
10a
pneumatics 500kpa at 36 l/min (80psi at 2 cfm)
lasEr CEll

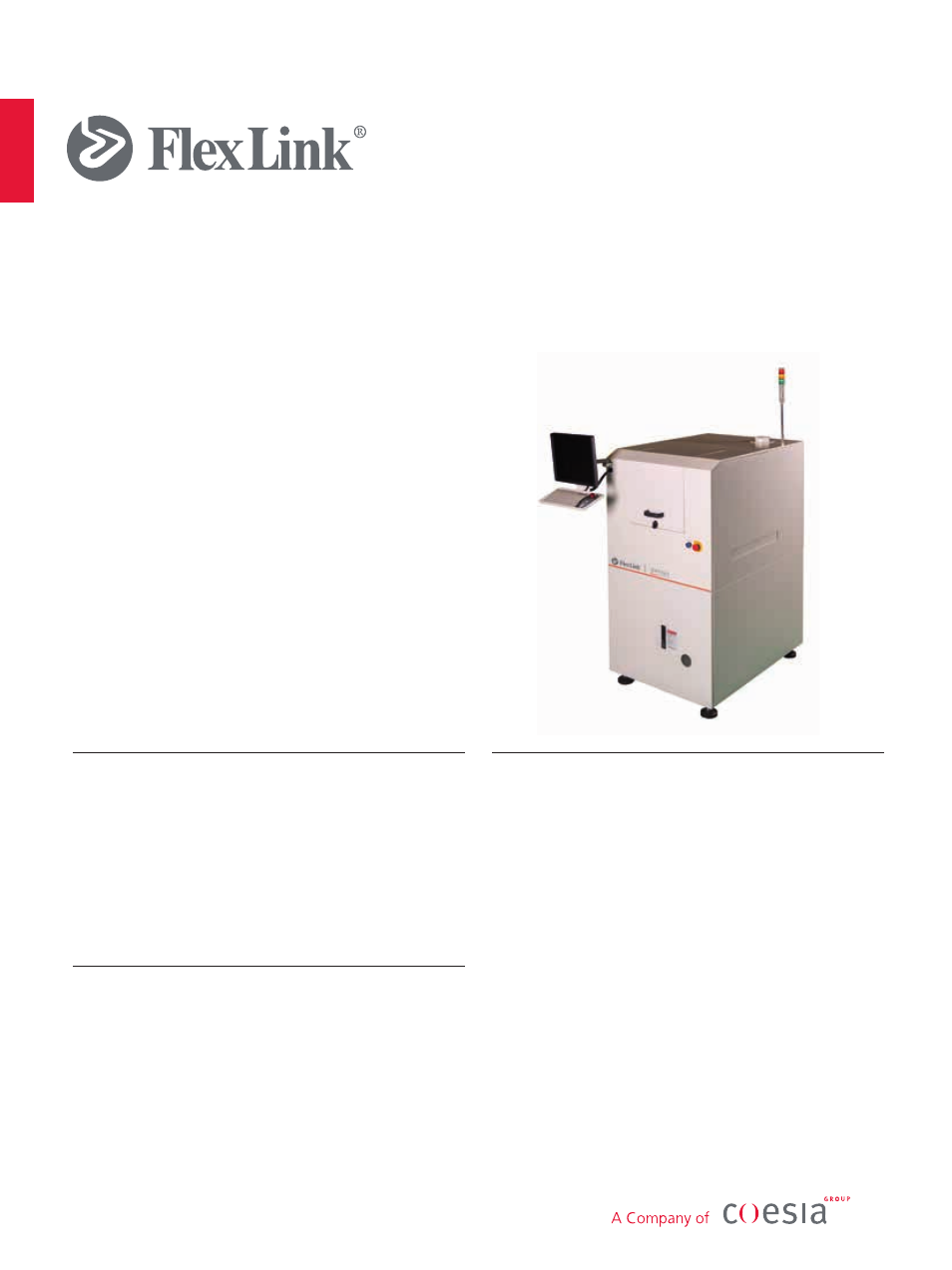

Genius lX – high speed laser marking
y Welded frame design with class 1 safety covers
y laser head:
- 30 Watt CO
2
laser marker
- Mounted on actuated XY-axis
- laser spot diameter 100µm
- laser scan speed up to 6000mm per second
- software adjustable Z-axis focus height of ±21mm
y Edge belts:
- stationary
- ”EsD safe” edge belts with automatic
width adjust system
y Machine:
- pneumatic actuated board stop and locate system
- pC based control system
- 17” lCD touchscreen monitor
- programmable laser marking position
- ready to be connected to central exhaust system
y CE compliance
GEnius
5480 E
n
-1 © Fle
xl
ink 20
13
