5113235 25

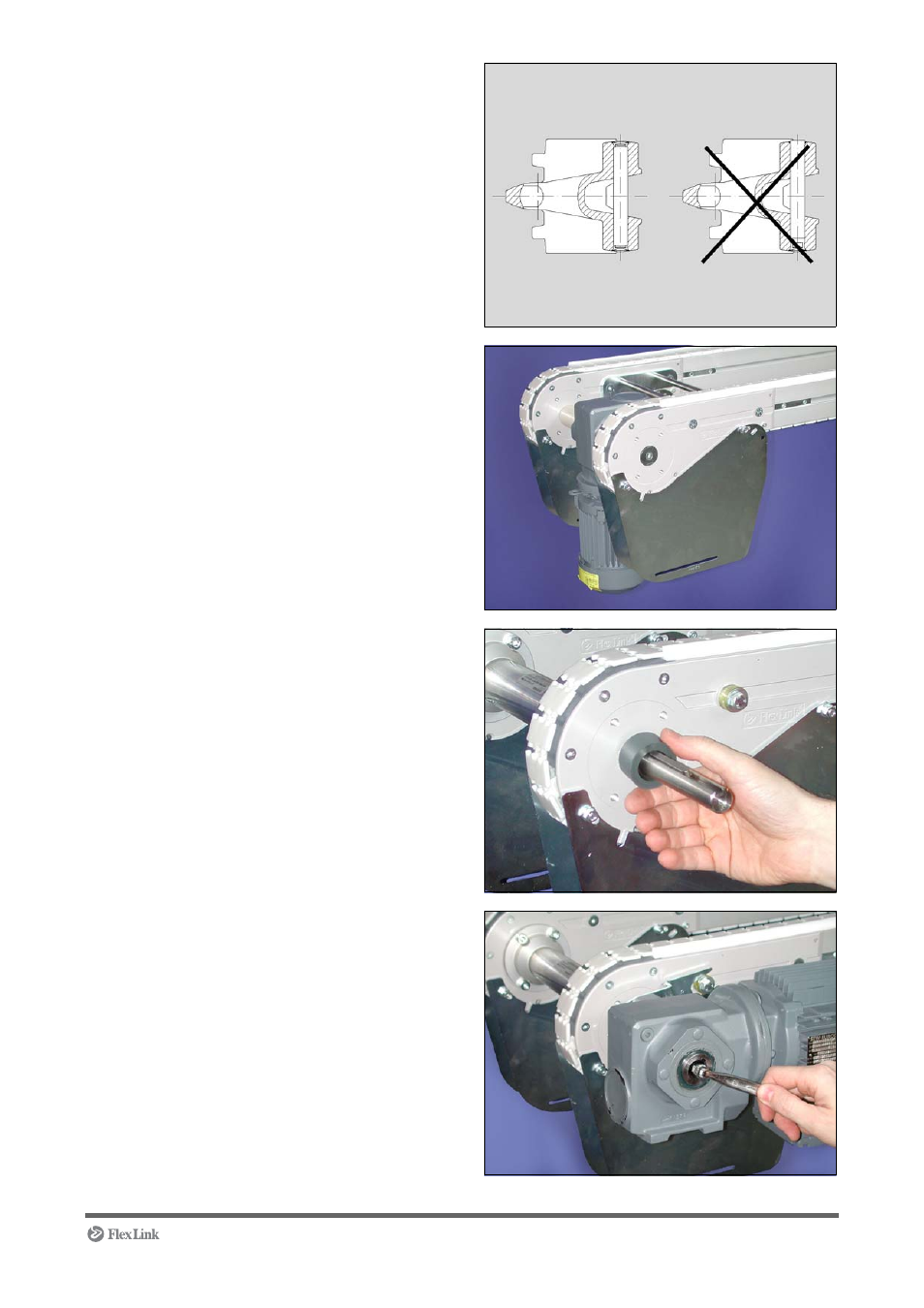

11 Make sure that the pin snaps in to the correct
position (centered).
12 Centre mounted motor:
Fit the fan cover to the motor and tighten the
screws. Use the 7 mm box wrench. Fit the slack
protections and tighten the nuts. Use the 10 mm
box wrench.
Side mounted motor:
Fit the slack protections and tighten the nuts.
Use the 10 mm box wrench.
13 Side mounted motor:
Fit the plastic sleeve on the drive shaft.
14 Side mounted motor:
Fit the motor on the drive shaft and tighten the
screw. Use a 10 mm socket wrench. Fit the
plastic cap.
CAUTION! Make sure that the torque arm fork
has entered the cage in a correct way. An
unlocked rotating motor can cause personal
injury.
