Connecting an XT conveyor module, centre mounted motor in line with
another XT conveyor
Introduction
Use connecting kit 5050564, which connects a centre
mounted end drive unit (M and HM), to an idler end
unit. CAUTION! Fit one connecting plate at a time to
ensure the unit remains intact, never loosen screws
for more than one connecting plate at a time.
Tools
Instruction
Allen key 5 mm
Box wrench 13 mm

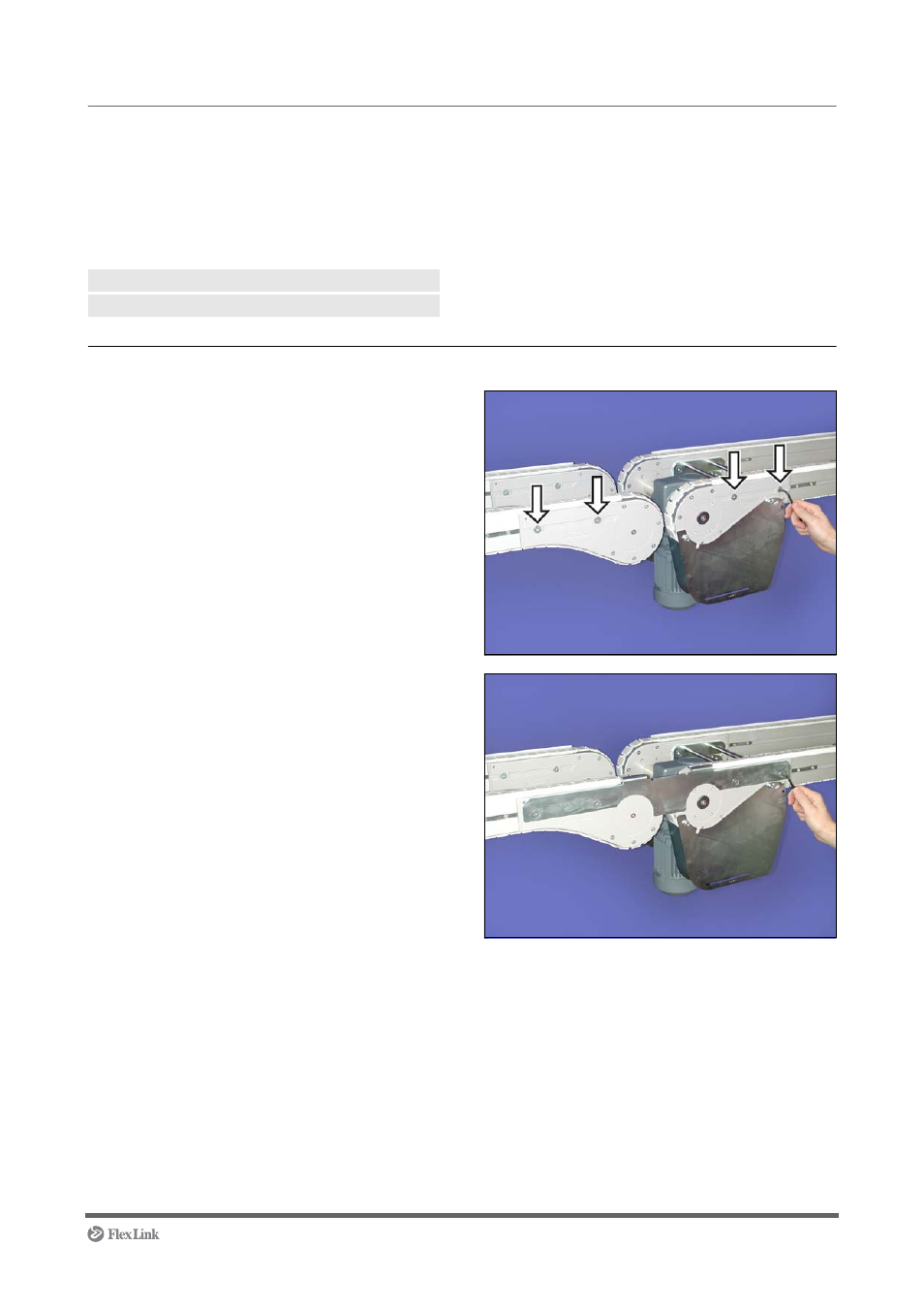

1 Make sure that the conveyors are on the same
level and in line with each other.
Loosen the screws (4 x M8) on the side plates.
Use the 5 mm allen key.
CAUTION! Fit one connecting plate at a time to
ensure the unit remains intact, never loosen
screws for more than one connecting plate at a
time.
2 Fit the connecting plate and tighten the screws.
Use the 5 mm allen key.
