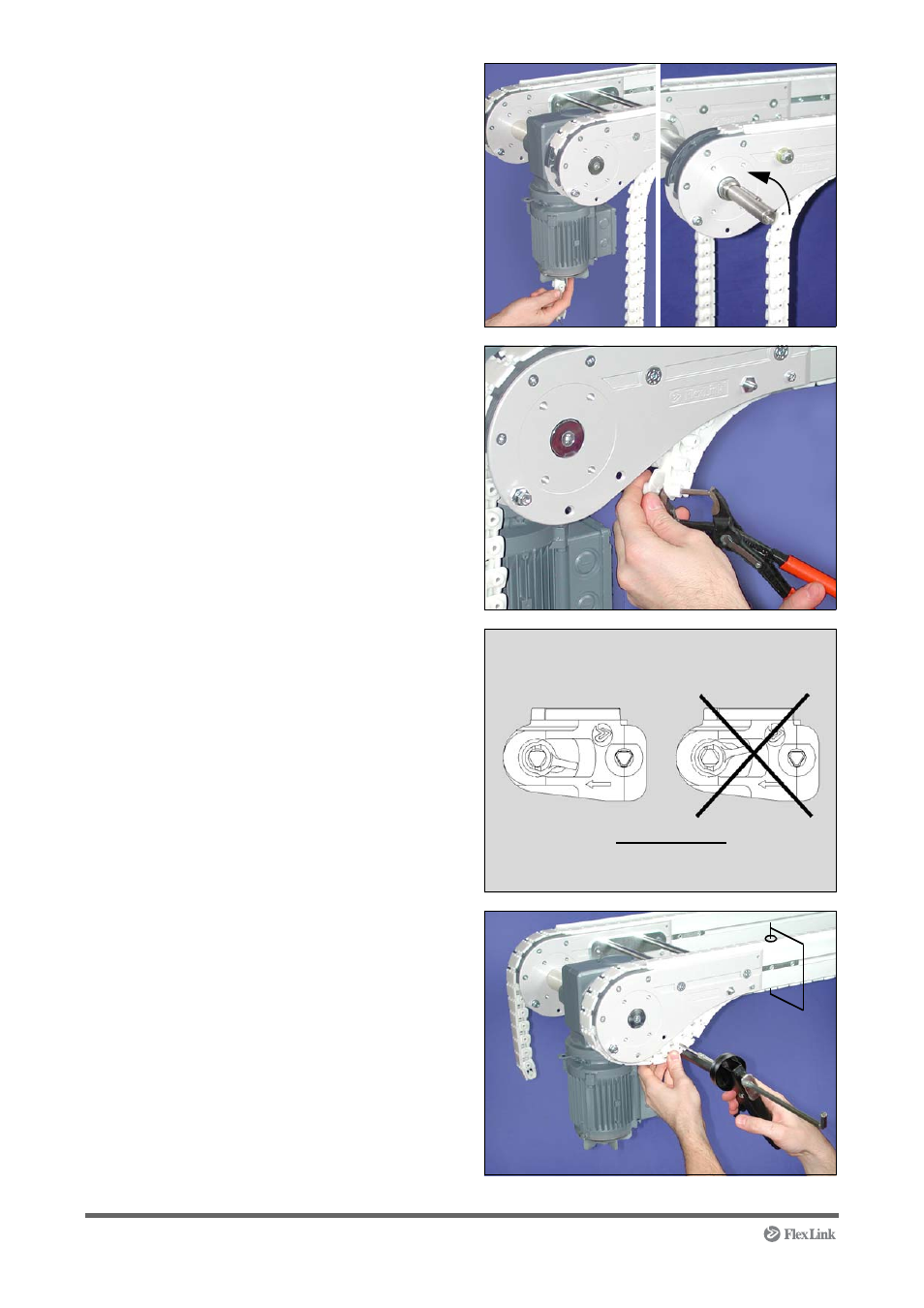

7 Centre mounted motor (A):

Remove the fan cover. Use the 7 mm box
wrench. Feed the chains to the drive wheel and
turn the fan until the chains are hanging a bit
below the conveyor.

Side mounted motor (B):

Feed the chains to the drive wheel and turn the
drive shaft until the chains are hanging a bit
below the conveyor.

CAUTION! Make sure that the chain enters the
drive wheel correctly. Risk for the plastic guides
to brake.

8 Use a pair of slip joint pliers to insert the pin half-

way into the chain link.

9 Join the chain ends. Make sure that the joint ball

has not been removed and re-assembled upside
down.

CAUTION! Wrongly positioned joint ball will lead
to chain damage when running the chain.

10 Press the pin through the chain. Use the pin

insertion tool.

TIP! Use a clamp (A) to keep the chain stretched.

Check rib down
