5113235 69

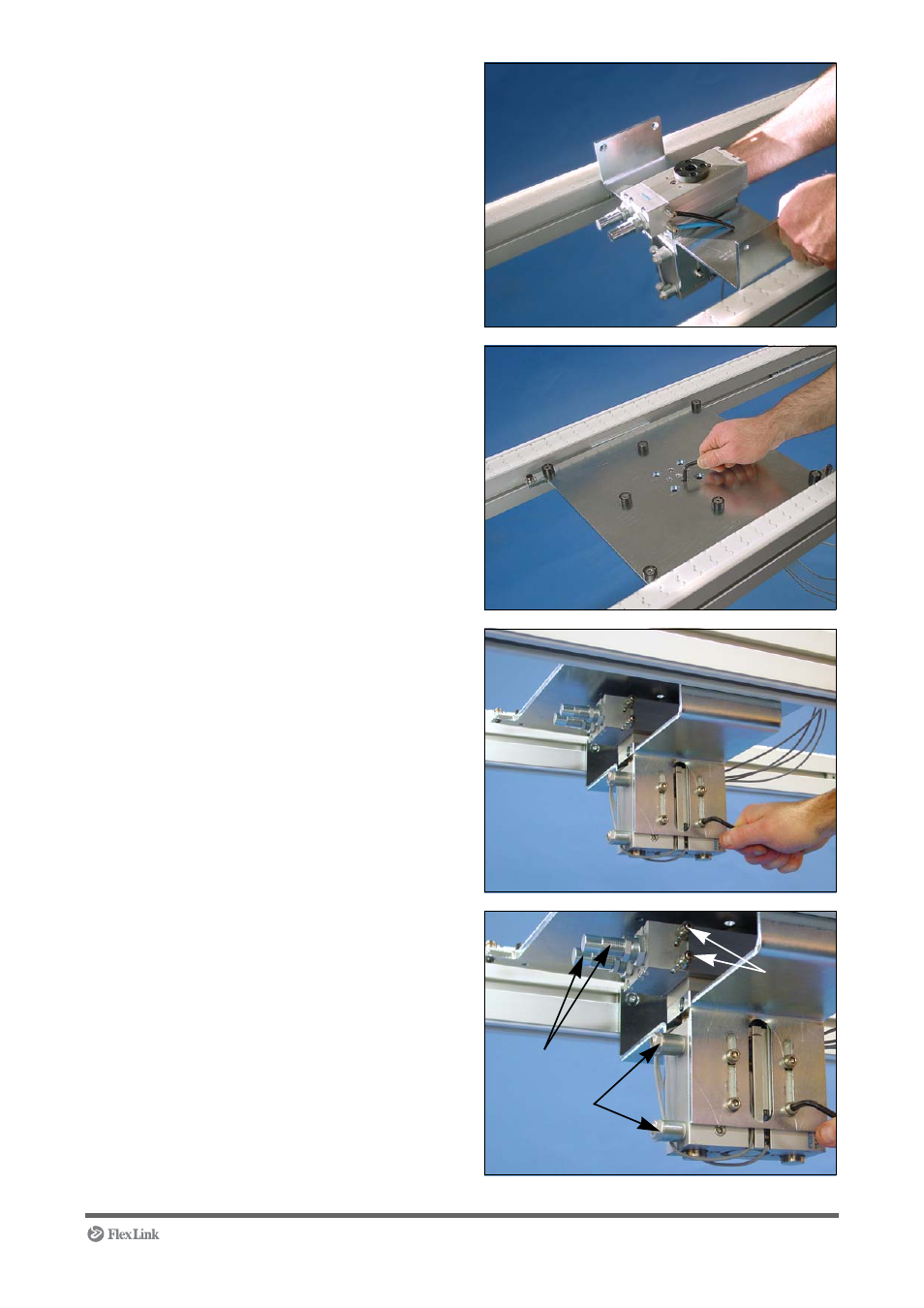

3 Fit the lift and locate unit from above. Fit the four
M6 screws and tighten them with a 4 mm Allen
key.
4 Fit the top plate and tighten the four M6 screws
using the 5 mm Allen key. Torque value for tight-
ening: 10 Nm.
Note! Make sure that the top plate has not been
turned 90° by mistake. The top plate must be
positioned according to the picture when the
rotate actuator has reached end position.
5 To adjust the height of the module, use the 5 mm
Allen key and a 10 mm box wrench to loosen the
four M6 screws on the brackets.
XT Compact conveyor – press the unit down to
bottom end position.
XT conveyor – press the unit up to upper end
position.
Tighten the four screws.
6 If necessary, fineadjust the end positions (A) of
the rotate actuator. Use a 19 mm and 24 mm box
wrench.
Use the non-return throttle valves (B) to adjust
the speed of the pneumatic rotate actuator. Use
a small screwdriver.
Use the non-return throttle valves (C) to adjust
the speed of the pneumatic lift cylinder. Use a
small screwdriver.
A
B
C
