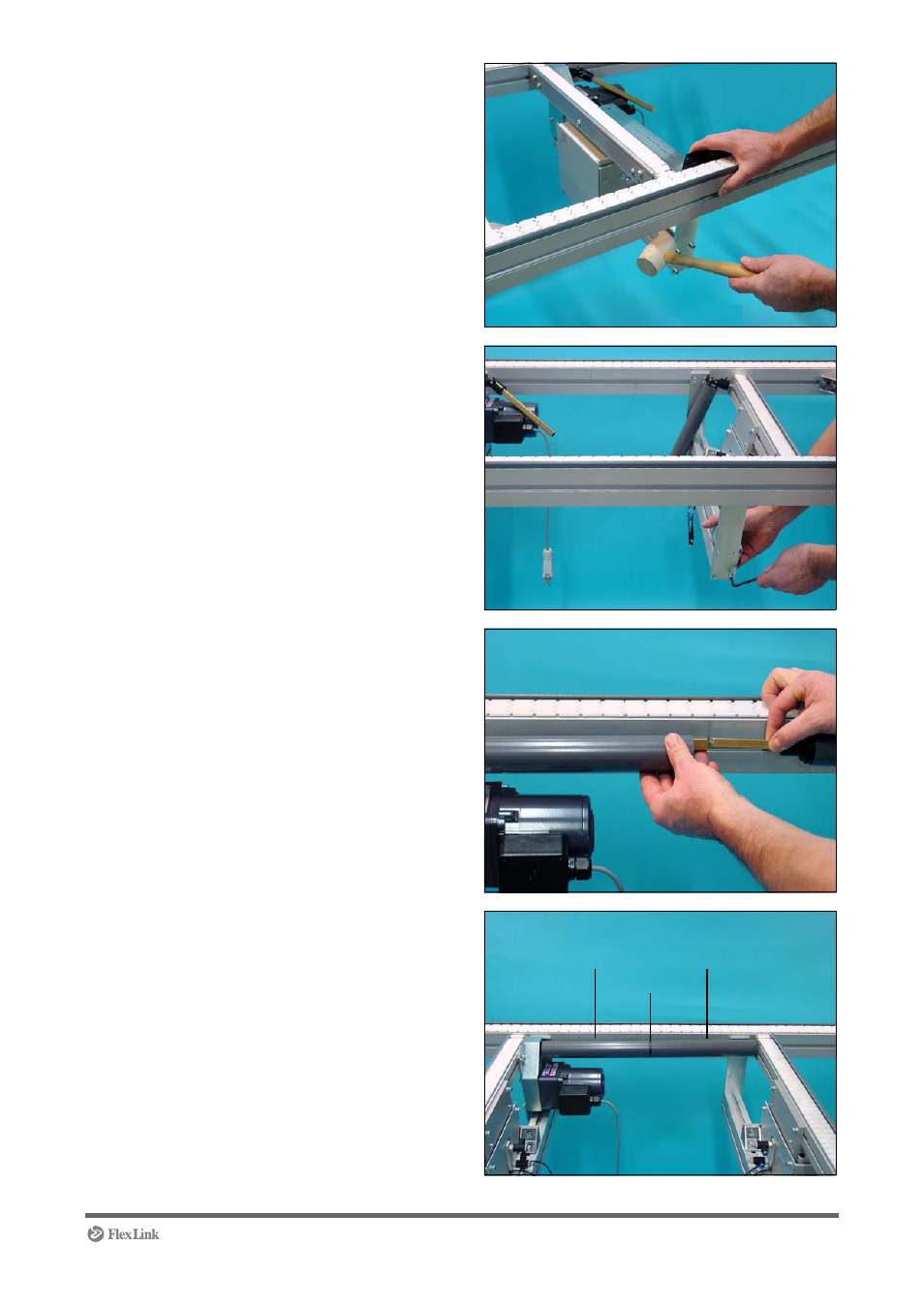

7 Adjust the motor half of the transfer unit to make
it perpendicular to the conveyor beam.
8 Mount the other half of the transfer unit to the
brackets. Use only one screw on each side of the
transfer unit. This is to make the unit half able to
rotate.
9 Dock the two transfer unit halves by connecting
the telescopic shaft. Do not forget the sleeve on
the shaft of the motor half of the transfer unit.
10 Docking is complete.
sleeve sleeve
connecting
piece
