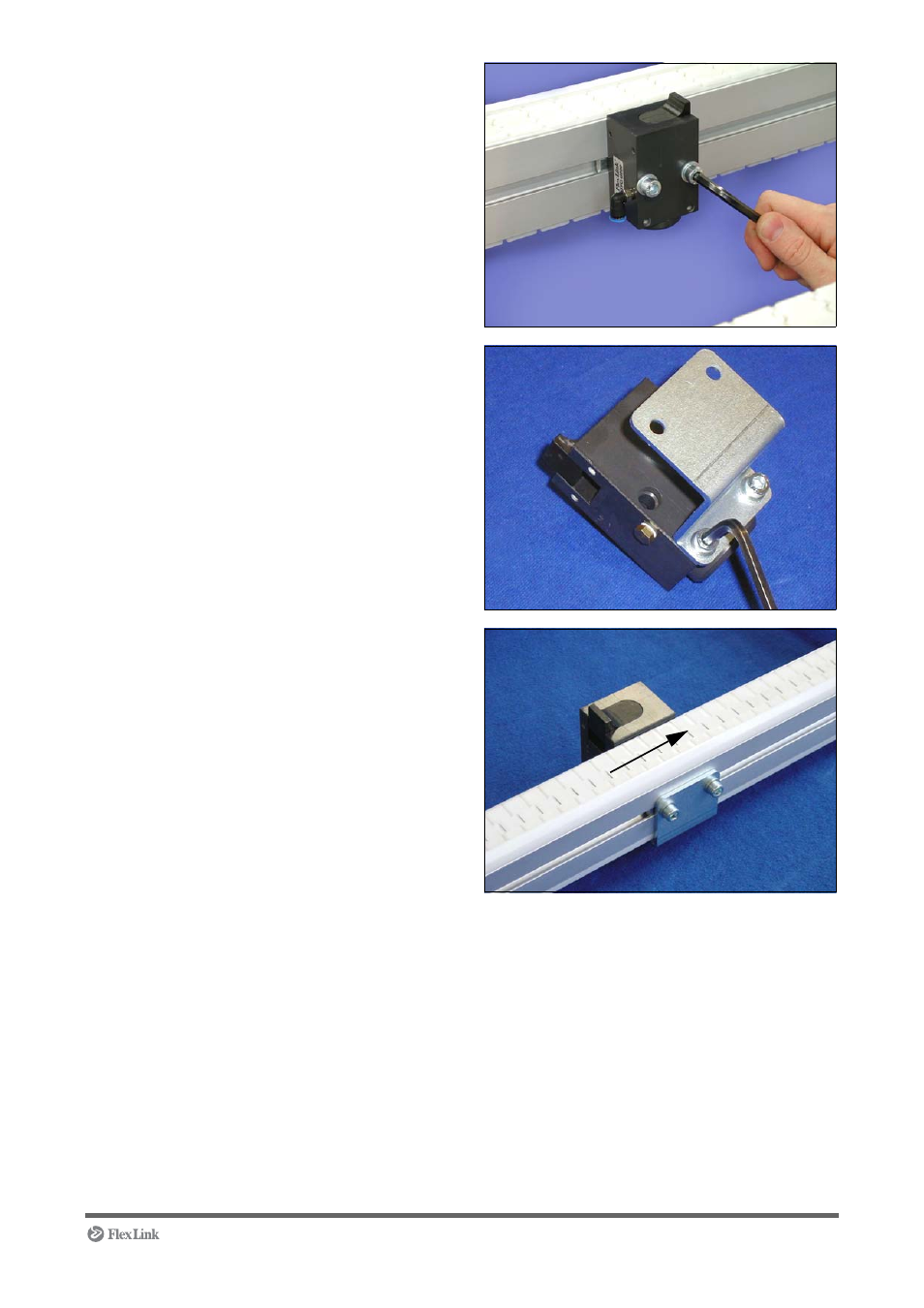

3 XT conveyor:
Use the 6 mm Allen key to tighten the screws.
Torque value for tightening: 25 Nm.
4 XT Compact conveyor:
Mount the bracket on the unit. Fit and tighten the
screws (2 x M6) with the 5 mm Allen key. Torque
value for tightening: 10 Nm.
5 XT Compact conveyor:
Insert the slot nuts (2 x M6) in the conveyor T-
slot.
Fit and tighten the screws (2 x M6). Use the 5
mm Allen key. Torque value for tightening: 10
Nm.
NOTE! The stop flange shall face against the
pallet direction of travel.
Pa
llet
di
rec
tio
n
