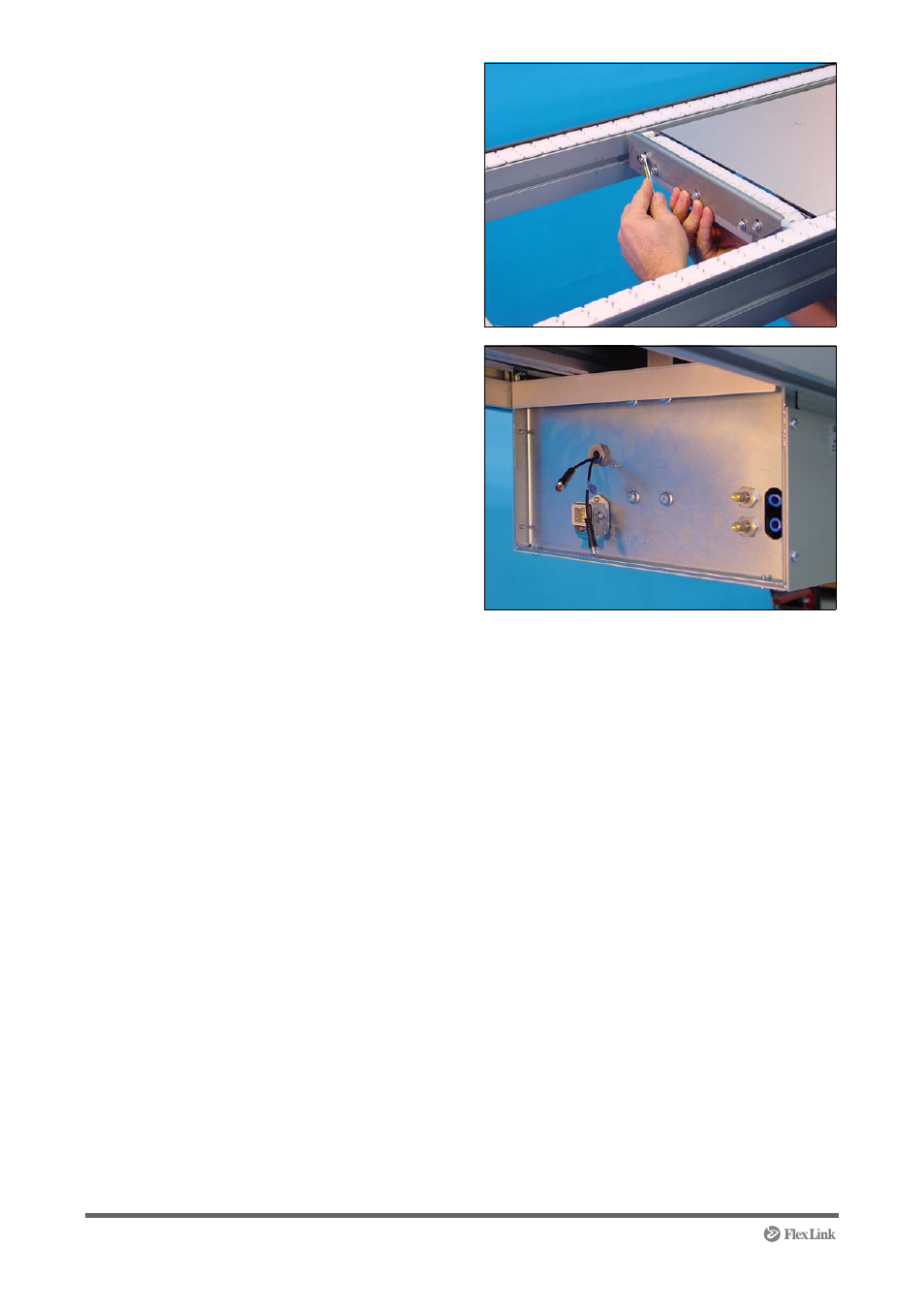

8 Check the pallet direction of travel. Loosen the
four screws (4×M5) that hold the guide plate that
will act as a stop plate. Lift the plate to its top
position and tighten the screws. Use the 8 mm
box wrench. If damped option, please see
“Mounting damper MC 35 PW A” on page 67.
9 Attach the motor cable, the pneumatic tubes and
the connections for the sensor cables.
