Mounting XT Compact conveyor perpendicular to XT or XT Compact con-
veyor
Introduction
Use connecting kit 5050034.
Tools
Instruction
Box wrench 8 mm

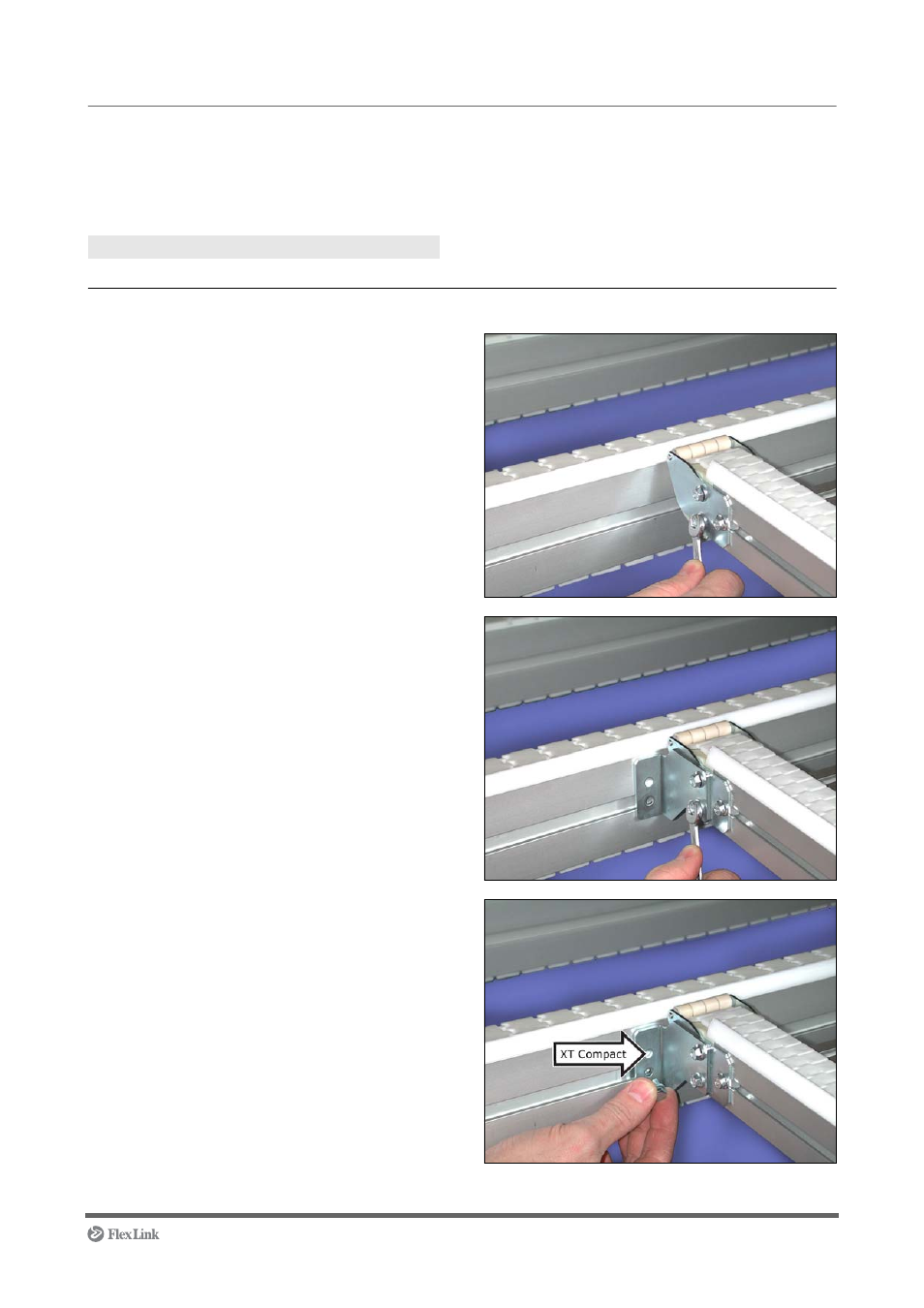

1 Loosen the screws on the XT Compact conveyor
(2 x M5). Use the 8 mm box wrench. Insert the
slot nut (1 x M5) in the conveyor T-slot.
2 Mount the bracket. Fit and tighten the screws
(2 x M5). Use the 8 mm box wrench.
3 Fit and tighten the screw (1 x M5). Use the 8 mm
box wrench. The arrow shows the upper holes for
fitting on XT Compact conveyor.
