DMS 1600, DMS 2000, DMS 3200, and DMS 3600 • Operation 31
NOTES:
• Presets cannot be viewed from the front panel unless recalled as the current
configuration. Presets can be viewed using the Extron Matrix Switchers Control
Program (see
Presets menu on page 77).
• The current configuration and all presets are stored in non-volatile memory. When
power is removed and restored, the current configuration is still active and all
presets are retained.
• When a preset is recalled, it replaces the current configuration, which is lost
unless it is also stored as a preset. The recalled preset overwrites all of the current
configuration ties in favor of the preset configuration ties.

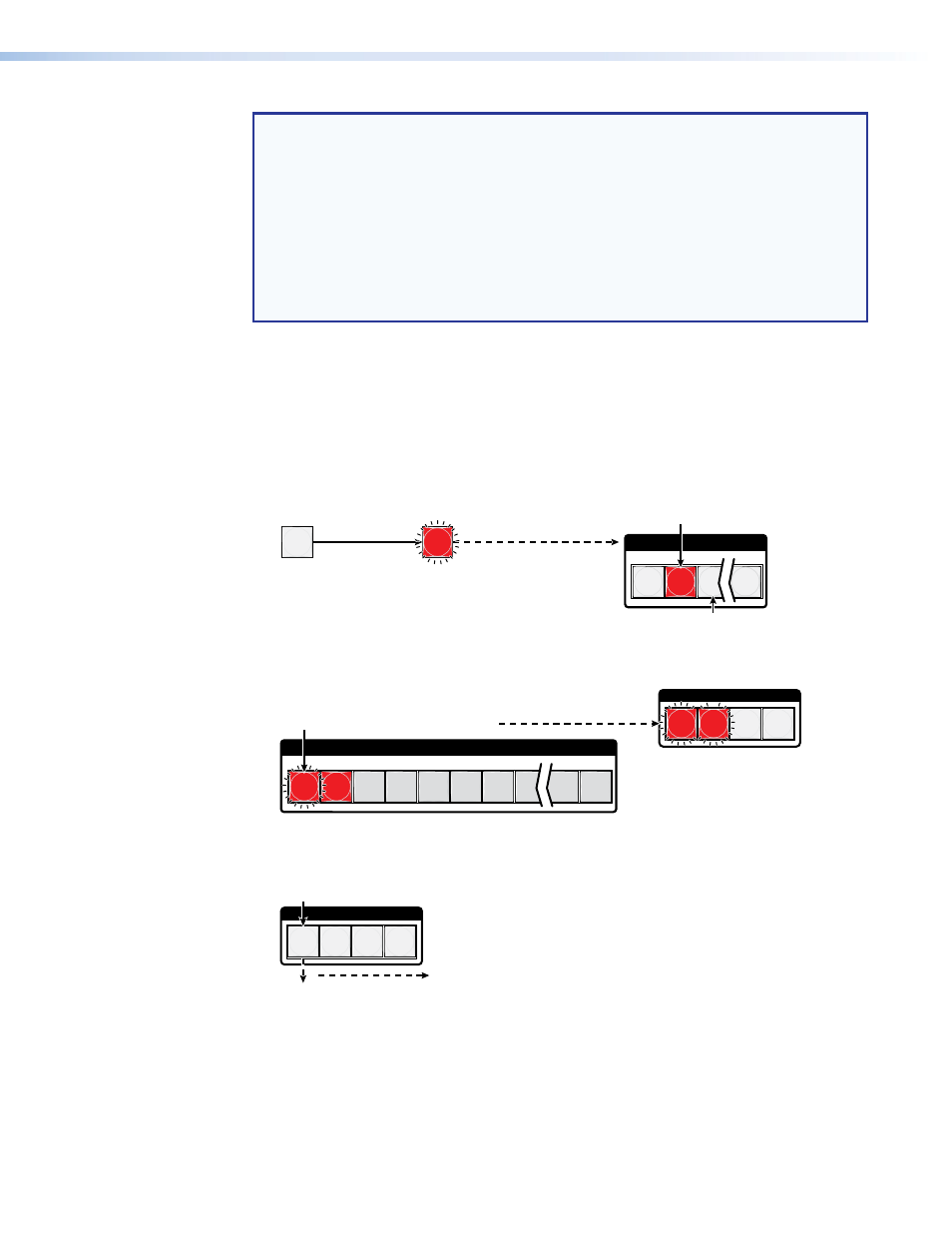

Example 6: Saving a preset
In the following example, the current configuration is saved as a preset. The steps show the
front panel indications that result from your action.
1. Clear all selections: Press and release the Esc button. The button flashes once.
2. Select Save Preset mode: Press and hold the Preset button for approximately
2 seconds until it blinks.
PRESET PRESET
1 2 3 16
Press and hold the button. Release the button.
2 seconds
All input buttons with assigned presets light.
If you then save the configuration to a lit preset number,
the configuration data at that preset location will be overwritten.
Lit
(preset assigned)
Unlit
(no preset assigned)
3. Select the preset: Press and release the input button for the desired preset.
C O N T R O L
PRESET ENTER ESC VIEW
1 2 3 4 5 6 7 8 15 16
INPUTS
The Enter button blinks to
indicate the need to save the
preset.
The Preset button continues
to blink.
Press and release the Input 1 button.
The button blinks to indicate that this
preset number is selected but not saved.
4. Confirm the change: Press and release the Enter button. The current configuration is
now stored in the selected memory location.
C O N T R O L
PRESET ENTER ESC VIEW
The Enter and Preset
buttons return to unlit or
background illumination.
Press the button.
All input buttons and output
buttons return to unlit or
background illumination.
