5.30.3 Assembly
Disassembly:
• Adjust (or by-pass) the lower limit switch so that the rope can be fully unwound from the drum
• Lower the hook onto a stable working-platform.
• Remove the rope guide, see section “Rope guide, Assembly” for details.
• Pull, with a gloved hand, the rope down from the drum, until the last turn.
• Switch OFF the power supply to the crane.
• Extract the rope anchorage from the overload device, see section “Rope anchorage, Assembly” for
details and remove the rope from the anchorage.
• Pull the rope out from the hook block and return sheaves.
• Remove the rope clamps from the drum and remove the rope.
#
In some cases, it can be possible to pull the new rope on to the hoist by using the old rope and a
cable-sock. Pay special care when using this practice. Make sure there is no risk for personal
injuries and assure the new rope does not get damaged.
Re-assembly:
• Check that the new rope is compatible with the hoist. Check the rope certificate to determine whether
the rope is of the correct diameter and breaking load.
• Unroll the cable (when delivered as a roll) or use a cable-reel stand (when delivered on a drum).
Follow the principles as set out in standard ISO 4309.

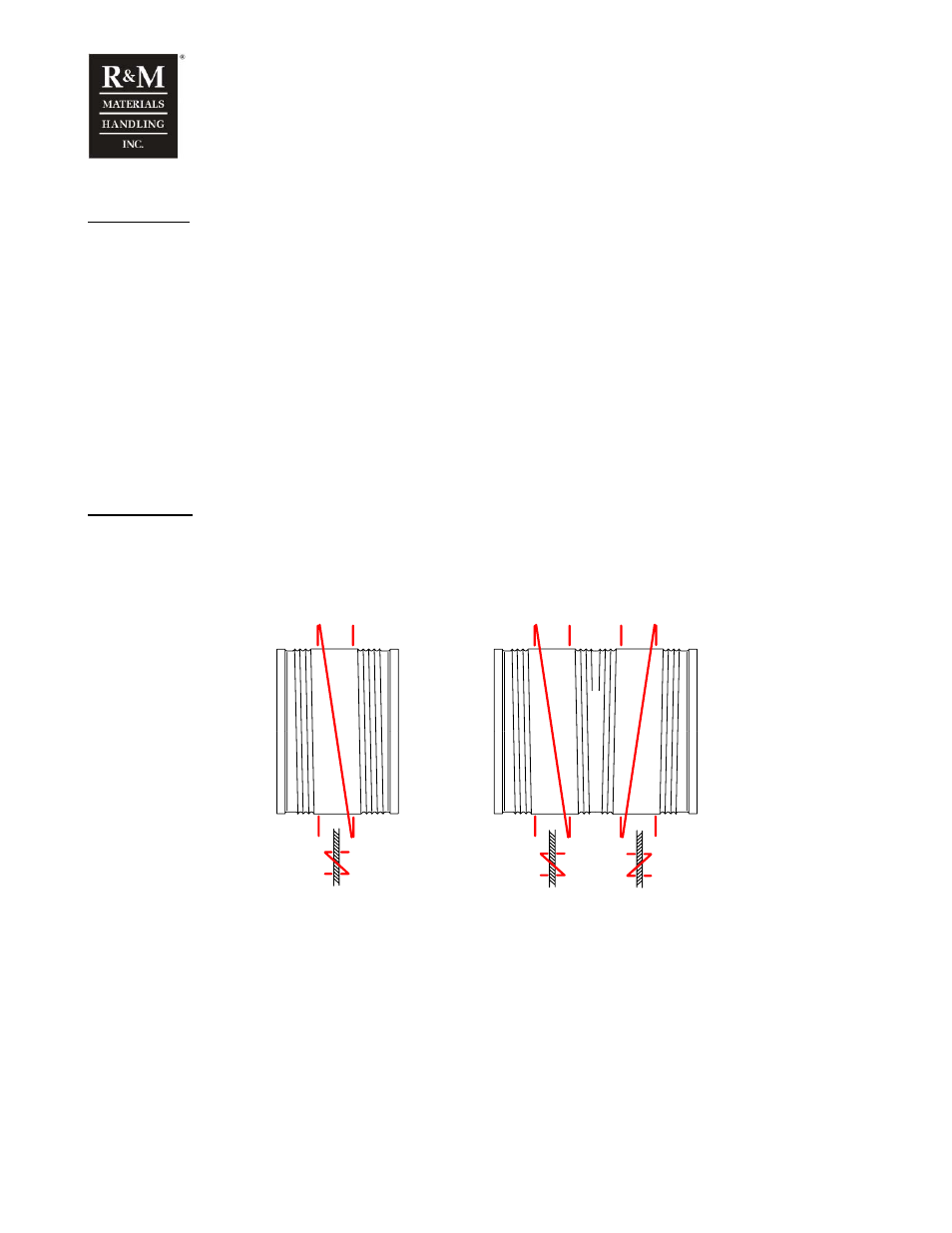

• Fasten the rope end to the rope drum with the rope clamps.
c_rorefi1a
• Switch ON the power supply to the crane.
• Run the rope onto the rope drum until enough free rope is available for the reeving, using the hoisting
motor.
• Thread the rope through the rope sheave or rope sheaves as shown in the rope reeving diagram.
• Fix the rope in the rope anchorage, tighten it and fasten the rope clamp on the free end of the rope.
!
Place the rope in the rope anchorage the right way around.
• Place the rope anchorage in its suspension point. Fix the locking pins.
• Always adjust and check the limit switch for hoisting after replacing the rope. See section “Hoisting
limit switch, Adjustment” for details.
