6.7.1 Outfitting the hoist
• Install the power supply. Refer to the section “Connecting the to mains network”.
• Adjust the limit switch for hoisting. Refer to the section “Adjusting hoisting limit switch”.
• Carry out the commissioning inspection and complete the commissioning log. Refer to the section
“Commissioning”.

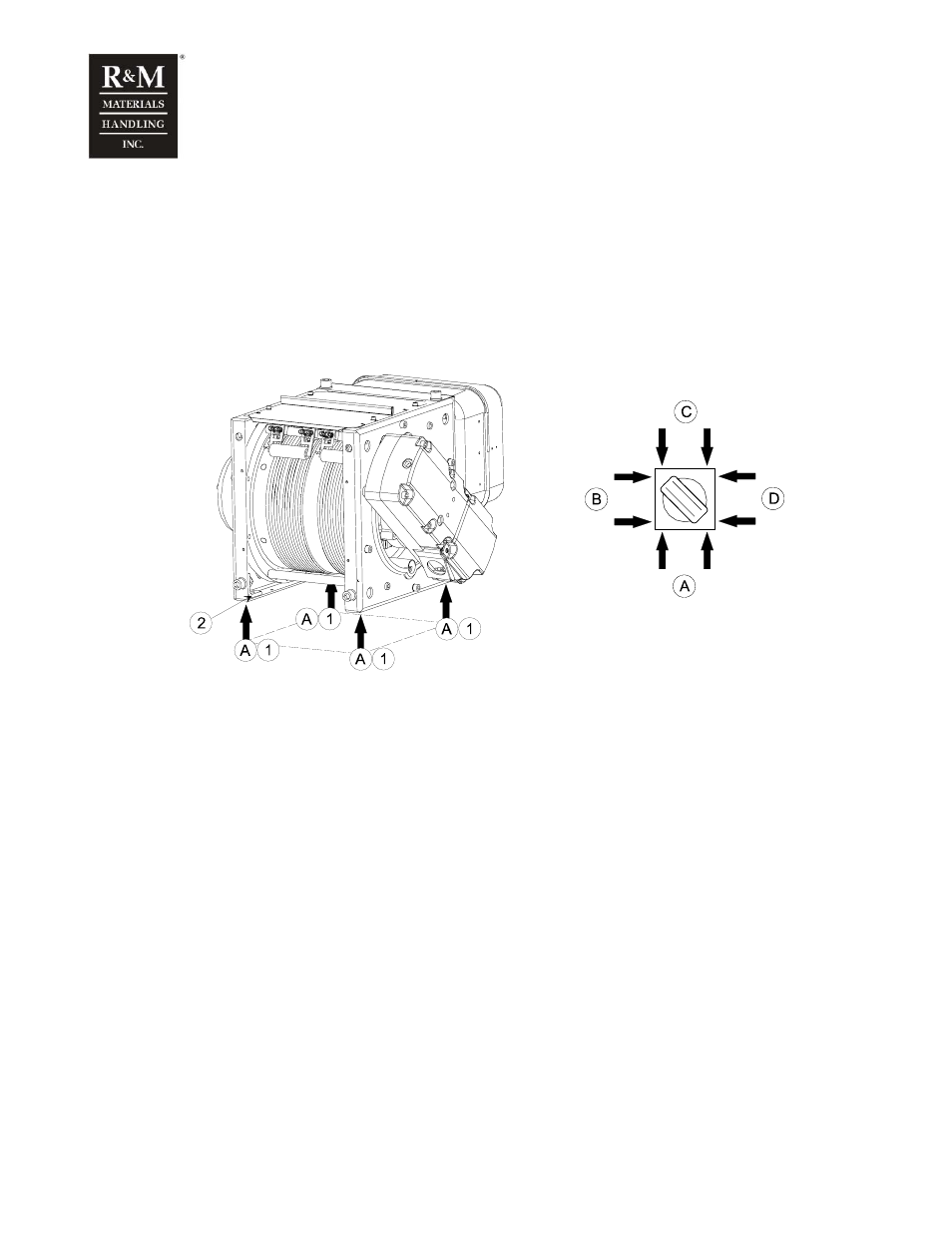

6.8 Installing the hoist, machinery hoist
c_hmv3b
• Remove the temporary transport supports. Take the hoist out of the packing and move it to the
installation site.
• Check that the fixing holes in the site of location match the fixing holes (1) in the hoist.
• Change electric cubicle position if needed.
#
All fixing directions A, B, C and D are possible. Move the fixing parts (2) to correct fixing corners.
• Lift the hoist into position. Fasten the fixing screws.
• Instal rope reeving.
!
Instal rope direction(s) according to manufacturer’s instruction. Be in contact with
authorised hoist service.
6.8.1 Outfitting the hoist
• Install the power supply. Refer to the section “Connecting the to mains network”.
• Adjust the limit switch for hoisting. Refer to the section “Adjusting hoisting limit switch”.
• Carry out the commissioning inspection and complete the commissioning log. Refer to the section
“Commissioning”.
