Disassembly:
• Lower the hook onto a stable working-platform. Pull with a gloved hand some extra rope down from
the drum, so that the hook-block is free. If needed, adjust the lower limit switch.
• Switch OFF the power supply to the crane.
• Remove the shaft locking parts (5).
• Extract the shaft (5) and the rope sheave (4) from the shaft support (3).
Re-assembly:
• Insert the sheave (4) and the shaft (5) into the shaft support (3)
• Lock the shaft with the locking screws.
• Tighten all fixing screws to the required torque.
• Switch ON the power supply to the crane.
• Raise the hook block. Carefully guide the rope with a gloved hand until the hook block hangs free
from the working platform.
• If the lower limit switch has been adjusted, re-adjust to the correct position.
• Test the operation of the hoist.

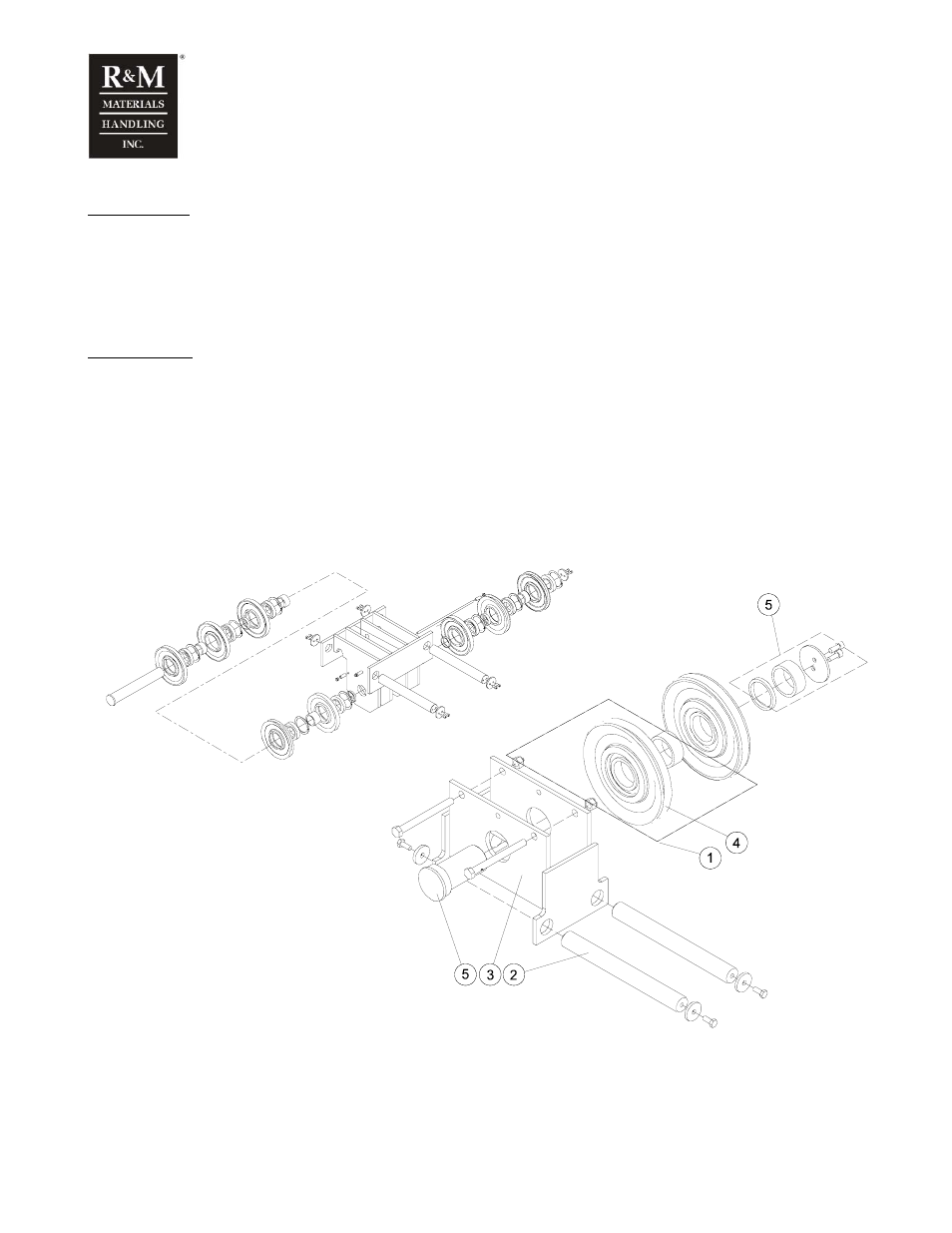

Return sheave, all other models
c_rosh01c
Note: The actual outlook may vary, depending on the size!
2. Support shaft
3. Support frame
4. Rope sheave
5. Sheave shaft, sleeves and locking parts
