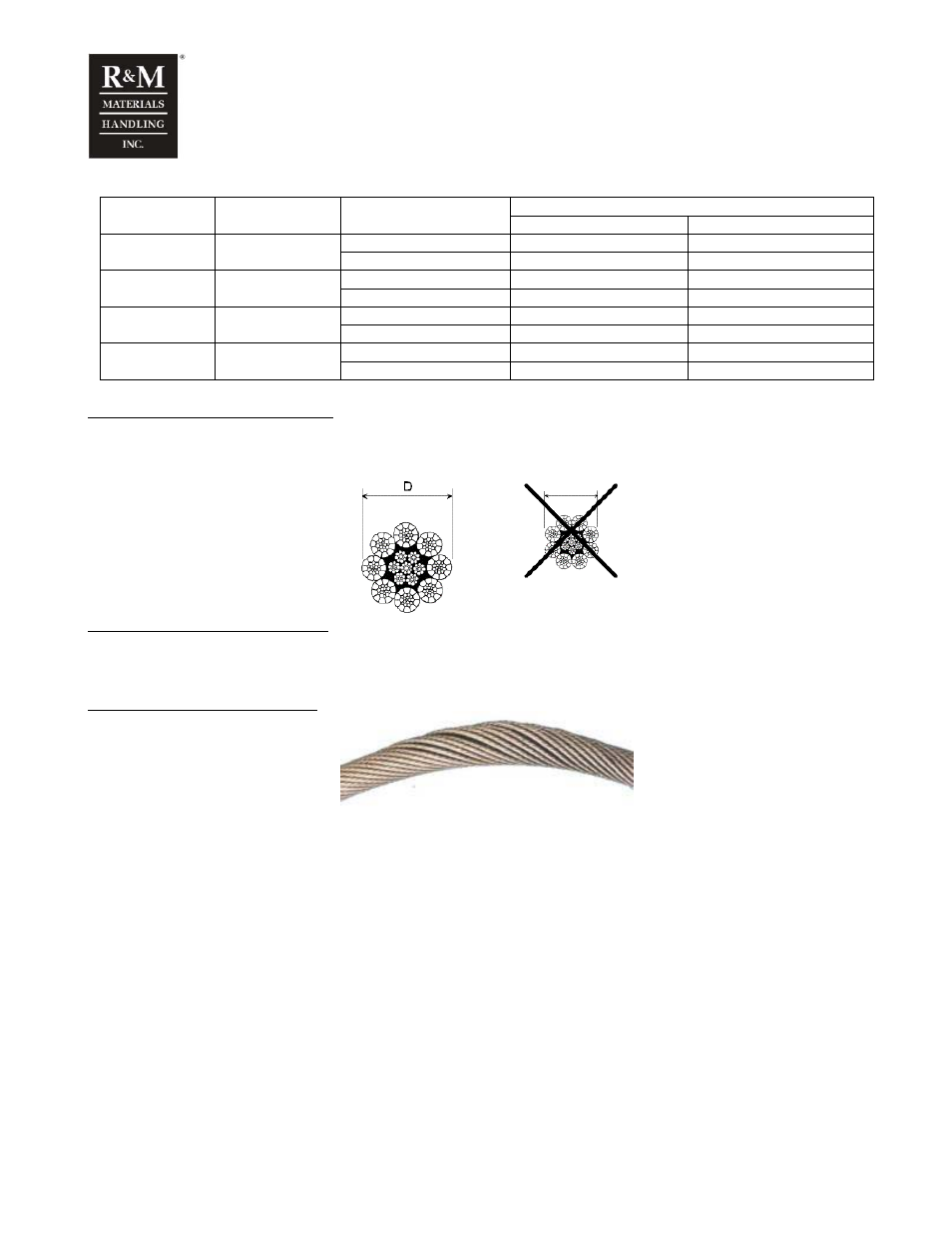

Rotation Resistant Ropes
Maximum wire breaks Rope diam.
Mm
Rope
construction
Detected length mm
Duty class M4 Duty class M5, M6
40 2 4
6.7 17 x 7
200 4 8
50 2 4
8 – 8.5 24 x 7
250 4 8
70 2 4
11 – 11.5 28x 7
350 4 8
90 2 4
15 28 x7
450 4 8
Local reduction of rope diameter
Rope diameter can decrease due to external or internal wear or damage. When the actual diameter of a
standard or heavy duty rope has decreased 7 % of the nominal diameter the rope shall be changed. In
rotation resistant ropes the decrease by 3% cause rope discard.
Local increase of rope diameter
Deformations inside the rope can cause increase of rope diameter. If the actual rope diameter is
increased by 5%, the rope shall be changed.
Basket (birdcage) deformation
Basket deformation is a result of a difference in length between the rope core and outer strands. Rope
with basket deformation shall be changed immediately.
