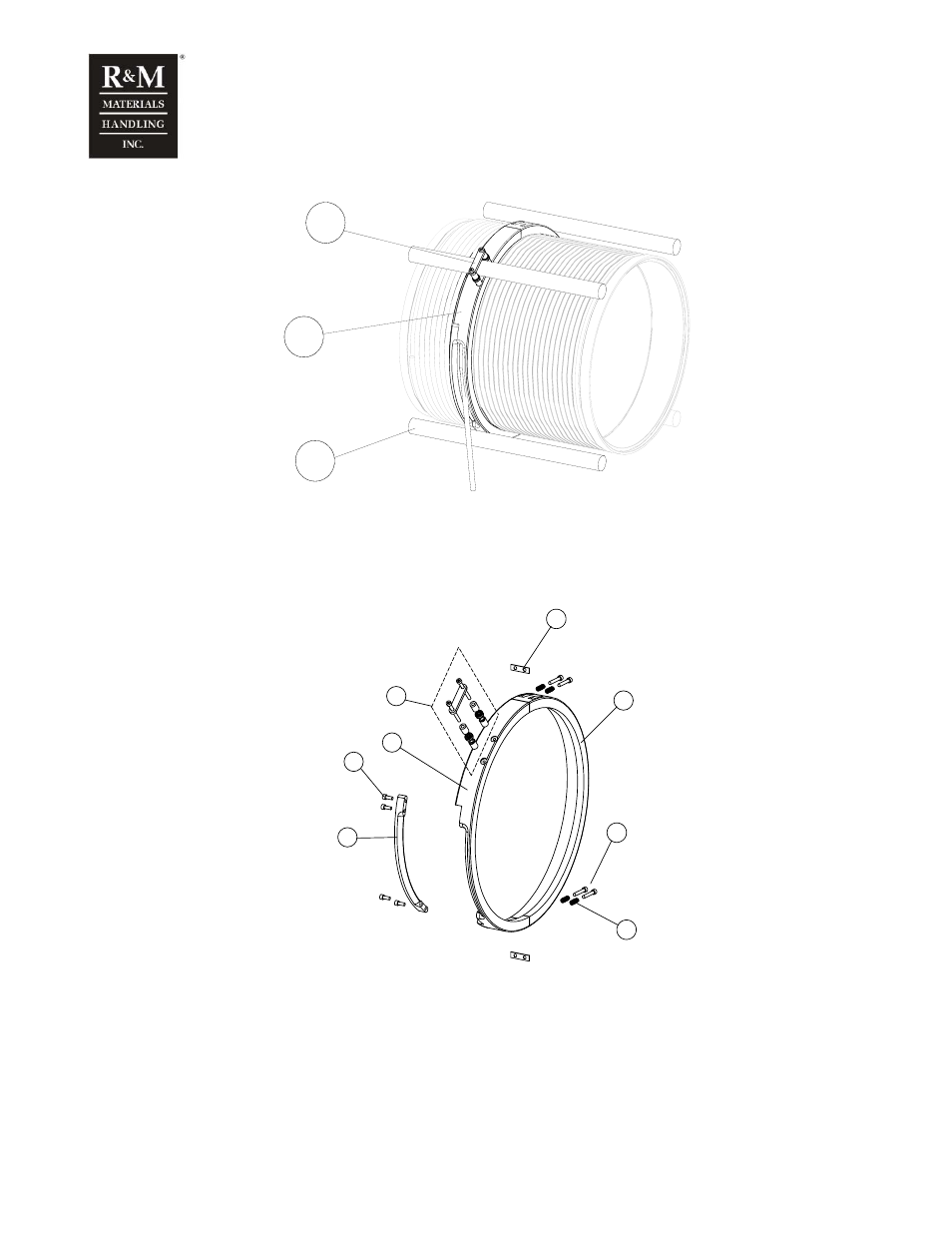

Rope guide, drum size φ 608 mm
1
2
3
c_qderogu3a
1. Connector rod for end flanges of hoisting machinery
2. Rope guide
3. Rotation support
Rope guide assembly, drum size ø 608 mm
c_qderoqu2a
5
2
7
8
3
6
1
4
1. Rim, front half
2. Rim, rear half
3. Rope slot locking bar
4. Rotation support
5. Rim spacer
6. Locking bar fixing screws
7. Rim fixing screws
8. Springs
!
Fully disassemble the rope guide before installation
