5 Construction

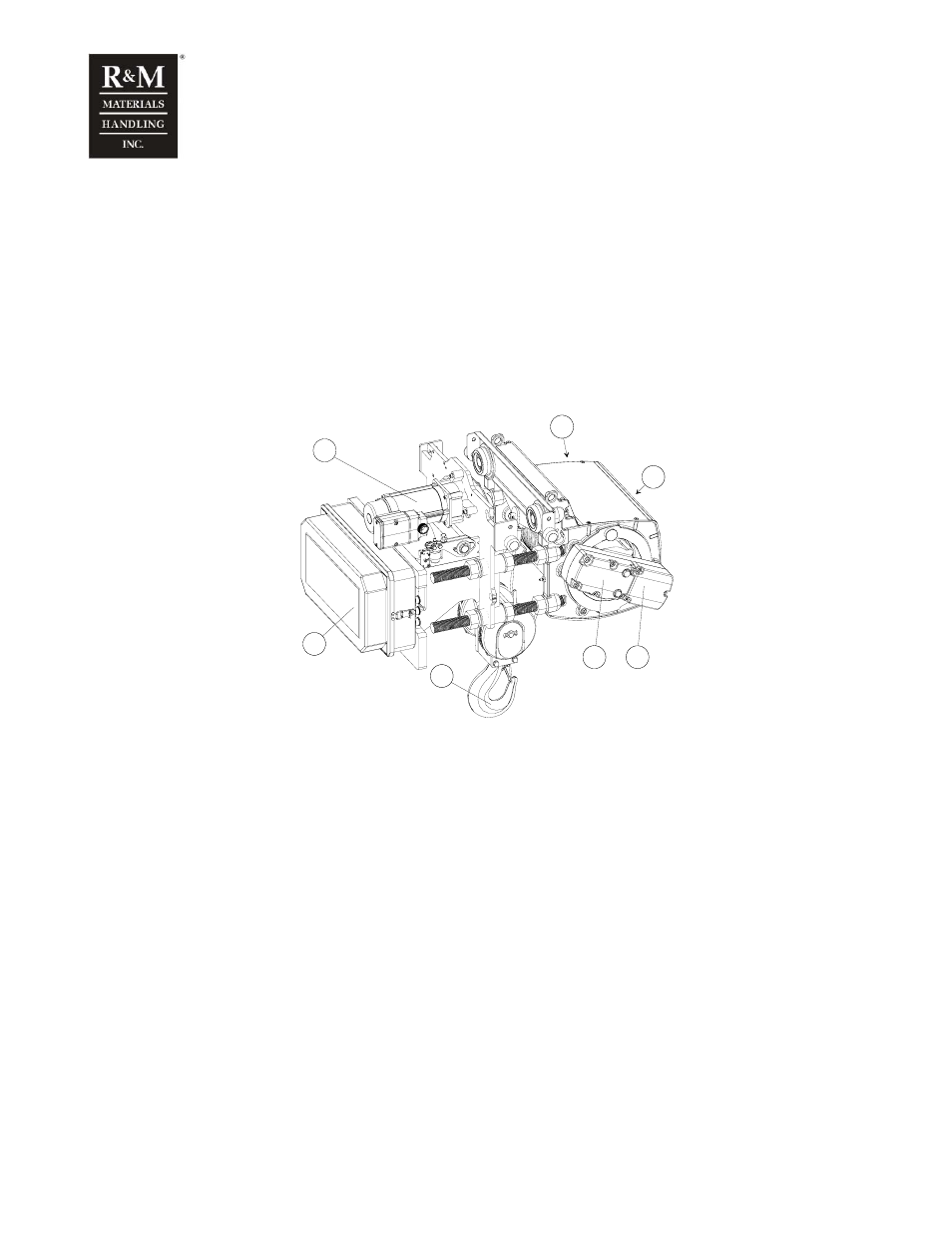

5.1 Low Headroom Trolley Hoist
The low headroom hoist trolley is a hoist model that is installed on the bottom flange of the main beam.
The low headroom hoist allows maximum effective use of the available lifting height.
Drum size ø 243 mm
c_zlatr01c
1
2 3
4
5
6
7
1. Hoisting motor and brake
2. Hoisting gear
3. Connection box
4. Rope drum
5. Electric cubicle
6. Hook-block
7. Travelling machinery
