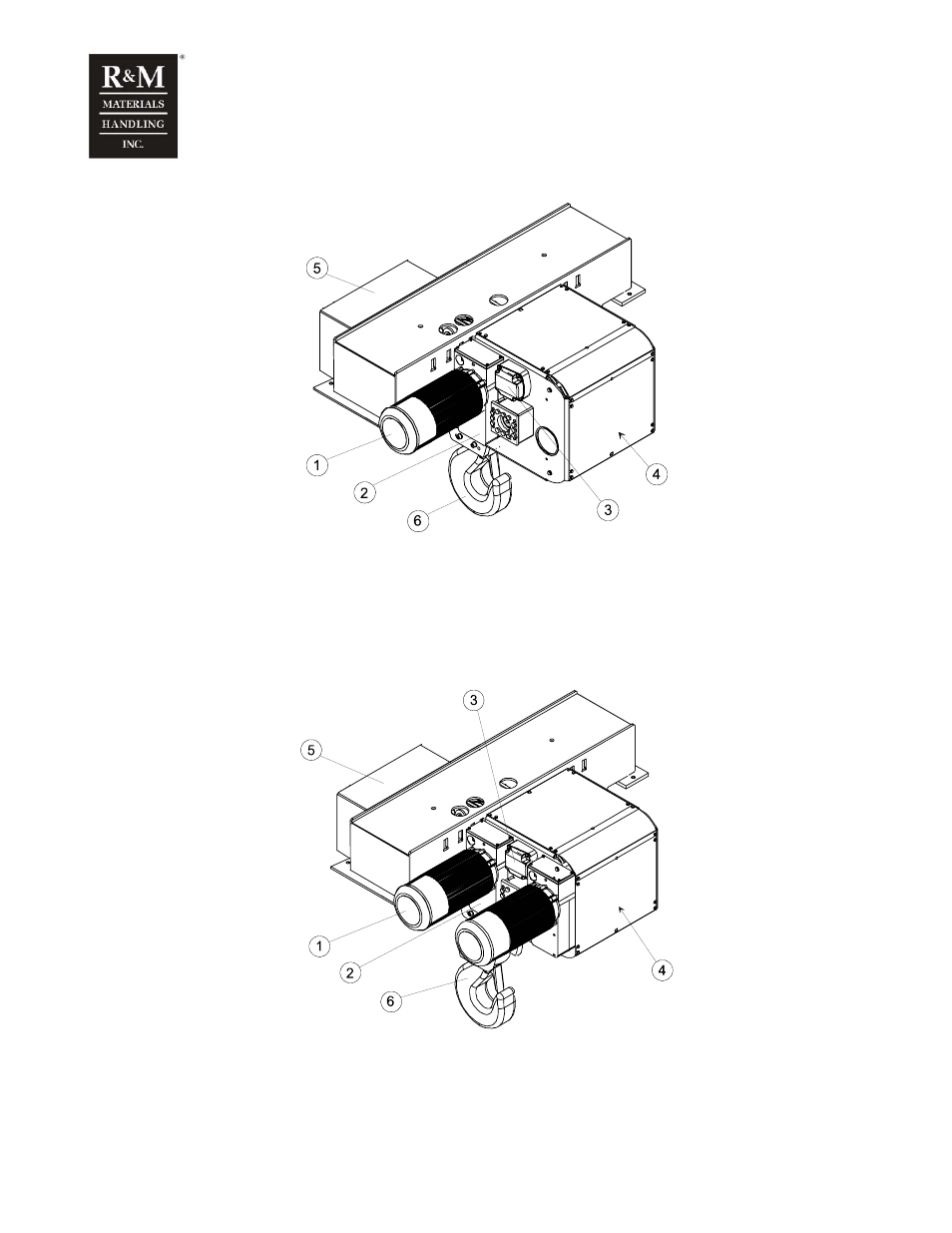

Drum size φ 608 mm
c_datr7a
1. Hoisting motor and brake
2. Hoisting gear
3. Connection box
4. Rope drum
5. Electric cubicle
6. Hook-block
Drum size
φ 608 mm (two motors)
c_datr8a
1. Hoisting motor and brake
2. Hoisting gear
3. Connection box
4. Rope drum
5. Electric cubicle
6. Hook-block
