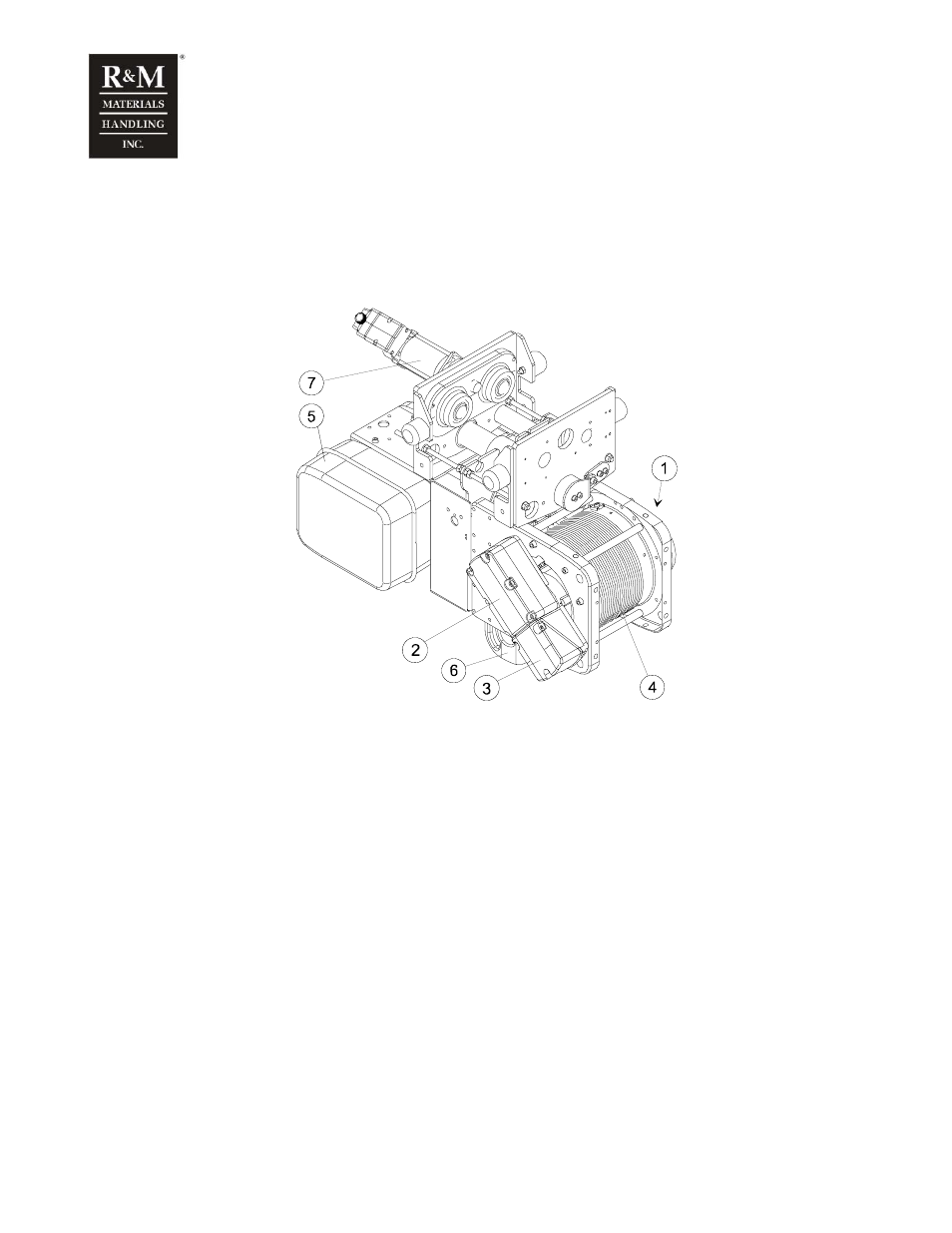

5.3 Normal Headroom Trolley Hoist
The normal headroom trolley hoist hangs under a single beam. Normal headroom trolleys can be used
with straight or curved beams.
Drum size
φ 303/355 mm
c_r1natr1d
1. Hoisting motor and brake
2. Hoisting gear
3. Connection box
4. Rope drum
5. Electric cubicle
6. Hook-block
7. Travelling machinery
