Disassembly
• Loosen fixing screws (1).
• Remove bearing housing and second half of sleeve on both ends of rope guide.
• Remove first halves of sleeves
• Remove rope guide
#
Note that 1 of 3 screws is longer, this should be located closest to the drum.

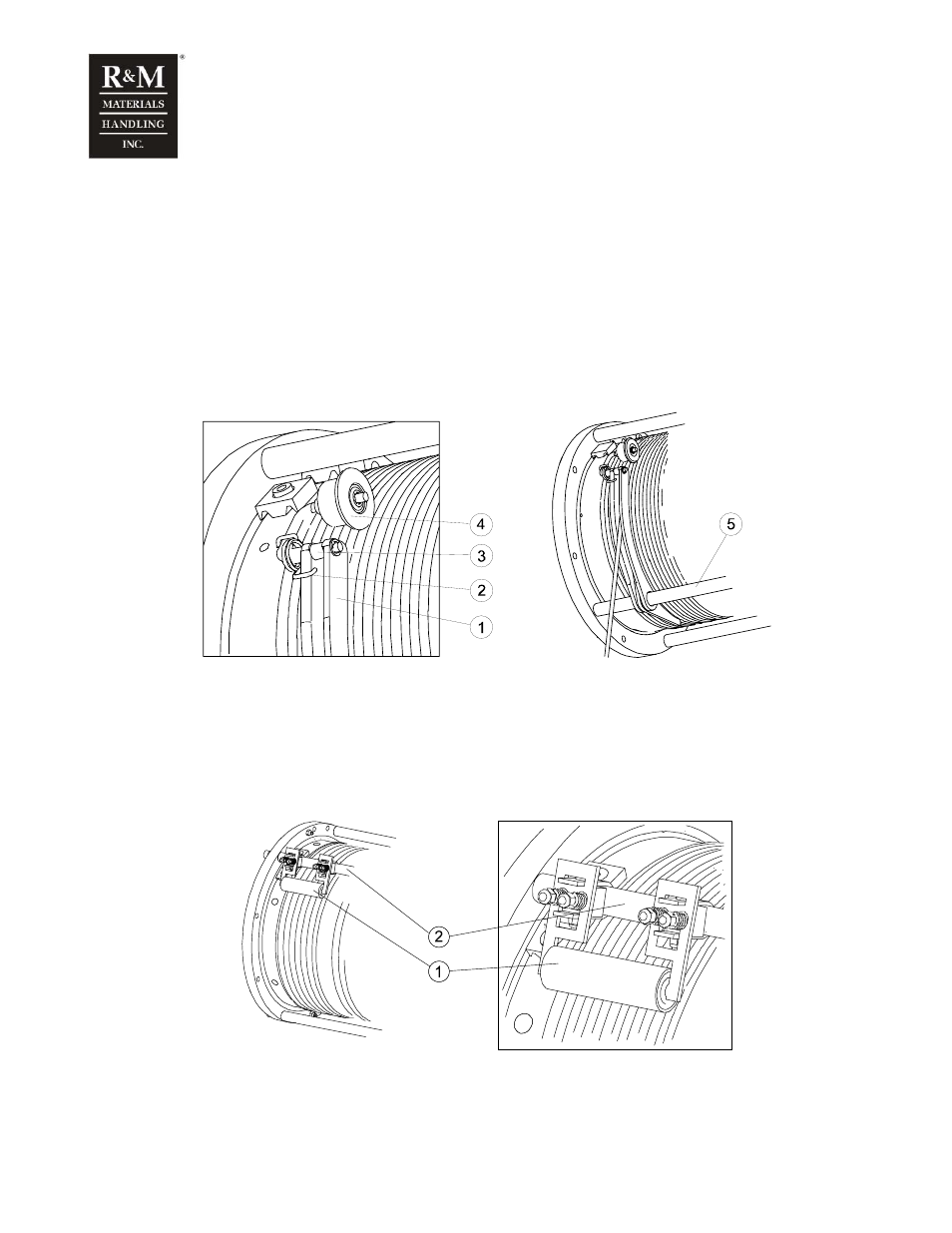

Rope guide, drum size ø 303, 355, 406 mm
c_r1rq1f
1. Rope guide
2. Rope press roll spring
3. Rope press roll axle
4. Rope press roll
5. Connector rod for end flanges of hoisting machinery
Pressure roller, machinery hoists
c_r1rq2f
1. Rope press roll
2. Connector rod for end flanges of hoisting machinery
