Re-assembly:
• Insert the rope into the rope anchorage
!
Make sure the rope enters the anchorage in the correct direction. See section: “Rope
Anchorage, Service” for details
• Insert the wedge into the rope anchorage, making sure that a length of at least six times the rope
diameter protrudes from the anchorage.
• Pull the rope firmly into the rope anchorage, so that the shaft easily fits into the suspension hole.
• Place the rope anchorage into the overload device and insert the shaft with the washers.
!

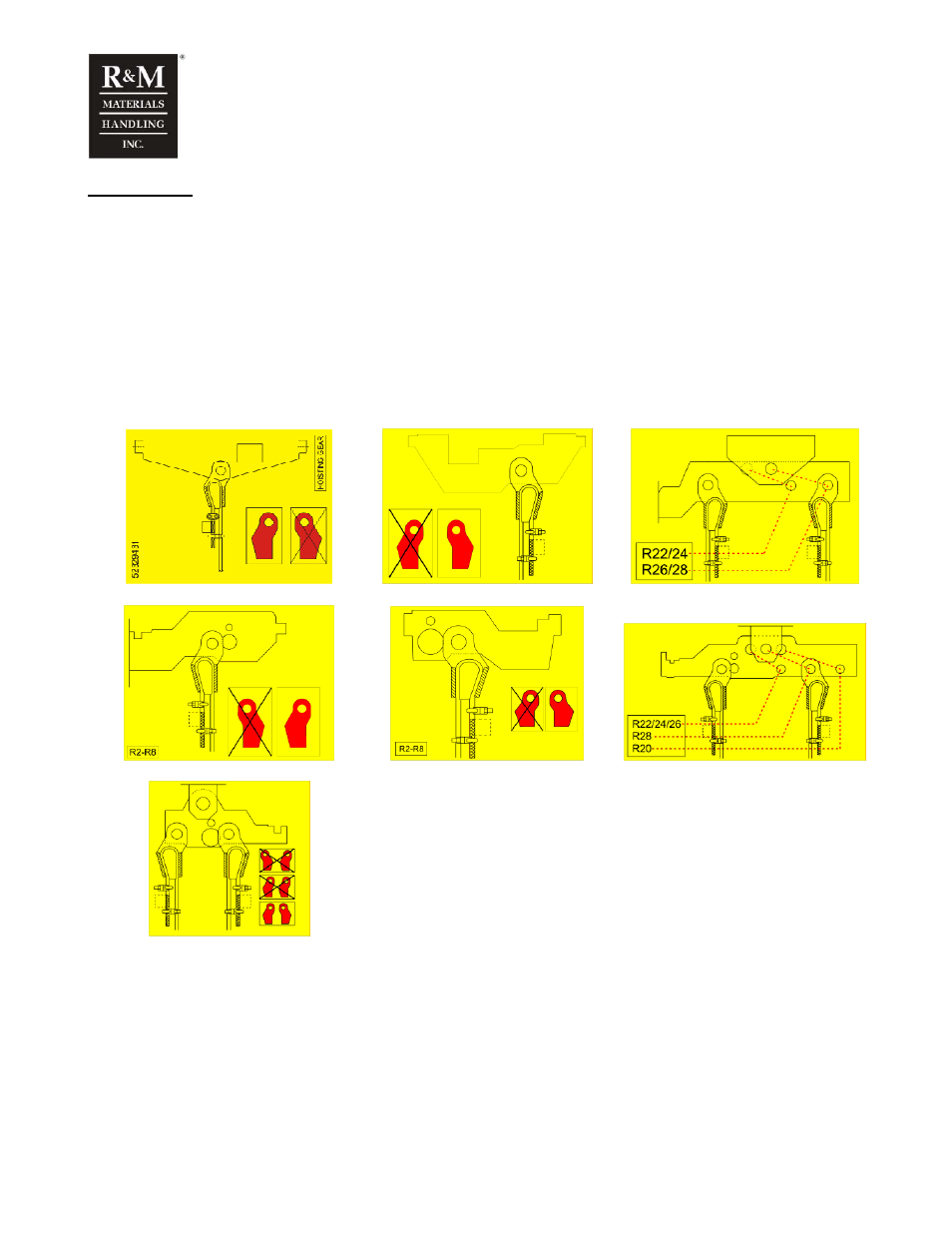

It is important that the rope anchorage is correctly mounted in the overload device. See the
below table for details:
Drum φ 243 Drum φ 303 and φ 355 Drum φ 406
Drum φ 406 Drum φ 608 Drum φ 608
Drum φ 608
• Assemble the rope clamps on the protruding end of the rope and insert the split-pin. Bend the split-pin
open.
#
Insert NEW cotter pin, DO NOT reuse a removed cotter pin.
