R&M Materials Handling WIRE ROPE HOISTS Service - Manual (Page 77)

R&M Materials Handling, Inc.
4501 Gateway Boulevard
Springfield, Ohio 45502
P.: (937) 328-5100
FAX: (937) 325-5319
77/130
R&M Materials Handling, Inc. reserves the right to alter or amend the above information without notice.
1
4
3
2
C_rowh2b
A

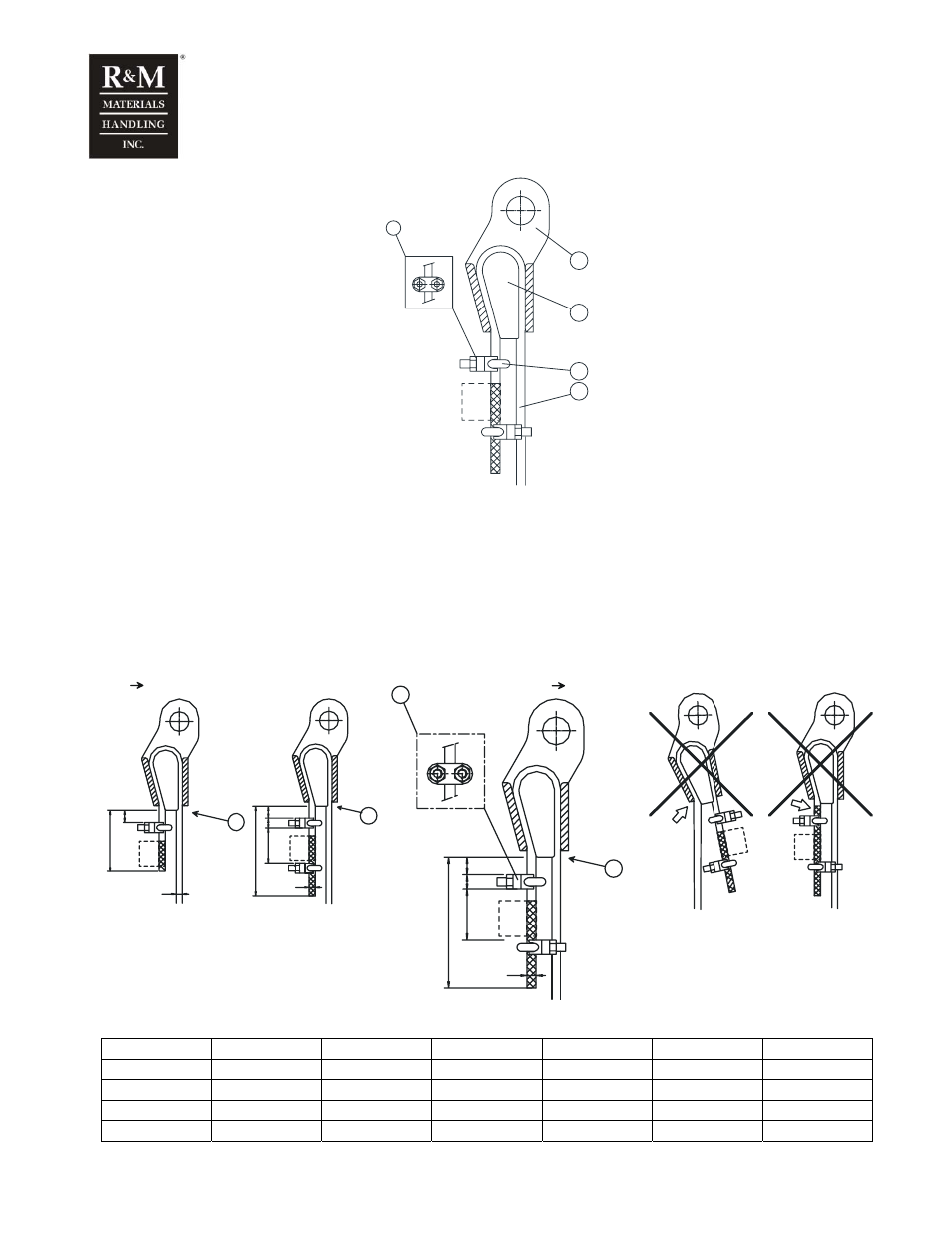

1. Rope
2. Rope anchorage
3. Wedge
4. Rope clamp
A. Rope drum
φ 243 mm
5.28.1 Service
c_rowh3c
6
xd
1x
d
A
D
A
L2 L4
H
L1
D
L2
L4
H
L1
D
A
1
04.2004 04.2004 - 01.2005 01.2005
1. Rope drum φ 243 mm
D L1 minimum L2 minimum L4 H Thread Torque
[mm] [mm] [mm] [mm] [mm] [Nm]
6-7 15 100 65 12 M5 4
8-9 15 125 65 14 M6 8
11-12 25 165 65 18 M8 10
