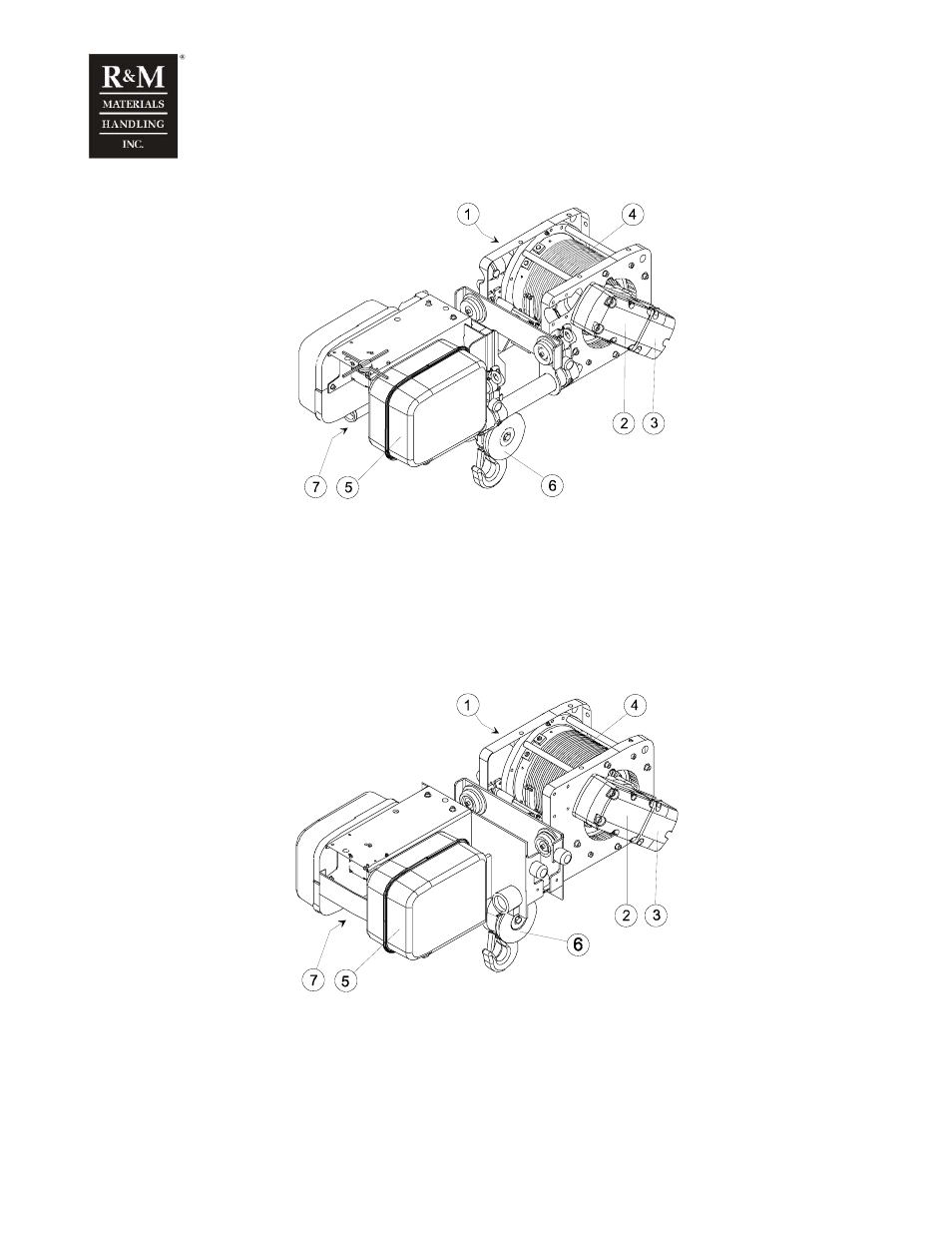

Drum size φ 303/355 mm
c_r1latr1d
1. Hoisting motor and brake
2. Hoisting gear
3. Connection box
4. Rope drum
5. Electric cubicle
6. Hook-block
7. Travelling machinery
Drum size
φ 303 mm, low profile
c_jtrol1c
1. Hoisting motor and brake
2. Hoisting gear
3. Connection box
4. Rope drum
5. Electric cubicle
6. Hook-block
7. Travelling machinery
