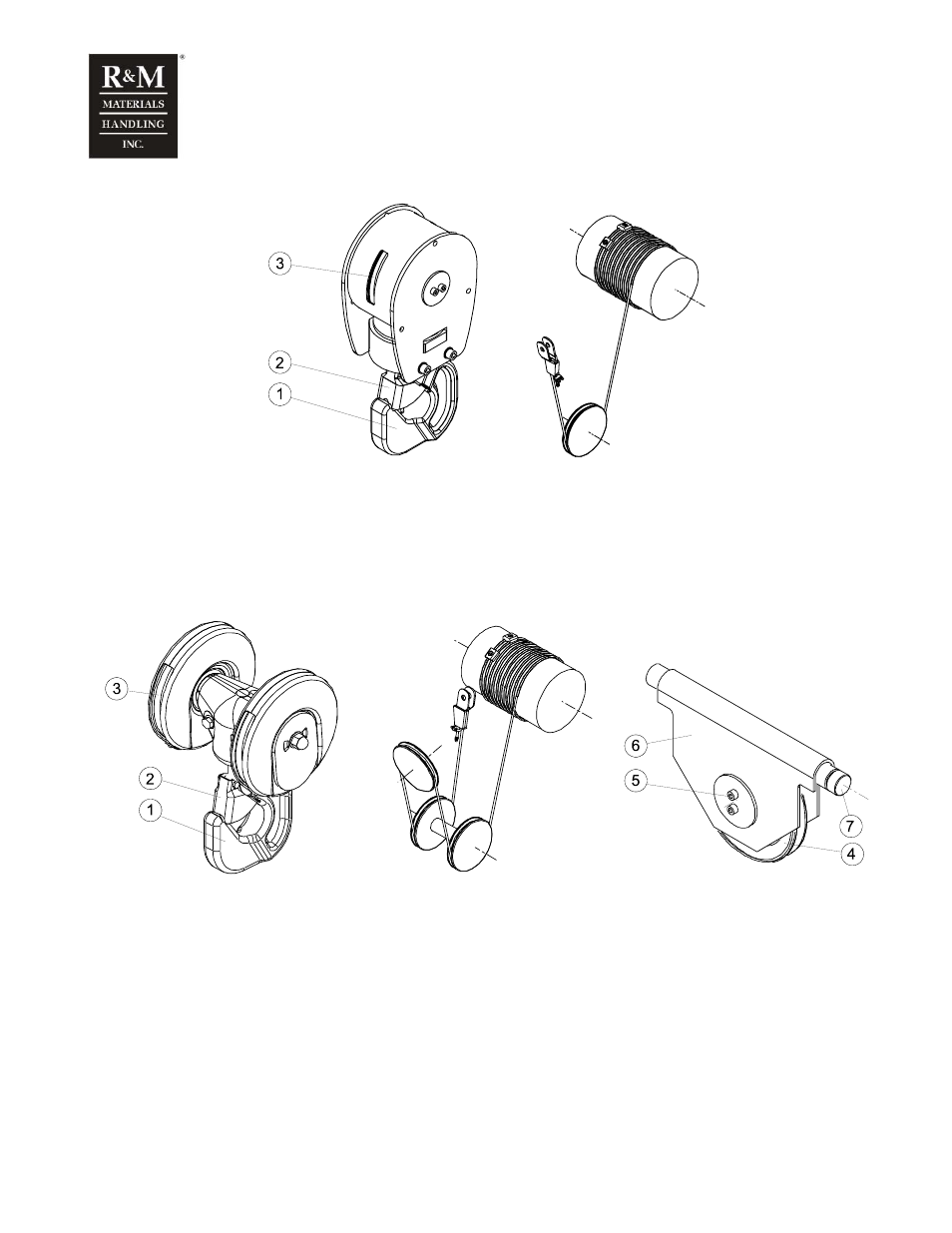

2-fall, 1-rope reeving, drum size φ 608 mm
c_hbresh02v2a
1. Hook forging
2. Safety-catch
3. Rope sheave
4-fall, 1-rope reeving, drum size
φ 303/355/406 mm
c_hbresh04v1a
1. Hook forging
2. Safety-catch
3. Rope sheave
4. Return sheave
5. Return sheave shaft
6. Support frame
7. Support frame shaft
