88/130
R&M Materials Handling, Inc. reserves the right to alter or amend the above information without notice.
Note: Safety latch on HBC forging decreases dimension a
2
about 5 mm and about 15mm on RSN forging.
Hook forging standard
RSN HBC
Dimension standard DIN 15401 Oversized DIN 15401
Material standard DIN 15400 DIN 15400

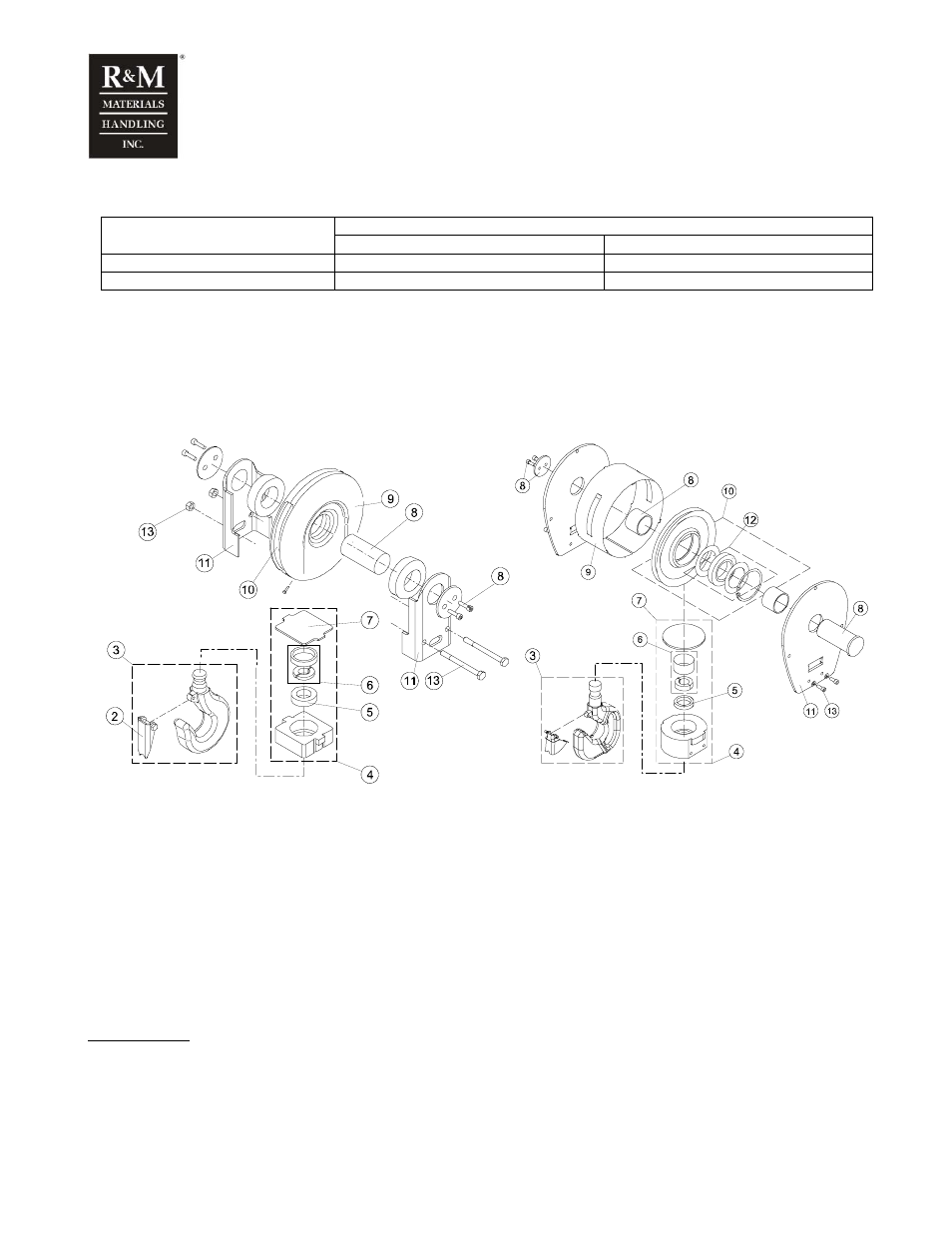

5.29.2 Hook block assembly
Hook block 2-fall, 1-rope reeving
c_hb02as2b_005170_004725
2. Safety latch set
3. Hook forging.
4. Bearing set
5. Thrust bearing
6. Locking set
7. Cover plate
8. Shaft assembly
9. Sheave cover plate
10. Rope sheave
11. Side plate
12. Rope bearing sheave set
13. Hook block fixing bolts and nuts
Disassembly:
• Lower the hook onto a stable working-platform. Pull with a gloved hand some extra rope down from
the drum, so that the hook-block is free. If needed, adjust the lower limit switch.
• Switch OFF the power supply to the crane.
• Remove the shaft fixing parts (8).
