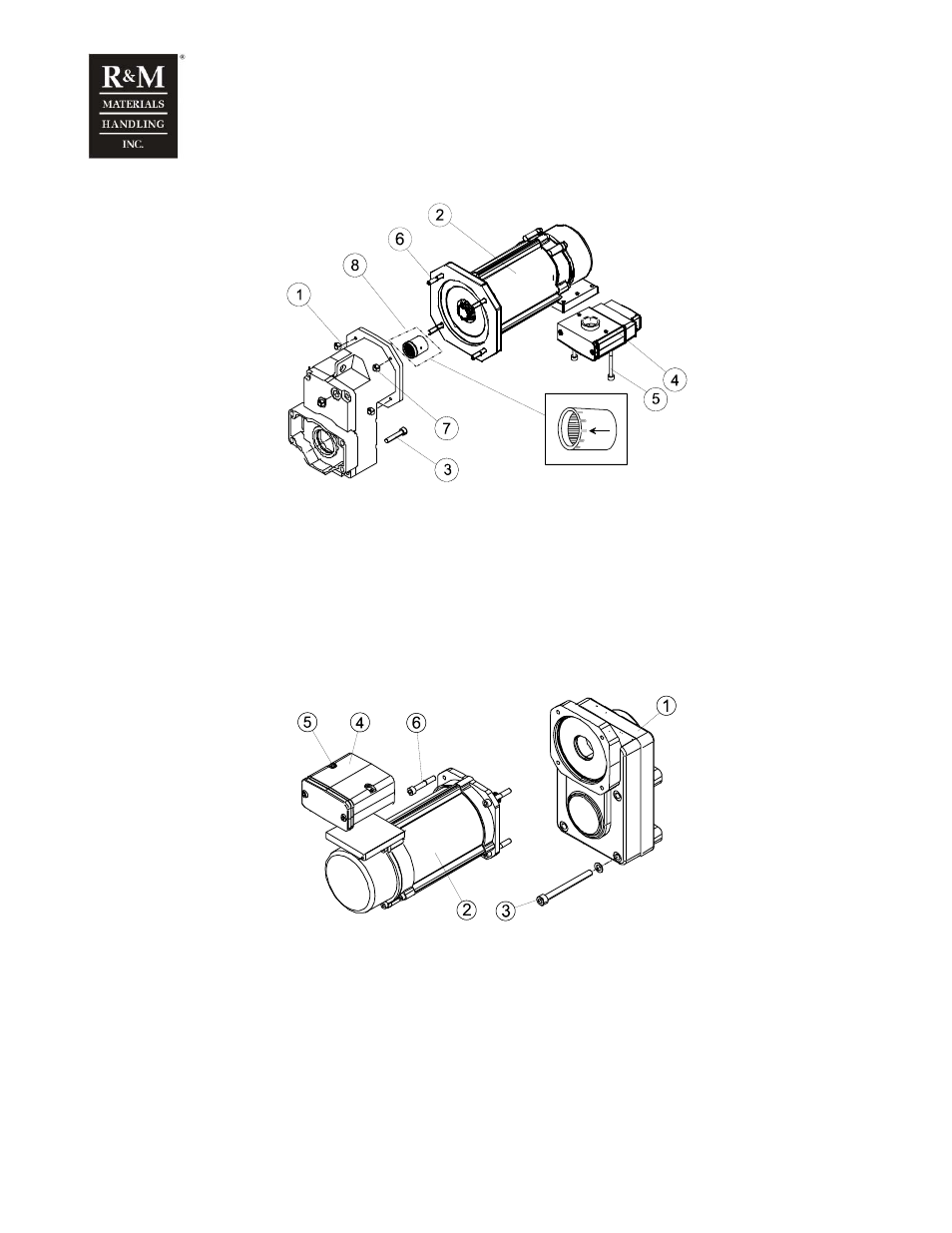

Double girder trolleys, drum size φ 303/355/406 mm
c_tmqde2a
1. Gear
2. Motor
3. Gearbox fixing screws.
4. Junction box
5. Junction box fixing screws
6. Motor fixing screws
7. Securing nuts
8. Coupling
Double girder trolleys, drum size
φ 608 mm
c_tmqde1a
1. Gear
2. Motor
3. Gearbox fixing screws.
4. Junction box
5. Junction box fixing screws
6. Motor fixing screws
