79 Chapter 5
• Universal Input and Output Module (ADAM-6024)
All Channel Configuration
ADAM-6024 module features analog input, analog output, digital input
and digital output. Click the All Channel Configuration item. In the
Status Display area, there will be two tabs: Input and Output. On the
Input tab, there are still four parts on the Status Display area, which is
the same as ADAM-6015, ADAM-6017 and ADAM-6018 module. All
the configurations in the Channels Range Configuration, Integration
Time Configuration and Calibration areas are just the same as the con-
figuration of ADAM-6015, ADAM-6017 and ADAM-6018 module.
Refer to Figure 5.10 below.

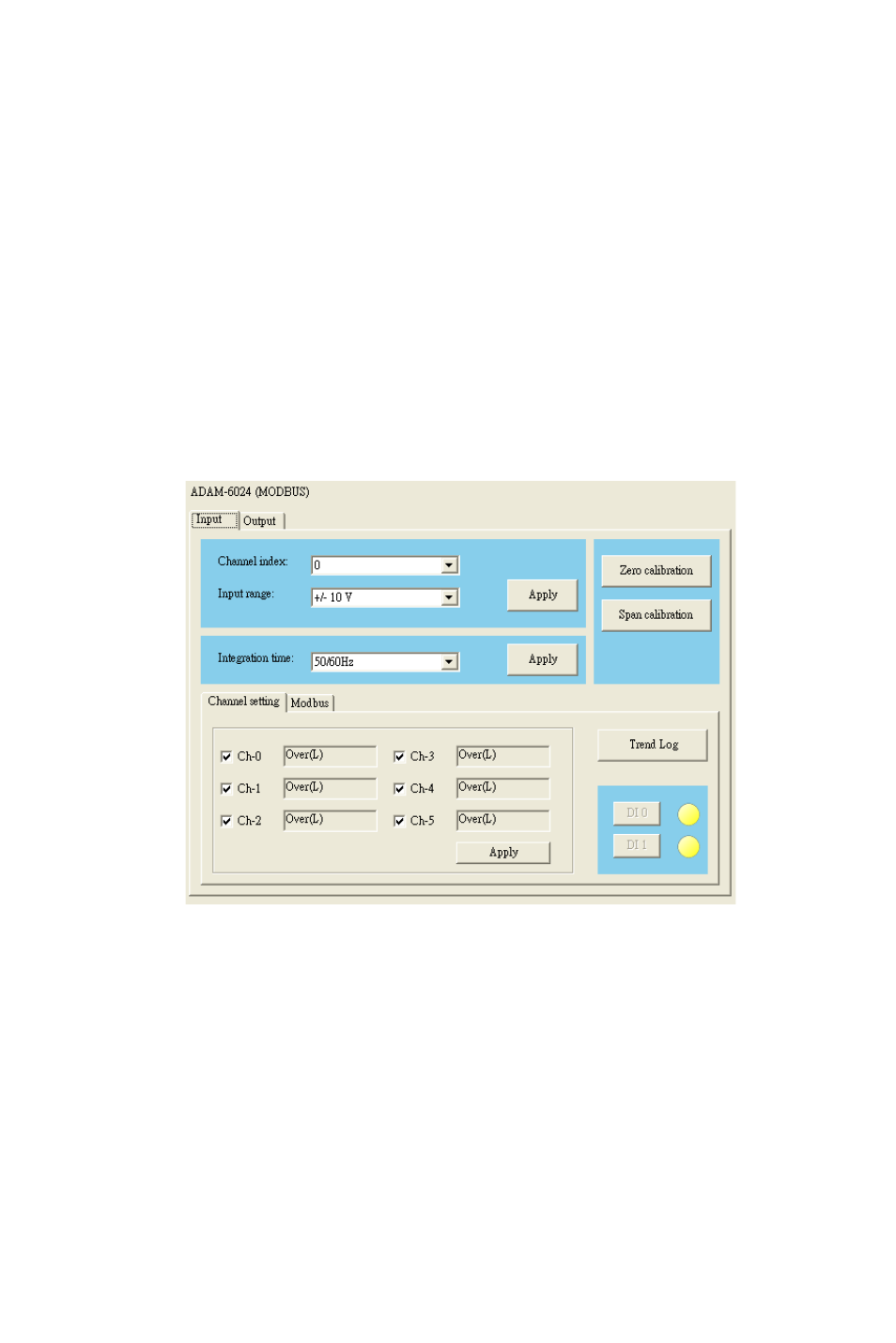

Figure 5.10: ADAM-6024 Input Tab
However, at the bottom of the Status Display area, there are only two
tabs to see analog input value of all channels: (This is because ADAM-
6024 doesn’t feature averaging, maximum and minimum calculation
function)
