ADAM-6000 Series User Manual 172

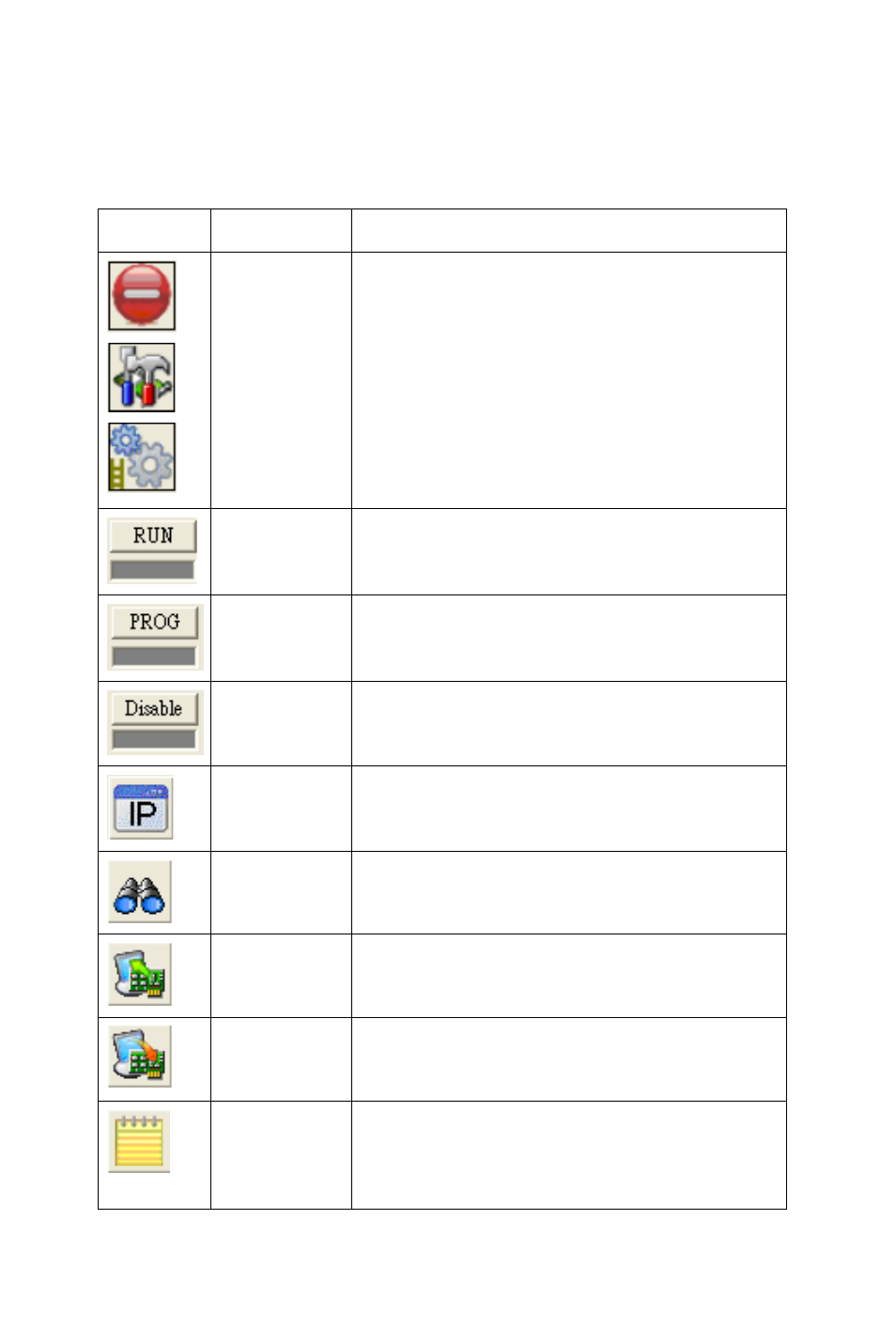

At the top of the Status Display area is the GCL Menu area. Refer to the
table below to see function for each graphical icon on the menu:
Icon Function Description
Current
Status This icon shows current GCL status. The sta-
tus represented in the Icon cell is the Disable,
Programming and Running mode (From top
to button)
Note: You cannot enable Peer-to-Peer/Data
Stream function and GCL function at the same
time. So if you want to enable GCL, Peer-to-
Peer and Data Stream function will be disabled
automatically.
Run GCL Select the Running mode. If this mode is cho-
sen, the LED below the button is lit.
Program
GCL Select the Programming mode. If this mode is
chosen, the LED below the button is lit.
Disable GCL Select the Disable mode. If this mode is cho-
sen, the LED below the button is lit.
IP Table
Configuration Click this button to configure IP table. IP table
can used to define the destination for output.
Only available in the Programming mode.
Monitoring Enable Online Monitoring. Only available in
the Running mode.
Upload Proj-
ect Upload GCL configurations from ADAM-6000
module to computer. Only available in the Pro-
gramming mode.
Download
Project Download current GCL configurations to the
ADAM-6000 module. Only available in the
Programming mode.
Project
Content Click this button to show current GCL configu-
rations. You can also save current configura-
tions into a file, or load previous configuration
from a specific file.
