ADAM-6000 Series User Manual

Help Menu:
1.

Check Up-to-Date on the Web - Choose this option, it will automat-
ically connect to Advantech download website.You can download
the latest utility there.

About Adam.NET Utility - Choose this option, you can see version
of ADAM.NET Utility installed on your computer.

Toolbar

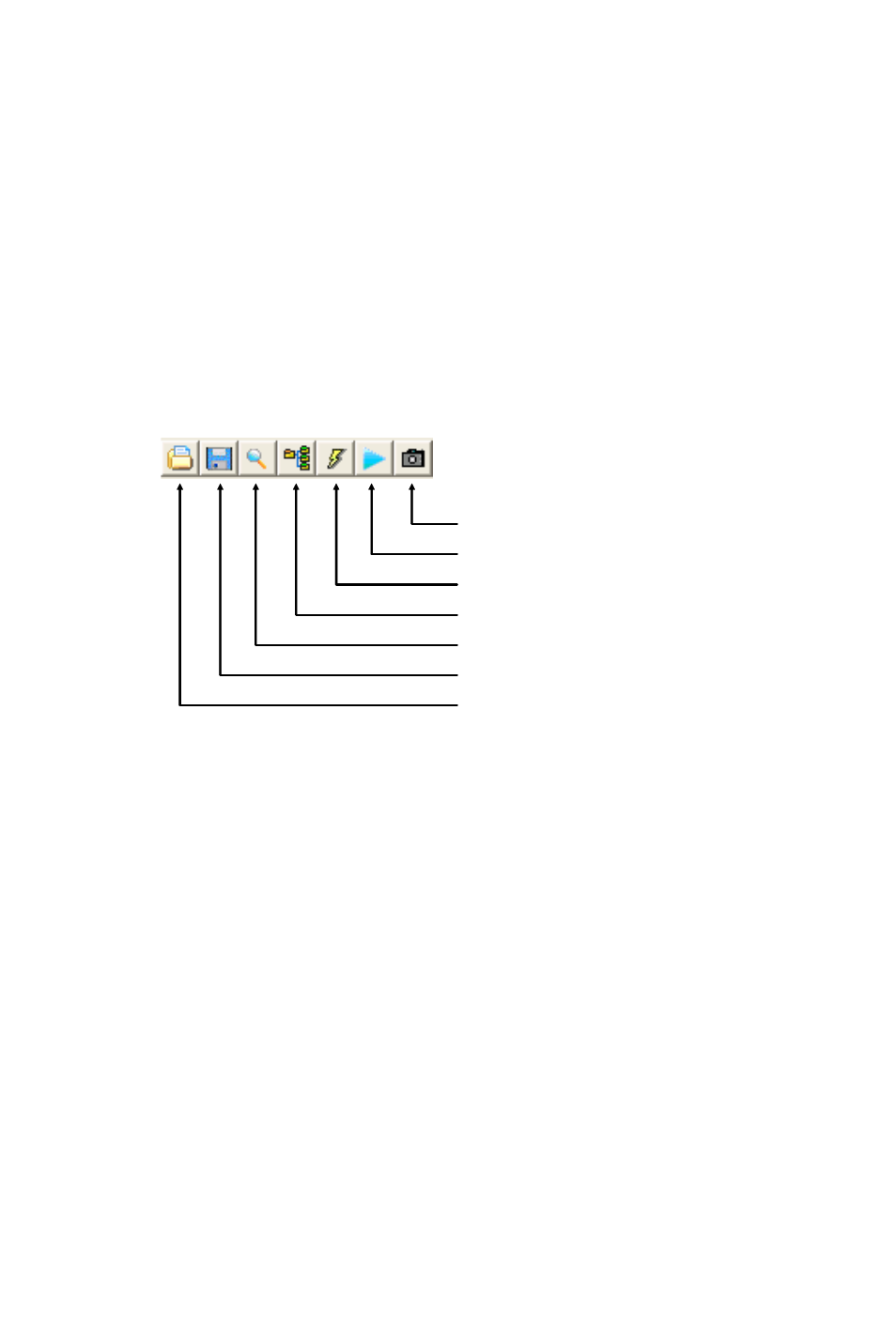

There are 7 graphical icons on the toolbar for 7 common used options of
Menus. Figure 5.2 below shows definition for each graphical icon.

Figure 5.2: ADAM.NET Utility Toolbar

Module Tree Display Area
ADAM.NET Utility is one complete software tool that all ADAM remote
I/O module and controller can be configured and operated in this utility.
The Module Tree Display is on the left part of the utility operation win-
dow. There are four categories in the Module Tree Display Area:
• ADAM4000_5000
All serial I/O Modules (ADAM-4000 and ADAM-5000 RS-485 serial
modules) connected to the host PC will be listed in this category.
• ADAM5000TCP_6000
All Ethernet I/O Modules (ADAM-6000 and ADAM-5000 TCP
modules) connected to the host PC will be listed in this category.
• ADAM-4500_5510Series
This is a DOS interface utility for remote controllers such as ADAM-
4500 and ADAM-5510 series.
