ADAM-6000 Series User Manual

26

• Operating Humidity: 20 ~ 95 % RH (non-condensing)
• Storage Humidity: 0 ~ 95 % RH (non-condensing)
• Operating Temperature: -10 ~ 70° C
• Storage Temperature: -20 ~ 80° C

Application Wiring

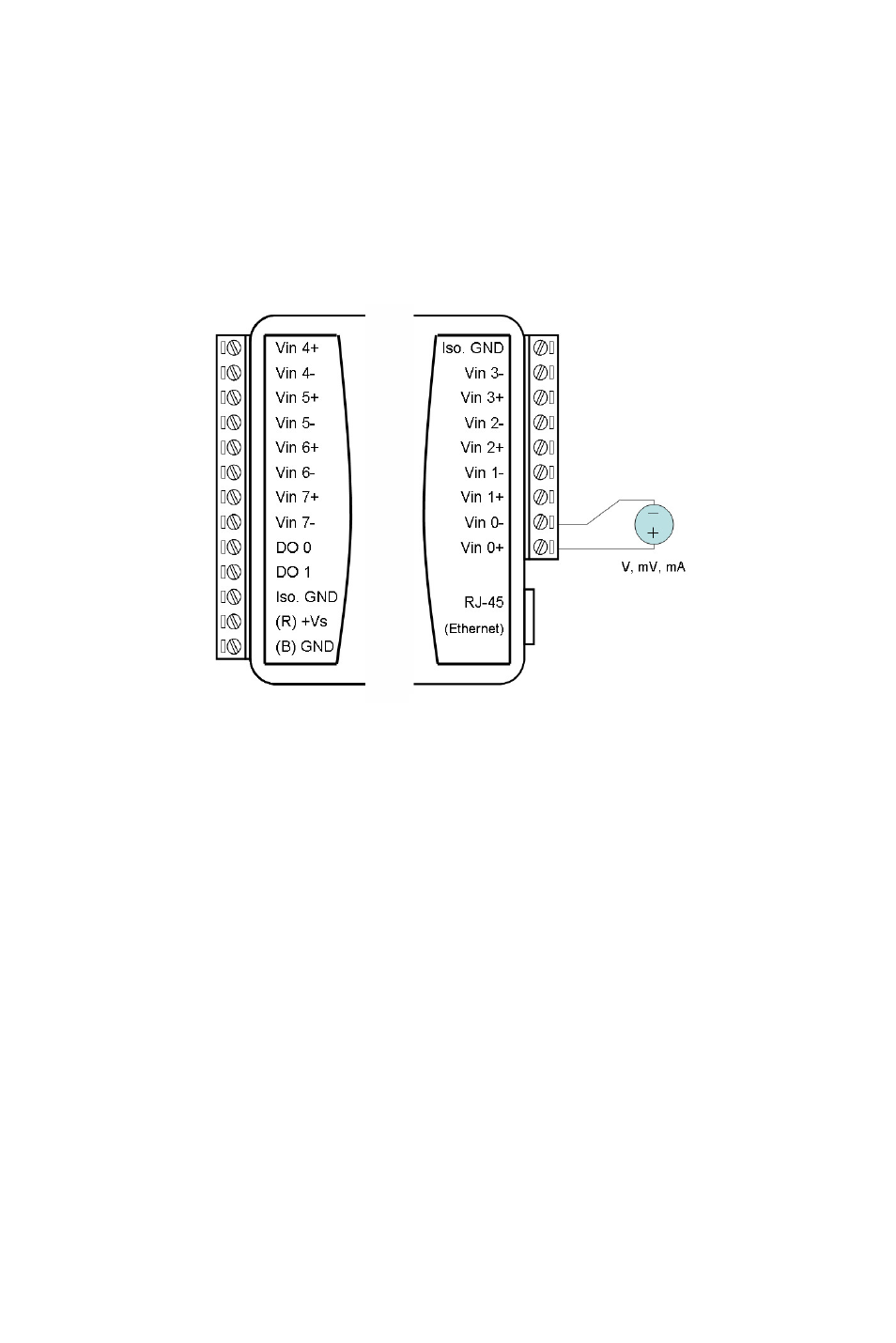

Figure 4.2: ADAM-6017 Analog Input Wiring

ADAM-6017 is built with a 120 resistor in each channel, users do not
have to add any resistors in addition for current input measurement. Just
adjust the jumper setting to choose the specific input type you need. Refer
to Figure 4.3, each analog input channel has built-in a jumper on the PCB
for users to set as a voltage mode or current mode.
