71 Chapter 5
Access Control
You can decide which computers or devices have the ability to control
this ADAM-6000 module in this tab. Select the IP Address or MAC
Address radio button to decide the identified method, and then click the
Apply button. In the Security IP/MAC Setting area, you can direct type
the IP or MAC address of the authorized computers or devices. Remem-
ber to click the Enable/Disable check box, meaning that IP or MAC
address is selected. Take Figure 5.3 as example, only the computer (or
device) with IP Address
172.18.3.52 or 172.18.3.116 can have the author-
ity to control this ADAM-6000 module. If there is no check box selected,
it means there is no security limitation that any computer or device can
control the ADAM-6000 modules. After completing typing all IP or
MAC address, click Apply or Apply all button.

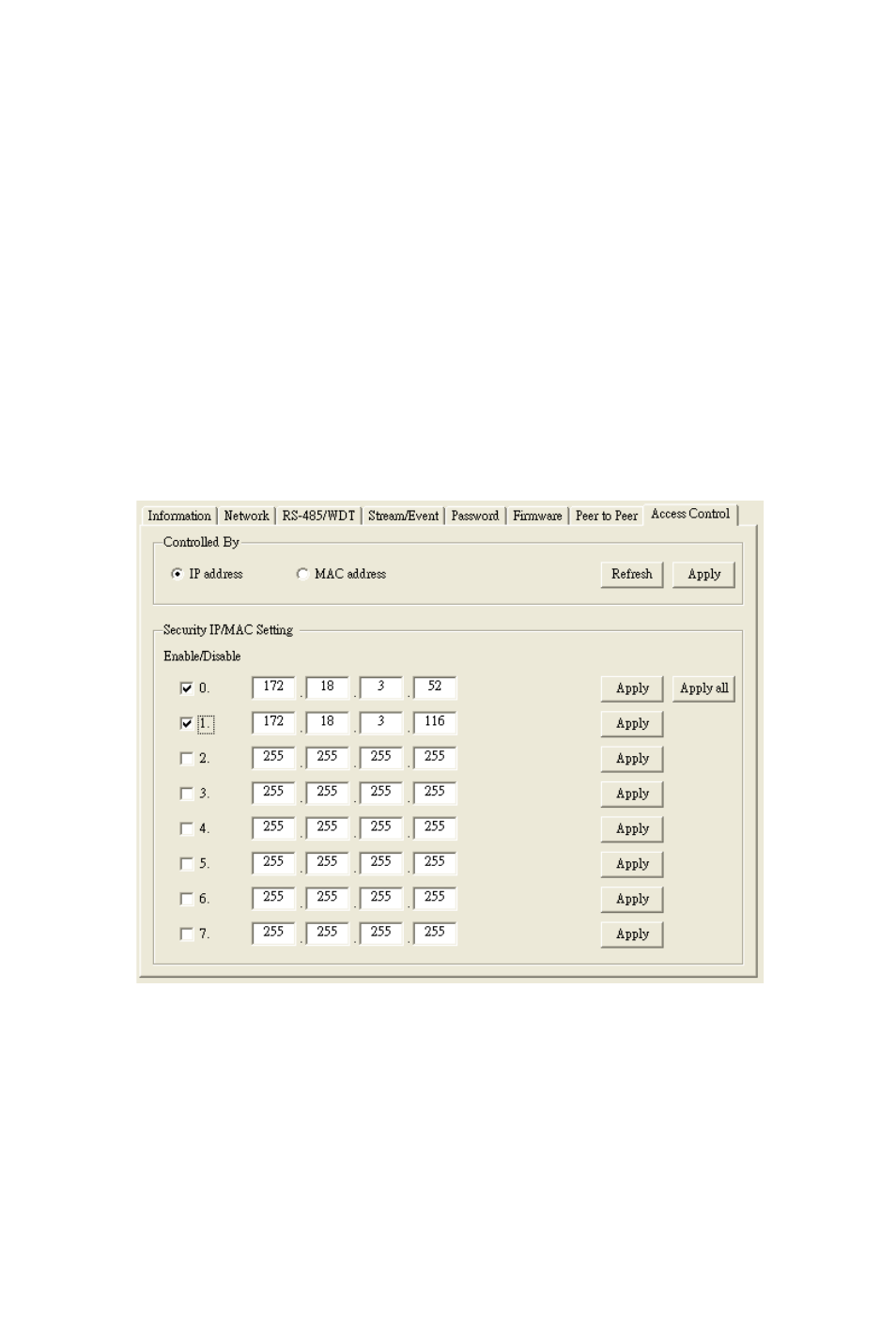

Figure 5.3: Access Control Setting
