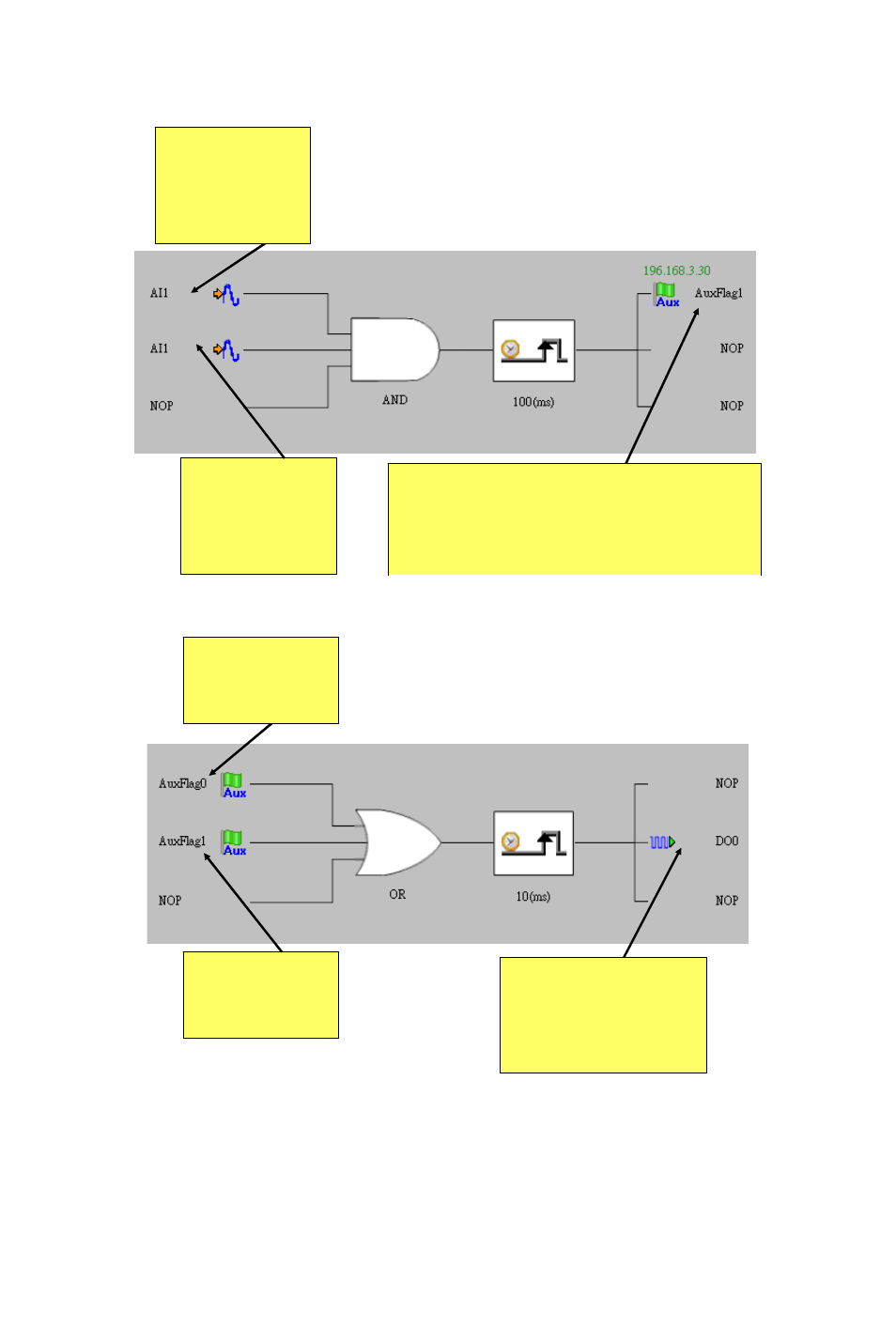

Figure 7.18: Configuration of Logic Rule 2
Figure 7.19: Configuration of Logic Rule 3
Using Local or Distributed Logic Cascade architecture, there will be no
limitation for input numbers of logic rules. And you can build any logic
architecture to meet your application requirement.
Mode: Analog
Channel: 1
Condition: >=
Value: 3.00
Mode: Analog
Channel: 1
Condition: <=
Value: 5.00
Logic Rule 2 on Module B (IP: 196.168.3.20)
Destination: 196.168.3.30 (IP of Module C)
Operation Type: AuxFlag
True Action: True
Index: 1
Mode: AuxFlag
Index: 0
Condition: True
Mode: AuxFlag
Index: 1
Condition: True
Destination: Local
Operation Type: DO
True Action: True
Channel: 0
Logic Rule 3 on Module B (IP: 196.168.3.30)
