ADAM-6000 Series User Manual 92
• How to configure Peer-to-Peer functions
As we have mentioned in section 5.3.2, when you select the IP address of
the ADAM-6000 modules you want use in Module Tree Display area,
there will be 8 tabs appearing in the Status Display area for you to set up
general configurations of that module. You can configure all Peer-to-Peer
function setting in the Peer-to-Peer/Event tab. Refer to Figure 5-20
below to see the image when you choose the Peer-to-Peer/Event tab.

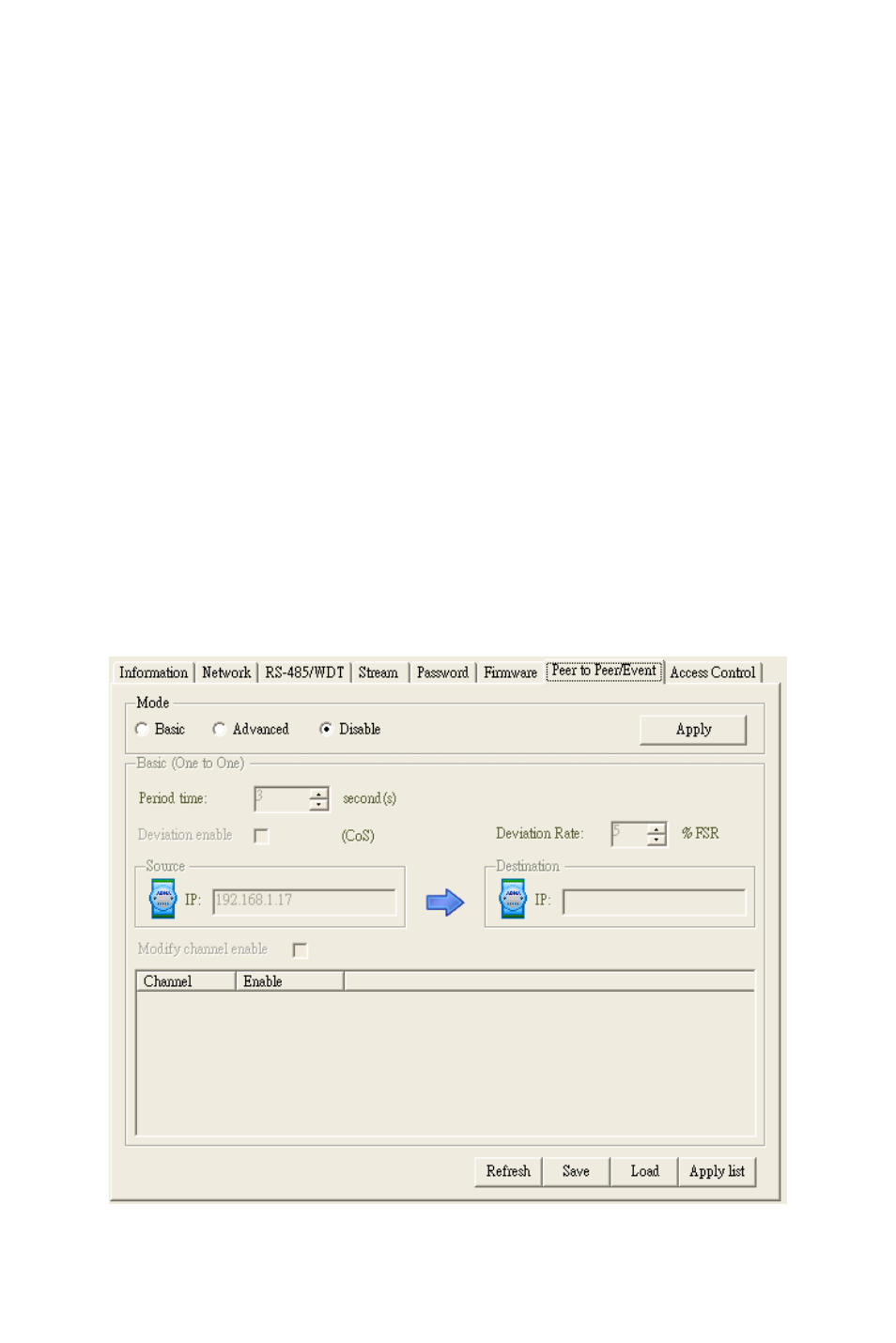

Figure 5.20: Peer-to-Peer Configuration Tab
Note: There will be uncertainty for network communication.
Sometimes there might be packet lost when event
occurs. This is the reason we Period Time function +
C.O.S. function (no C.O.S. function only). When
event occurs, even if the packet is lost, the data will be
sent again when the next period reaches. This can help
to make the system more reliable.
