Chapter 5

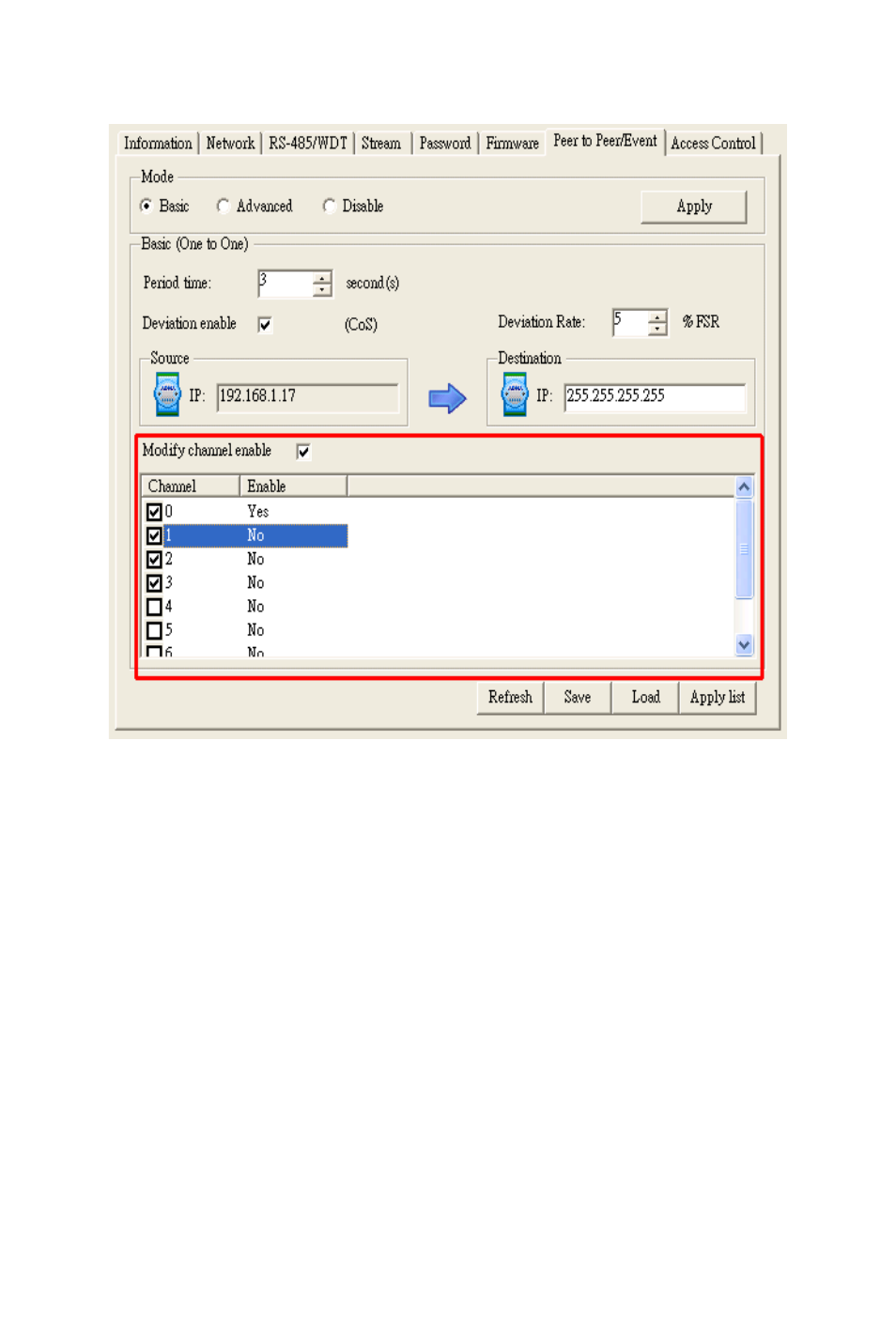

Figure 5.22: Building the Mapping Relationship

• Advanced Mode Configuration
When you choose the advanced mode, the Status Display area should
look like the Figure 5.23 below. With advanced mode, each channel on
the source ADAM-6000 module can be mapping to channel on different
target devices. You can configure the mapping relation using the two
block areas Source and Destination in the Advanced (One to Multi)
area.
